Tektronix TDS540A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 1 GS/s (all channels simultaneously), 2 GS/s (2 channels) |
| Record Length | Up to 50,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD, 640 x 480 resolution |
| Trigger Types | Edge, Glitch, Logic, Pulse Width, Slew Rate, Setup/Hold |
| Model | TDS540A |
|---|

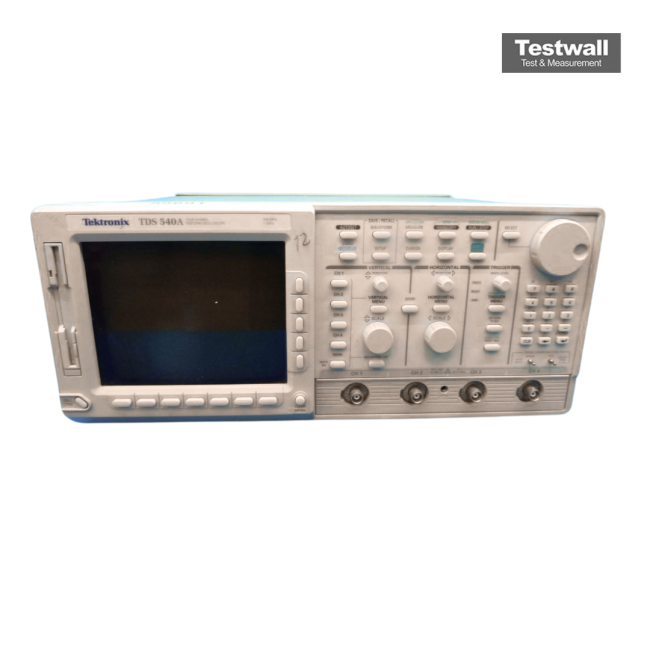

The Tektronix TDS540A is a 500 MHz, 4-channel digital oscilloscope with 1 GS/s sampling and 15 kpts memory per channel. It features advanced triggers including glitch, runt, pattern, and state, plus 25 automatic measurements and an 8-bit resolution upgradeable to 12-bit. Connectivity includes GPIB, RS232C, and Centronics, with a 3.5-inch floppy drive for output.
Ideal for general-purpose R&D and design, it supports passive and active probes with auto-scaling and unit readout. Applications include electronics, automotive, and medical diagnostics.
Testwall can supply the used Tektronix TDS540A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS540A.
