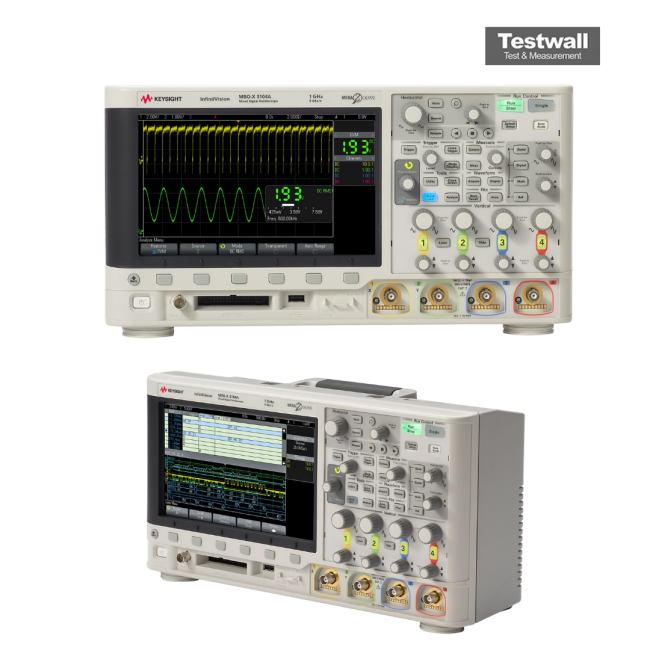

Keysight (Agilent) MSOX3104A
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts standard (up to 8 Mpts with option) |
| Display | 8.5-inch WVGA (800 x 480) color display |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Trigger Types | Edge, Pulse Width, Pattern, OR, Rise/Fall Time, Nth Edge Burst, Runt, Setup & Hold, Video, Zone, Serial (optional) |
| Serial Protocol Analysis | I2C, SPI, UART/RS-232, CAN, LIN (optional licenses) |
| Connectivity | USB Host, USB Device, LAN (LXI Core 2011), GPIB (optional) |
Keysight Technologies MSOX3104A Options:
- MSOX3104A - DSOX3MEMUP (-040) - Memory upgrade (standard 2 Mpts to optional 4 Mpts)
- MSOX3104A - DSOX3SGM (-SGM) - Segmented memory
- MSOX3104A - DSOX3MSO - MSO upgrade: add 16 digital timing channels (for 500 MHz and below models)
- MSOX3104A - DSOXPERFMSO - MSO upgrade: add 16 digital timing channels (for 1 GHz models)
- MSOX3104A - DSOX3WAVEGEN (-001) - WaveGen 20 MHz arbitrary/function generator
- MSOX3104A - DSOXDVM (-DVM) - Integrated 3-digit digital voltmeter (DVM)
- MSOX3104A - DSOX3EMBD (LSS) - Embedded serial triggering and analysis (I²C, SPI)
- MSOX3104A - DSOX3COMP (-232) - Computer serial triggering and analysis (RS232/422/485/UART)
- MSOX3104A - DSOX3AUTO (-AMS) - Automotive serial triggering and analysis (CAN/LIN)
- MSOX3104A - DSOX3FLEX (-FLX) - FlexRay serial triggering and analysis
- MSOX3104A - DSOX3AUDIO (-SND) - Audio serial triggering and analysis (I²S)
- MSOX3104A - DSOX3AERO (-AER) - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX3104A - DSOX3PWR (-PWR) - Power analysis application
- MSOX3104A - DSOX3MASK (-LMT) - Mask limit testing
- MSOX3104A - DSOX3VID (-VID) - Enhanced video/TV application package (HDTV triggering and analysis)
- MSOX3104A - DSOX3ADVMATH (-MAT) - Advanced waveform math
- MSOX3104A - DSOXEDK (-EDK) - Education and training kit
- MSOX3104A - DSOX3BW12 - 500 MHz to 1 GHz bandwidth upgrade, 2 ch, Service center
- MSOX3104A - DSOX3BW14 - 500 MHz to 1 GHz bandwidth upgrade, 4 ch, Service center
- MSOX3104A - DSOX3BW52 - 350 MHz to 500 MHz bandwidth upgrade, 2 ch, License only
- MSOX3104A - DSOX3BW54 - 350 MHz to 500 MHz bandwidth upgrade, 4 ch, License only
- MSOX3104A - DSOXLAN - LAN/VGA connection module
- MSOX3104A - DSOXGPIB - GPIB connection module
- MSOX3104A - N8900A - Infiniium Offline oscilloscope analysis software
- MSOX3104A - 64997A - Keysight spectrum visualizer software
- MSOX3104A - 89601B - Vector signal analyzer software (version 15 and higher)
- MSOX3104A - 33503A - Benchlink waveform builder pro and basic
| Model | MSOX3104A |
|---|
The Keysight (Agilent) MSOX3104A delivers unmatched value with 1 GHz bandwidth, 4 analog plus 16 digital channels, and an integrated 3-digit voltmeter and 5-digit frequency counter. It features an 8.5-inch WVGA display, up to 4 Mpts memory, and a blazing 1,000,000 wfms/s update rate, enhancing signal visibility and performance.
With upgradable options like a 20 MHz arbitrary waveform generator, serial trigger/analysis, and mask testing, this oscilloscope ensures long-term versatility and maximum investment protection.
Testwall can supply the used Keysight (Agilent) MSOX3104A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX3104A.
