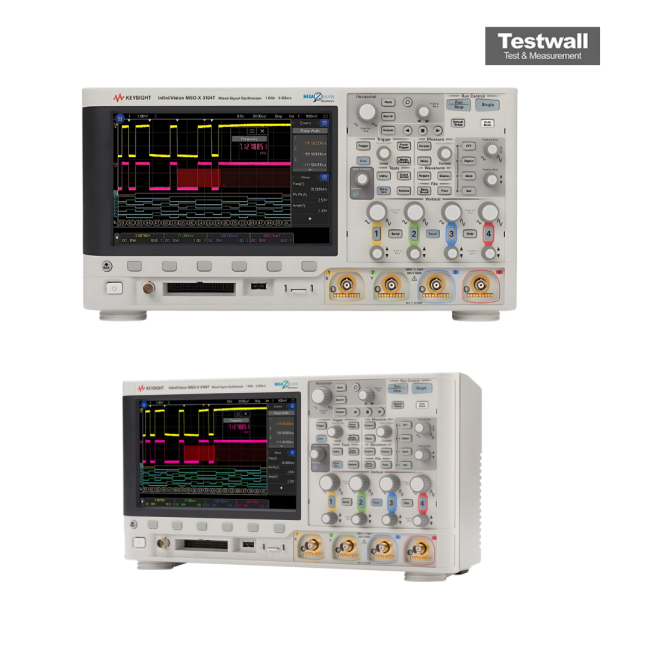

Keysight (Agilent) MSOX3104T
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts standard (up to 4 Mpts per channel) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Serial Protocol Triggering and Analysis | I2C, SPI, UART, CAN, LIN (standard); optional protocols available |
| Connectivity | USB, LAN (LXI), GPIB (optional), USB device port for PC connectivity |
Keysight Technologies MSOX3104T Options:
- MSOX3104T - DSOXT3MSO - MSO upgrade: Add 16 digital timing channels (N2756A MSO cable delivered separately)
- MSOX3104T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- MSOX3104T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX3104T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- MSOX3104T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD (CAN-FD ISO)/CAN-dbc/LIN/LIN symbolic)
- MSOX3104T - DSOXT3CXPI - CXPI serial triggering and analysis
- MSOX3104T - DSOX3FLEX - FlexRay serial triggering and analysis
- MSOX3104T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- MSOX3104T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX3104T - DSOXT3UPD - USB-PD serial triggering and analysis
- MSOX3104T - DSOXT3NRZ - User-definable Manchester/NRZ serial triggering and decode
- MSOX3104T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- MSOX3104T - DSOX3PWR - Power analysis application
- MSOX3104T - DSOXT3FRA - Frequency Response Analysis (FRA)
- MSOX3104T - DSOXT3NFC - Near field communication testing
- MSOX3104T - DSOX3MASK - Mask limit testing
- MSOX3104T - DSOX3VID - Enhanced video/TV application package
- MSOX3104T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3NFC, DSOXT3CXPI, DSOXT3NRZ, DSOXT3FRA)
- MSOX3104T - DSOXT3B5T102U - Service center 500 MHz to 1 GHz upgrade, 2 ch
- MSOX3104T - DSOXT3B5T104U - Service center 500 MHz to 1 GHz upgrade, 4 ch
- MSOX3104T - DSOXLAN - LAN/VGA connection module
- MSOX3104T - DSOXGPIB - GPIB connection module
- MSOX3104T - D/MSOX3000T-A6J - ANSI Z540-1-1994 calibration
- MSOX3104T - D/MSOX3000T-AMG - ISO17025 compliant calibration with accreditation
| Model | MSOX3104T |
|---|
The Keysight (Agilent) MSOX3104T Mixed Signal Oscilloscope delivers unmatched analysis with 1 GHz bandwidth, 4 analog and 16 digital channels, and up to 12-bit resolution in high-res mode. Enhanced MegaZoom IV smart memory provides deep waveform insight and fast signal capture. With built-in USB host/device ports and robust passive probes, the MSOX3104T ensures seamless integration and usage flexibility.
Ideal for advanced debugging and signal integrity testing, it includes parametric and serial bus search, time-correlated viewing, and a user-friendly touch interface. Perfect for comprehensive mixed-signal analysis.
Testwall can supply the used Keysight (Agilent) MSOX3104T, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX3104T.
