Keysight (Agilent) MSOX4032A
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Analog Channels | 2 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts (standard), up to 16 Mpts (optional) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Serial Protocol Triggering and Decode | I2C, SPI, UART/RS232, CAN, LIN (optional) |
| Connectivity | USB, LAN (LXI Core), GPIB (optional) |
| Segmented Memory | Yes, up to 1,000 segments |
Keysight (Agilent) MSOX4032A Options:
- MSOX4032A - DSOX4EMBD - Embedded serial triggering and decode (I²C, SPI)
- MSOX4032A - DSOX4COMP - Computer serial triggering and decode (RS232/UART)
- MSOX4032A - DSOX4USBFL - USB 2.0 Full/Low Speed serial triggering and decode
- MSOX4032A - DSOX4USBH - USB 2.0 Hi-Speed serial triggering and decode (1 GHz and 1.5 GHz models only)
- MSOX4032A - DSOX4AUTO - Automotive serial triggering and decode (CAN/CAN-dbc/LIN)
- MSOX4032A - DSOX4FLEX - FlexRay serial triggering and decode
- MSOX4032A - DSOX4AUDIO - Audio serial triggering and decode (I²S)
- MSOX4032A - DSOX4AERO - Aerospace and defence serial triggering and decode (MIL-STD 1553, ARINC 429)
- MSOX4032A - DSOX4WAVEGEN2 - Dual-channel WaveGen 20 MHz arbitrary/function generator
- MSOX4032A - DSOXDVM - 3-digit voltmeter (DVM)
- MSOX4032A - DSOX4PWR - Power analysis application
- MSOX4032A - DSOX4MASK - Mask limit testing
- MSOX4032A - DSOX4VID - Enhanced video/TV application package
- MSOX4032A - DSOX4FPGAX - FPGA dynamic probe option for Xilinx
- MSOX4032A - DSOX4USBSQ - USB 2.0 signal quality test option
- MSOX4032A - DSOXEDK - Education training kit
- MSOX4032A - DSOXPERFMSO - 4000 X-Series oscilloscope MSO upgrade
- MSOX4032A - DSOX4B3T52U - Bandwidth upgrade 350 MHz to 500 MHz, 2 ch (License Only)
- MSOX4032A - DSOX4B2T32U - Bandwidth upgrade 200 MHz to 350 MHz, 2 ch (Service Center)
- MSOX4032A - DSOX4B2T52U - Bandwidth upgrade 200 MHz to 500 MHz, 2 ch (Service Center)
- MSOX4032A - DSOX4B2T104U - Bandwidth upgrade 200 MHz to 1 GHz, 4 ch (Service Center)
- MSOX4032A - DSOX4B2T154U - Bandwidth upgrade 200 MHz to 1.5 GHz, 4 ch (Service Center)
- MSOX4032A - DSOX4B3T104U - Bandwidth upgrade 350 MHz to 1 GHz, 4 ch (Service Center)
- MSOX4032A - DSOX4B3T154U - Bandwidth upgrade 350 MHz to 1.5 GHz, 4 ch (Service Center)
- MSOX4032A - DSOX4B5T154U - Bandwidth upgrade 500 MHz to 1.5 GHz, 4 ch (Service Center)
- MSOX4032A - N8900A - Infiniium Offline oscilloscope analysis software
- MSOX4032A - 64997A - Keysight spectrum visualizer (KSV)
- MSOX4032A - 89601B - Vector signal analyzer software (version 16 and higher)
- MSOX4032A - 33503A - BenchLink waveform builder pro and basic
| Model | MSOX4032A |
|---|

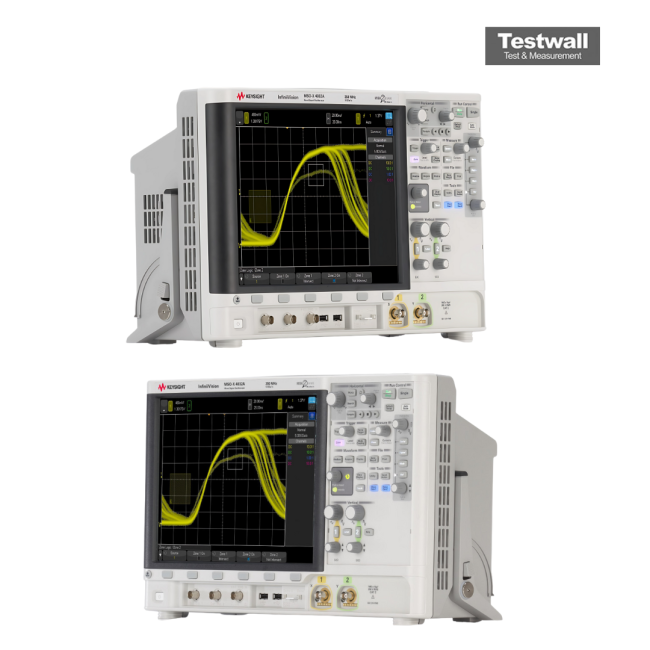

The Keysight (Agilent) MSOX4032A oscilloscope features 350 MHz bandwidth, 2 analog and 16 digital channels, and a 12.1-inch capacitive touch screen with InfiniiScan Zone touch triggering. It delivers an exceptional 1,000,000 wfms/s update rate with MegaZoom IV smart memory technology, ensuring maximum signal visibility and segmentation. It also supports full upgradability, segmented memory, 4 Mpts deep capture, and advanced analysis options.
Engineered to visualize complex signals, the MSOX4032A simplifies debugging with enhanced triggering, signal isolation, and multilingual interface. Bundled with probes, MSO cable, and documentation for immediate use.
Testwall can supply the used Keysight (Agilent) MSOX4032A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX4032A.
