Keysight (Agilent) MSOX4104A
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts standard (up to 16 Mpts with option) |
| Display | 12.1-inch WXGA capacitive touch screen display |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Timebase Range | 1 ns/div to 200 s/div |
| Connectivity | USB, LAN (LXI Core), GPIB (optional) |
Keysight Technologies MSOX4104A Options:
- MSOX4104A - DSOX4EMBD - Embedded serial triggering and analysis (I²C, SPI)
- MSOX4104A - DSOX4COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX4104A - DSOX4USBFL - USB 2.0 Full/Low Speed serial triggering and decode
- MSOX4104A - DSOX4USBH - USB 2.0 Hi-Speed serial triggering and decode
- MSOX4104A - DSOX4AUTO - Automotive serial triggering and analysis (CAN/LIN)
- MSOX4104A - DSOX4FLEX - FlexRay serial triggering and analysis
- MSOX4104A - DSOX4AUDIO - Audio serial triggering and analysis (I²S)
- MSOX4104A - DSOX4AERO - Aerospace and defence serial triggering and decode (MIL-STD 1553 and ARINC 429)
- MSOX4104A - DSOX4WAVEGEN2 - Dual-channel WaveGen 20 MHz arbitrary/function generator
- MSOX4104A - DSOXDVM - 3-digit voltmeter (DVM)
- MSOX4104A - DSOX4PWR - Power analysis application
- MSOX4104A - DSOX4MASK - Mask limit testing
- MSOX4104A - DSOX4VID - Enhanced video/TV application package
- MSOX4104A - DSOX4FPGAX - FPGA dynamic probe option for Xilinx
- MSOX4104A - DSOXEDK - Education and training kit
- MSOX4104A - DSOX4B1T154U - Bandwidth upgrade 1 GHz to 1.5 GHz, 4 ch (Service Center)
- MSOX4104A - N8900A - InfiniiView oscilloscope analysis software
- MSOX4104A - 64997A - Agilent spectrum visualizer (ASV) software
- MSOX4104A - 89601B - Vector signal analyzer software (version 16 and higher)
- MSOX4104A - 33503A - BenchLink waveform builder pro and basic
| Model | MSOX4104A |
|---|

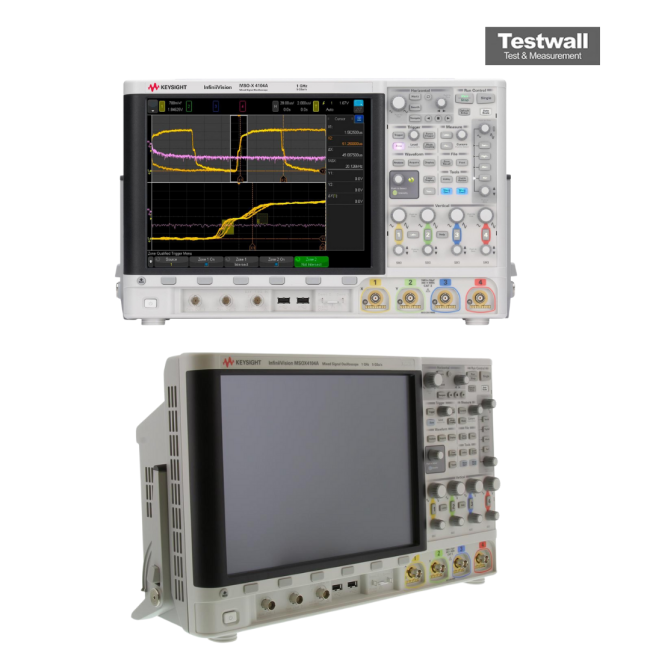

The Keysight (Agilent) MSOX4104A Oscilloscope offers unmatched performance with a 1 GHz bandwidth, 4 analog plus 16 digital channels, and a blazing-fast 1,000,000 wfms/s update rate. The 12.1-inch capacitive touch screen and InfiniiScan Zone touch triggering simplify signal analysis and isolation. Advanced features include 4 Mpts memory, standard segmented memory, and full upgradability for maximum versatility.
This oscilloscope is ideal for debugging elusive anomalies with MegaZoom IV smart memory and segmented capture. It includes localized software, N2894A passive probes, MSO cable, and more for robust signal diagnostics.
Testwall can supply the used Keysight (Agilent) MSOX4104A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX4104A.
