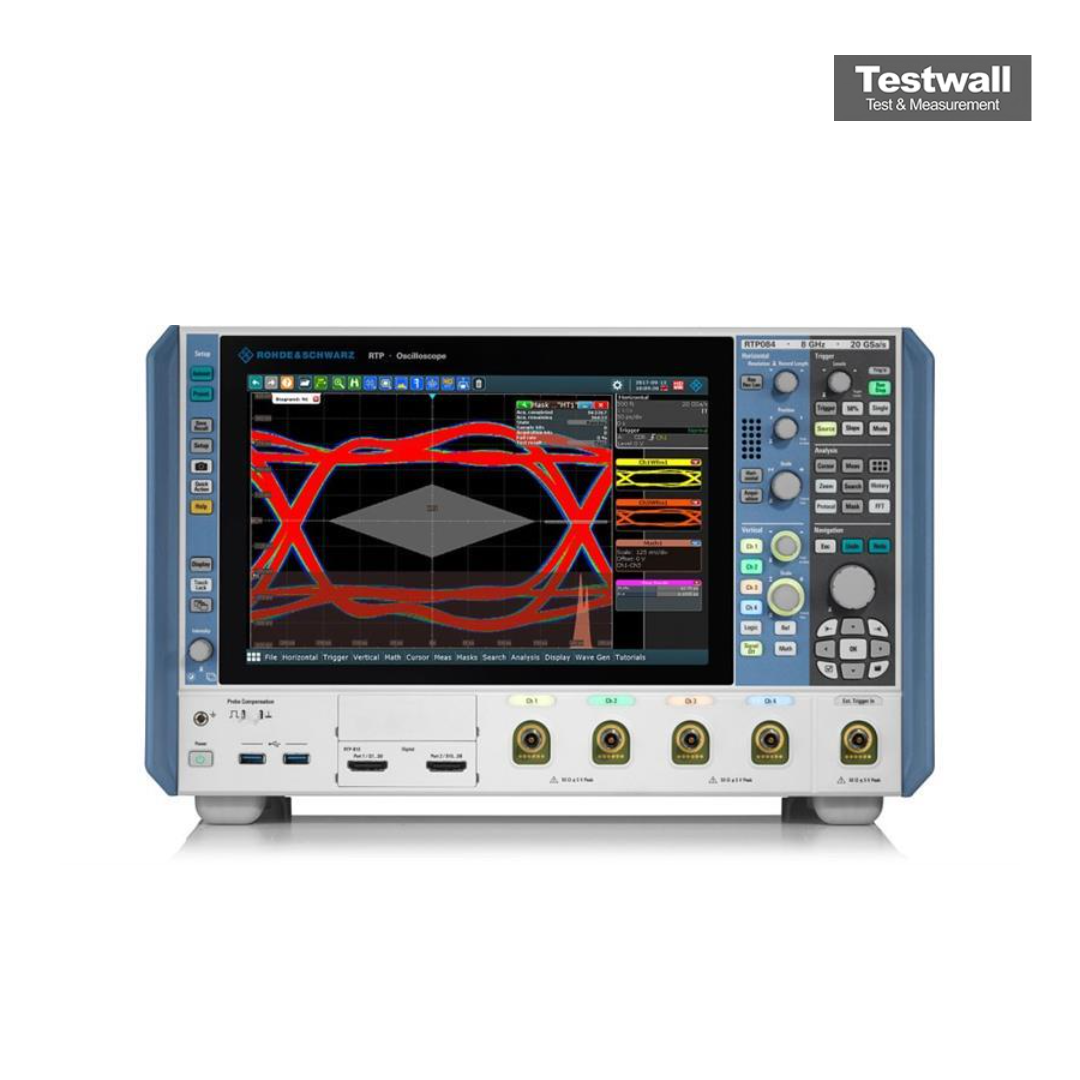

Rohde & Schwarz RTP134
| Attribute | Value |
|---|---|
| Bandwidth | 13 GHz (2 channels) / 8 GHz (4 channels) |
| Number of Channels | 2/4 channels |
| Sample Rate | Up to 40 GS/s |
| Memory Depth | 50 Mpoints/ch (up to 2 Gpoints optional) |
| Vertical Resolution | 8-bit (up to 16-bit in HD mode) |
| Sample Rate (detail) | 40 GS/s on 2 channels, 20 GS/s on 4 channels |
| Waveform Update Rate | Up to 750,000 waveforms per second |
| Input Impedance | 50 Ω |
| Digital Channels | 16 with MSO option RTP-B1 |
| Display | 12.1-inch capacitive touchscreen, 1280 x 800 |
| Connectivity | LAN, USB, GPIB, DisplayPort/DVI |
| Series | Rohde & Schwarz RTP (first generation) |
Rohde & Schwarz RTP134 Options:
- RTP134 - RTP-B1 - Mixed signal option, 16 digital channels
- RTP134 - RTP-B7 - Pulse source for deskew and TDR/TDT
- RTP134 - Memory options - Memory upgrades up to 2 Gpoints per channel
The Rohde & Schwarz RTP134 is a 13 GHz model of the first-generation RTP high-performance oscilloscope. It offers 13 GHz on two channels at 40 GS/s, or 8 GHz on all four channels at 20 GS/s, with 8-bit resolution (up to 16-bit in HD mode) and up to 750,000 waveforms per second.
The RTP combines a high-bandwidth real-time acquisition system with R&S's real-time digital trigger, hardware-accelerated de-embedding and fast acquisition rate, making it suitable for signal integrity, high-speed serial bus and RF/pulse measurements. Bandwidth can be upgraded within the RTP family. Tell us the bandwidth, memory and options you need when you request a quote.
This listing is for the first-generation RTP. The updated RTP134B, with a 13.3-inch Full HD display and 100 Mpoints standard memory, is listed separately.
Testwall can supply the used Rohde & Schwarz RTP134, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Rohde & Schwarz RTP134.
