Keysight (Agilent) MSOX4154A
| Attribute | Value |
|---|---|
| Bandwidth | 1.5 GHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts (standard), up to 16 Mpts (optional) |
| Display | 12.1-inch WXGA (1280 x 800) capacitive touch screen |
| Vertical Resolution | 8-bit (up to 12-bit in high-resolution mode) |
| Rise Time | 233 ps |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Serial Protocol Triggering and Decode | Supports I2C, SPI, UART/RS232, CAN, LIN, and more (with optional licenses) |
Keysight Technologies MSOX4154A Options:
- MSOX4154A - DSOX4APPBNDL - Enables all software applications (including serial decode and WaveGen)
- MSOX4154A - DSOX4EMBD - Embedded serial triggering and decode (I²C, SPI)
- MSOX4154A - DSOX4COMP - Computer serial triggering and decode (RS232/UART)
- MSOX4154A - DSOX4USBFL - USB 2.0 Full/Low Speed serial triggering and decode
- MSOX4154A - DSOX4USBH - USB 2.0 Hi-Speed serial triggering and decode
- MSOX4154A - DSOX4AUTO - Automotive serial triggering and decode CAN/CAN-FD/CAN-dbc/LIN/LIN symbolic
- MSOX4154A - DSOX4FLEX - FlexRay serial triggering and decode
- MSOX4154A - DSOX4SENSOR - Single edge nibble transmission triggering and decode (SENT)
- MSOX4154A - DSOX4CXPI - CXPI serial triggering and decode
- MSOX4154A - DSOX4AUDIO - Audio serial triggering and decode (I²S)
- MSOX4154A - DSOX4AERO - Aerospace and defence serial triggering and decode (MIL-STD 1553, ARINC 429)
- MSOX4154A - DSOX4NRZ - User-definable Manchester/NRZ triggering and decode
- MSOX4154A - DSOX4UPD - USB PD serial triggering and decode
- MSOX4154A - DSOX4WAVEGEN2 - Dual-channel WaveGen 20 MHz arbitrary/function generator
- MSOX4154A - DSOX4PWR - Power analysis application
- MSOX4154A - DSOX4FRA - Frequency Response Analysis (FRA)
- MSOX4154A - DSOX4MASK - Mask limit testing
- MSOX4154A - DSOX4VID - Enhanced video/TV application package
- MSOX4154A - DSOX4USBSQ - USB 2.0 signal quality test option
- MSOX4154A - DSOX4NFC - NFC trigger and automated test software
- MSOX4154A - DSOXPERFMSO - 4000 X-Series oscilloscope MSO upgrade
- MSOX4154A - DSOX4B5T154U - 500 MHz to 1.5 GHz bandwidth upgrade, 4 ch (Service center)
- MSOX4154A - DSOX4B1T154U - 1 GHz to 1.5 GHz bandwidth upgrade, 4 ch (Service center)
- MSOX4154A - N8900A - Infiniium Offline oscilloscope analysis software
- MSOX4154A - N5467B/C - User-definable Application (UDA) PC-based test automation software
- MSOX4154A - BV0004B - BenchVue Software
- MSOX4154A - D/MSOX4000-A6J - ANSI Z540-1-1994 calibration
- MSOX4154A - D/MSOX4000-AMG - Calibration + Uncertainties + Guardbanding (Accredited)
| Model | MSOX4154A |
|---|

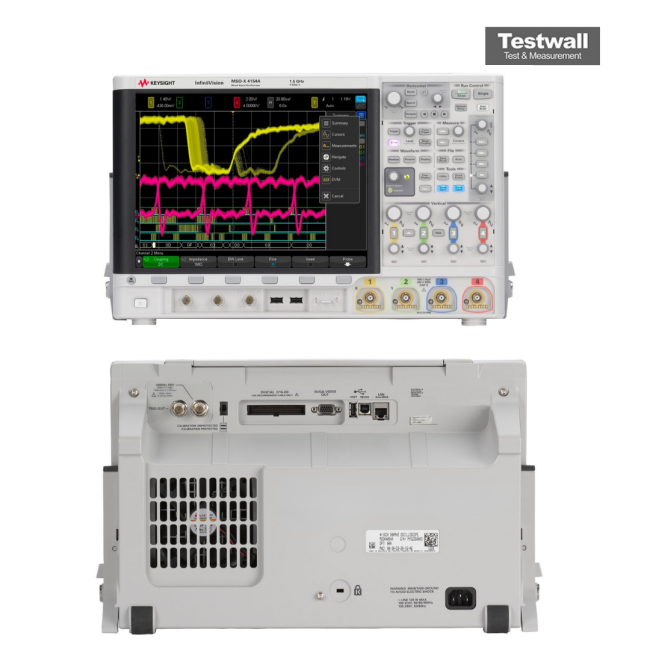

The Keysight (Agilent) MSOX4154A Oscilloscope features a 1.5 GHz bandwidth with 4 analog and 16 digital channels, a 12.1-inch capacitive touch screen, and hardware-based InfiniiScan Zone triggering. It delivers 1,000,000 wfms/s update rate and includes 4 Mpts segmented memory with upgradable 5-in-1 instruments.
Ideal for identifying anomalies, the MSOX4154A excels in waveform visibility with MegaZoom IV technology and supports optional additions like dual-channel WaveGen, DVM, and serial analysis.
Testwall can supply the used Keysight (Agilent) MSOX4154A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX4154A.
