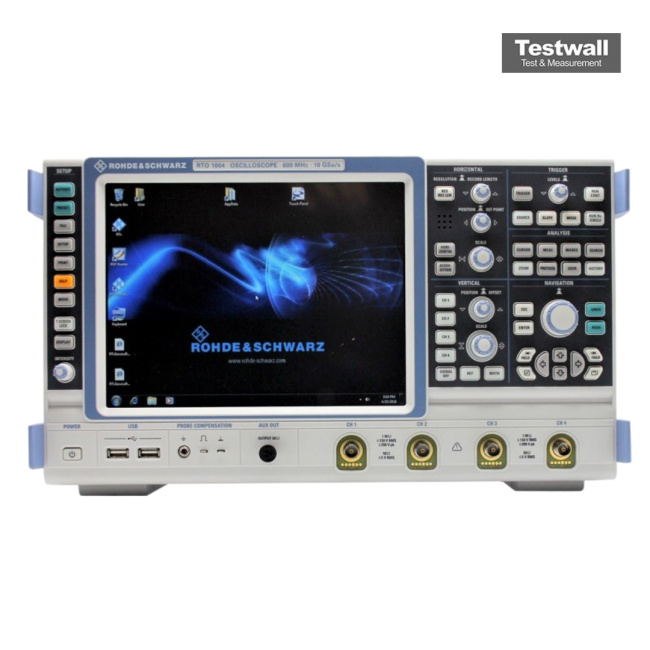

Rohde & Schwarz RTO1004 4 Ch 600 MHz Digital Oscilloscope
4 Ch 600 MHz Digital Oscilloscope
4 Number of Channels
600 MHz Bandwidth
5 Gsample/s (single channel), 2.5 Gsample/s (all channels) Sample Rate
20 Msample/channel (standard), up to 200 Msample/channel (optional) Memory Depth
8-bit ADC (up to 16-bit with hardware averaging) Vertical Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 600 MHz |
| Sample Rate | 5 Gsample/s (single channel), 2.5 Gsample/s (all channels) |
| Memory Depth | 20 Msample/channel (standard), up to 200 Msample/channel (optional) |
| Vertical Resolution | 8-bit ADC (up to 16-bit with hardware averaging) |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 25 ps/div to 10,000 s/div |
| Input Impedance | 1 MΩ / 50 Ω (switchable) |
| Display | 10.4-inch XGA color touchscreen display (1024 x 768 resolution) |
| Trigger Types | Edge, Glitch, Width, Runt, Slew Rate, Window, Timeout, Pattern, Serial Bus Triggers |
| Model | RTO1004 |
|---|
The Rohde & Schwarz RTO1004 Oscilloscope features a 600 MHz bandwidth, 4 analog channels, and 10 GS/s sample rate, supported by advanced real-time digital triggering and hardware-accelerated measurements for deep signal insight.
It includes MSO capabilities, integrated serial decode, up to 80 MSa memory per channel, low noise, and intuitive operation for efficient signal fault analysis.
Testwall can supply the used ROHDE & SCHWARZ RTO1004, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the ROHDE & SCHWARZ RTO1004.
