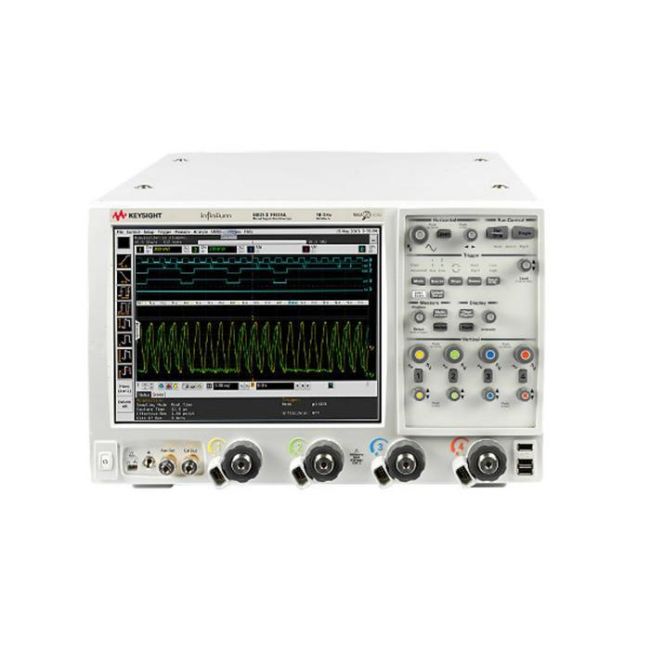

Keysight (Agilent) MSOX92804A
High Performance Oscilloscope: 28 GHz, 4 Analog Channels and 16 Digital Channels
28 GHz Bandwidth
4 Number of Analog Channels
16 Number of Digital Channels
80 GSa/s Maximum Sample Rate
2 Gpts (standard), up to 4 Gpts (optional) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 28 GHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 80 GSa/s |
| Memory Depth | 2 Gpts (standard), up to 4 Gpts (optional) |
| Vertical Resolution | 8-bit (up to 10-bit in high resolution mode) |
| Display | 15-inch color capacitive touchscreen display |
| Waveform Update Rate | Up to 450,000 waveforms per second |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
| Operating System | Windows 10 |
Keysight (Agilent) MSOX92804A Options:
- MSOX92804A - 050 - 50 Mpts/ch memory
- MSOX92804A - 100 - 100 Mpts/ch memory
- MSOX92804A - 200 - 200 Mpts/ch memory
- MSOX92804A - 500 - 500 Mpts/ch memory
- MSOX92804A - 01G - 1 Gpts/ch memory
- MSOX92804A - 02G - 2 Gpts/ch memory
- MSOX92804A - A6J - ANSI Z540 Compliant calibration
- MSOX92804A - 1A7 - ISO17025 calibration
- MSOX92804A - 820 - DVD RW
- MSOX92804A - 805 - GPIB card-interface
- MSOX92804A - 823 - PCI Express card-interface
- MSOX92804A - 808 - Performance verification de-skew fixture
- MSOX92804A - 1CM - Rack mount kit option
- MSOX92804A - 801 - Removable solid state drive with Windows 7
- MSOX92804A - 001 - PrecisionProbe software
- MSOX92804A - 063 - CAN/FlexRay decode
- MSOX92804A - 002 - EZJIT jitter analysis software
- MSOX92804A - 004 - EZJIT Plus jitter analysis software
- MSOX92804A - 070 - EZJIT Complete analysis software
- MSOX92804A - 003 - High-Speed SDA and clock recovery
- MSOX92804A - 007 - I2C/SPI Decode
- MSOX92804A - 009 - InfiniiScan software triggering
- MSOX92804A - 013 - InfiniiSim basic signal de-embedding
- MSOX92804A - 014 - InfiniiSim advanced signal de-embedding
- MSOX92804A - 012 - Serial data equalization
- MSOX92804A - 061 - MATLAB - Basic digital analysis package
- MSOX92804A - 062 - MATLAB - Standard digital analysis package
- MSOX92804A - 046 - 64b/66b 10Gbase-KR Ethernet Decode
- MSOX92804A - 019 - MIPI D-PHY protocol
- MSOX92804A - 017 - PCI-Express protocol
- MSOX92804A - 015 - RS-232/UART decode
- MSOX92804A - 018 - SATA/SAS protocol
- MSOX92804A - 016 - USB protocol
- MSOX92804A - 010 - User-defined function
- MSOX92804A - 031 - DDR1 and LPDDR compliance
- MSOX92804A - 033 - DDR2 and LPDDR2 compliance
- MSOX92804A - 032 - DDR3 and LPDDR3 compliance
- MSOX92804A - 028 - DisplayPort compliance application
- MSOX92804A - 023 - HDMI 2.0 compliance application
- MSOX92804A - 035 - MIPI D-PHY compliance application
- MSOX92804A - 027 - SAS compliance application
- MSOX92804A - 038 - SATA 6Gb/s compliance
- MSOX92804A - 041 - USB 3.0 compliance software
- MSOX92804A - 040 - User-defined application
- MSOX92804A - 036 - 10GBASE-T Ethernet automated test application
- MSOX92804A - 004 - PCI Express compliance test software for PCIe 1.0/2.0/3.0
- MSOX92804A - 065 - BroadR-Reach compliance
- MSOX92804A - 073 - MOST compliance
| Model | MSOX92804A |
|---|
The Keysight (Agilent) MSOX92804A oscilloscope delivers 28 GHz analog bandwidth with 4 analog and 16 digital channels, ensuring superior real-time signal capture and analysis.
It supports 80 GSa/s sampling rate, integrated logic analysis, and comprehensive testing for high-speed serial protocols.
Testwall can supply the used MSOX92804A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the MSOX92804A.
