Tektronix

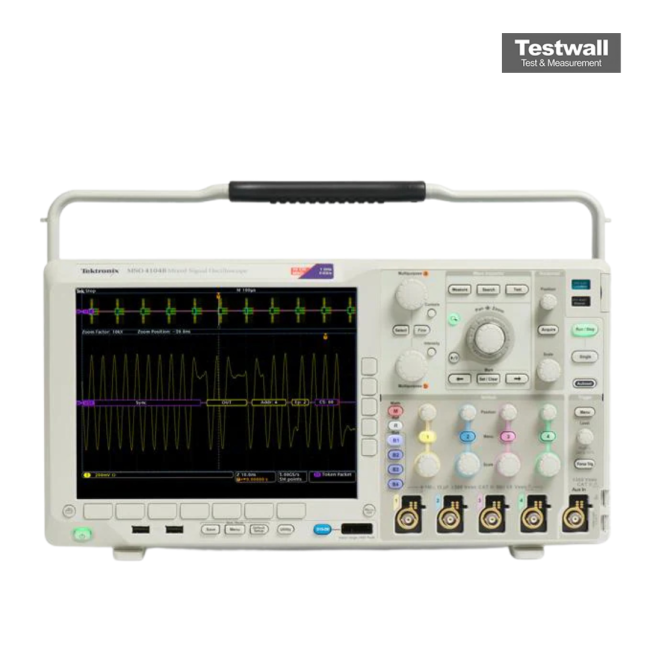

Tektronix MSO4102B-L
1 GHz, 2 Analog Channels, and16 Digital Channels Oscilloscope
1 GHz Bandwidth
2 Analog Channels + 16 Digital Channels (Mixed Signal) Channels
5 GS/s Sample Rate
20 M points standard (with -L option: 250 M points) Record Length
8-bit (11-bit with Hi Res mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Channels | 2 Analog Channels + 16 Digital Channels (Mixed Signal) |
| Sample Rate | 5 GS/s |
| Record Length | 20 M points standard (with -L option: 250 M points) |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Display | 10.4-inch WVGA (800 x 480) color display |
| Waveform Capture Rate | Up to 340,000 waveforms per second |
| Triggering | Advanced triggering including edge, pulse width, runt, logic, setup/hold, rise/fall time, parallel bus, and serial bus triggers |
| Serial Bus Analysis | Supports I2C, SPI, RS-232/422/485/UART, CAN, LIN, USB, and more (with optional licenses) |
| Connectivity | USB 2.0 Host and Device ports, LAN (Ethernet), CompactFlash card slot |
Tektronix MSO4102B-L Options:
- MSO4102B-L - A0 - North America power plug (115 V, 60 Hz)
- MSO4102B-L - A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO4102B-L - A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO4102B-L - A3 - Australia power plug (240 V, 50 Hz)
- MSO4102B-L - A5 - Switzerland power plug (220 V, 50 Hz)
- MSO4102B-L - A6 - Japan power plug (100 V, 50/60 Hz)
- MSO4102B-L - A10 - China power plug (50 Hz)
- MSO4102B-L - A11 - India power plug (50 Hz)
- MSO4102B-L - A12 - Brazil power plug (60 Hz)
- MSO4102B-L - A99 - No power cord
- MSO4102B-L - L0 - English manual
- MSO4102B-L - L1 - French manual
- MSO4102B-L - L2 - Italian manual
- MSO4102B-L - L3 - German manual
- MSO4102B-L - L4 - Spanish manual
- MSO4102B-L - L5 - Japanese manual
- MSO4102B-L - L6 - Portuguese manual
- MSO4102B-L - L7 - Simplified Chinese manual
- MSO4102B-L - L8 - Traditional Chinese manual
- MSO4102B-L - L9 - Korean manual
- MSO4102B-L - L10 - Russian manual
- MSO4102B-L - L99 - No manual
- MSO4102B-L - C3 - Calibration Service 3 Years
- MSO4102B-L - C5 - Calibration Service 5 Years
- MSO4102B-L - D1 - Calibration Data Report
- MSO4102B-L - D3 - Calibration Data Report 3 Years (with Opt. C3)
- MSO4102B-L - D5 - Calibration Data Report 5 Years (with Opt. C5)
- MSO4102B-L - R5 - Repair Service 5 Years (including warranty)
- MSO4102B-L - SILV600 - Standard warranty extended to 5 years
- MSO4102B-L - DPO4BND - Application bundle module enabling all functionality of DPO4AERO, DPO4AUDIO, DPO4AUTO, DPO4COMP, DPO4EMBD, DPO4ENET, DPO4LMT, DPO4PWR, DPO4USB and DPO4VID application modules
- MSO4102B-L - DPO4AERO - Aerospace Serial Triggering and Analysis Module (MIL-STD-1553)
- MSO4102B-L - DPO4AUDIO - Audio Serial Triggering and Analysis Module (I2S, LJ, RJ, TDM)
- MSO4102B-L - DPO4AUTO - Automotive Serial Triggering and Analysis Module (CAN, LIN)
- MSO4102B-L - DPO4AUTOMAX - Extended Automotive Serial Triggering and Analysis Module (CAN, LIN, FlexRay)
- MSO4102B-L - DPO4COMP - Computer Serial Triggering and Analysis Module (RS-232/422/485/UART)
- MSO4102B-L - DPO4EMBD - Embedded Serial Triggering and Analysis Module (I2C, SPI)
- MSO4102B-L - DPO4ENET - Ethernet Serial Triggering and Analysis Module (10BASE-T, 100BASE-TX)
- MSO4102B-L - DPO4USB - USB Serial Triggering and Analysis Module (low-speed, full-speed, high-speed)
- MSO4102B-L - DPO4PWR - Power Analysis Application Module
- MSO4102B-L - DPO4LMT - Limit and Mask Testing Application Module
- MSO4102B-L - DPO4VID - HDTV and Custom (nonstandard) Video Triggering and Video Picture Module
| Model | MSO4102B-L |
|---|
The Tektronix MSO4102B-L features 2 analog and 16 digital channels with 1 GHz bandwidth, 5 GS/s sample rate, and 20M record length. Ideal for high-speed mixed signal testing with over 340,000 wfm/s capture rate.
Includes Wave Inspector®, 42 automated measurements, serial protocol decoding, and MagniVu™ fine timing resolution for precise signal debugging in a compact 5.8” deep package.
Testwall can supply the used Tektronix MSO4102B-L, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO4102B-L.
