Keysight (Agilent)

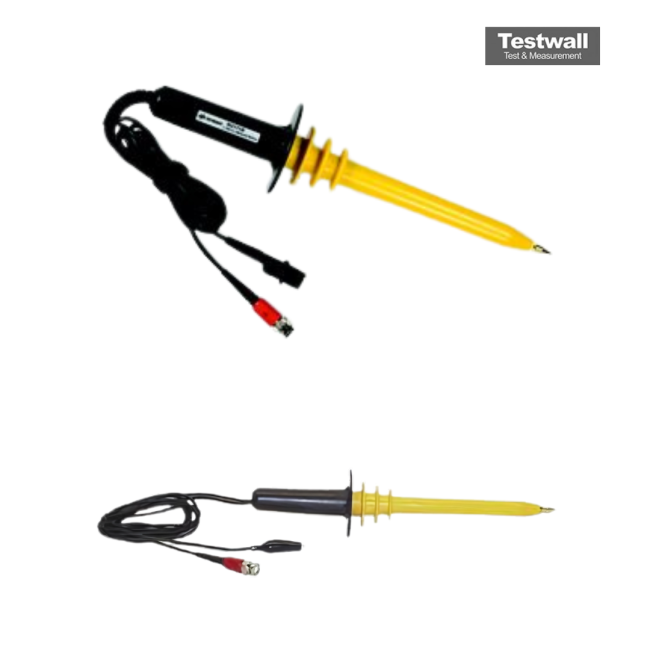

Keysight (Agilent) N2771A
1000:1 divider Probe
30 MHz Bandwidth
1000 V CAT II / 600 V CAT III Maximum Input Voltage
1000:1 Attenuation Ratio
≤ 11.7 ns Rise Time
10 MΩ Input Resistance
| Attribute | Value |
|---|---|
| Bandwidth | 30 MHz |
| Maximum Input Voltage | 1000 V CAT II / 600 V CAT III |
| Attenuation Ratio | 1000:1 |
| Rise Time | ≤ 11.7 ns |
| Input Resistance | 10 MΩ |
| Input Capacitance | ≤ 3.5 pF |
| Cable Length | 1.5 m (4.9 ft) |
| Compensation Range | 8 pF to 18 pF |
| Compatible Oscilloscopes | Keysight InfiniiVision and Infiniium series oscilloscopes |
| Probe Type | High Voltage Passive Probe |
Keysight (Agilent) N2771A Options:
- N2771A - N2774A - 50 MHz current probe with N2775A power supply (also requires E2697A 1 MΩ input adapter)
- N2771A - E2697A - 1 MΩ input adapter (includes one 10073C general-purpose 500 MHz, 10:1 passive probe)
- N2771A - N5383A - System software upgrade for 54830 Series (required for A.02.xx or lower)
| Model | N2771A |
|---|
The Keysight (Agilent) N2771A is a 10:1 passive probe offering a 300 MHz bandwidth, ideal for high-frequency and general-purpose oscilloscope measurements, ensuring accurate signal representation.
Its compatibility with a wide range of oscilloscopes and precise attenuation makes it a reliable accessory for signal probing across electronics testing setups.
Testwall can supply the used Keysight (Agilent) N2771A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N2771A.
