Keysight (Agilent) N3304A
| Attribute | Value |
|---|---|
| Maximum Voltage | 60 V |
| Maximum Current | 60 A |
| Maximum Power | 300 W |
| Input Voltage Range | 0 to 60 V |
| Input Current Range | 0 to 60 A |
| Number of Channels | 1 |
| Form Factor | Plug-in module for Keysight N3300A series mainframe |
| Operating Mode | Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), Constant Power (CP) |
| Minimum Input Voltage for Full Current | 3 V |
| Compatible Mainframe | Keysight N3300A Electronic Load Mainframe |
Keysight Technologies N3304A Options:
- N3304A - UJ1 - 8 mm screw terminal connector
- N3304A - 908 - Rack-mount kit (Two p/n 5062-3974 for a N3300A, or p/n 5062-3960 for one N3301A). For the N3301A, the kit includes a blank filler panel.
- N3304A - 909 - Rack-mount kit with handles for N3300A (Two p/n 5062-3975)
- N3304A - 910 - Extra manual set, including one each of the operating manual, programming reference manual, and service manual
| Model | N3304A |
|---|

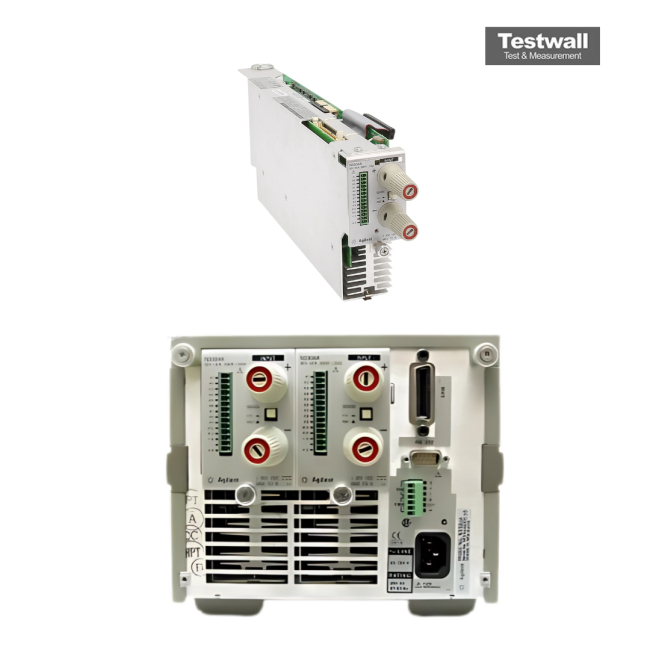

The Keysight (Agilent) N3304A is a 300 W electronic load module (0–60A, 0–60V), compatible with N3300A and N3301A mainframes. It supports constant current, voltage, and resistance modes and enables precise measurements of voltage, current, and power. The N3304A also features waveform digitization and a 16-bit measurement system.
Ideal for ATE systems, it enables flexible multi-channel testing of power supplies, DC-DC converters, and batteries. Expandable with additional modules to support simultaneous source testing.
Testwall can supply the used Keysight (Agilent) N3304A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N3304A.
