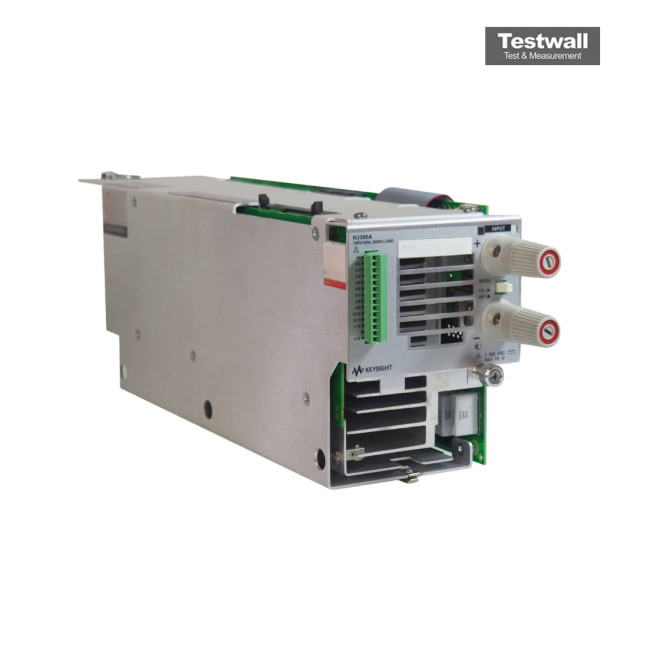

Keysight (Agilent) N3305A
| Attribute | Value |
|---|---|
| Voltage Range | 0 to 60 V |
| Current Range | 0 to 60 A |
| Power Rating | 300 W |
| Module Type | Electronic Load Module |
| Compatible Mainframe | Keysight N3300A Series Mainframes |
| Operating Modes | Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), Constant Power (CP) |
| Minimum Operating Voltage | 3 V at Full Current |
| Transient Response | Up to 25 kHz Switching Rate |
| Measurement Functions | Voltage and Current Measurement Capability |
| Form Factor | Single-Wide Plug-In Module |
Keysight Technologies N3305A Options:
- N3305A - UJ1 - 8 mm screw terminal connector
- N3305A - 800 - Rack-mount kit for two N3301A Mainframes mounted side-by-side (p/n 5061-9694 and 5062-3978)
- N3305A - 908 - Rack-mount kit (Two p/n 5062-3974 for a N3300A, or p/n 5062-3960 for one N3301A). For the N3301A, the kit includes a blank filler panel.
- N3305A - 909 - Rack-mount kit with handles for N3300A (Two p/n 5062-3975)
- N3305A - 910 - Extra manual set, including one each of the operating manual, programming reference manual, and service manual
| Model | N3305A |
|---|
The Keysight (Agilent) N3305A is a 500 W electronic load module (0–60A, 0–150V), compatible with N3300A/N3301A mainframes. It enables precise control in constant current, voltage, or resistance modes with integrated measurement capabilities.
Ideal for testing multiple-output DC power supplies or DC-DC converters, the N3305A provides simultaneous measurement and fast, accurate performance, supporting high-volume power supply test systems with a single GPIB address.
Testwall can supply the used Keysight (Agilent) N3305A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N3305A.
