Keysight (Agilent) N4692A
| Attribute | Value |
|---|---|
| Frequency Range | 0.01 MHz to 67 GHz |
| Connector Type | 1.85 mm (V-connector) |
| Number of Ports | 2-Port |
| Insertion Loss | Less than 1.5 dB typical at 67 GHz |
| Return Loss | Greater than 20 dB typical up to 67 GHz |
| Maximum Input Power | +27 dBm |
| Device Type | Electronic Calibration Module (ECal) |
| Compatible Instruments | Keysight PNA, PNA-X, and PNA-L Series Vector Network Analyzers |
| Interface | USB |
| Operating Temperature | 0°C to 55°C |
Keysight Technologies N4692A Options:
- N4692A - 00A - Adds male-to-male and female-to-female adapters
- N4692A - 00F - Replace f-m connectors on ECal module(s) with f-f connectors
- N4692A - 00M - Replace f-m connectors on ECal module(s) with m-m connectors
- N4692A - UK6 - Commercial calibration certificate with measured data
- N4692A - 1A7 - ISO 17025 compliant calibration
- N4692A - A6J - ANSI Z540 compliant calibration
- N4692A - M0F - f-m connectors on ECal module(s)
| Model | N4692A |
|---|

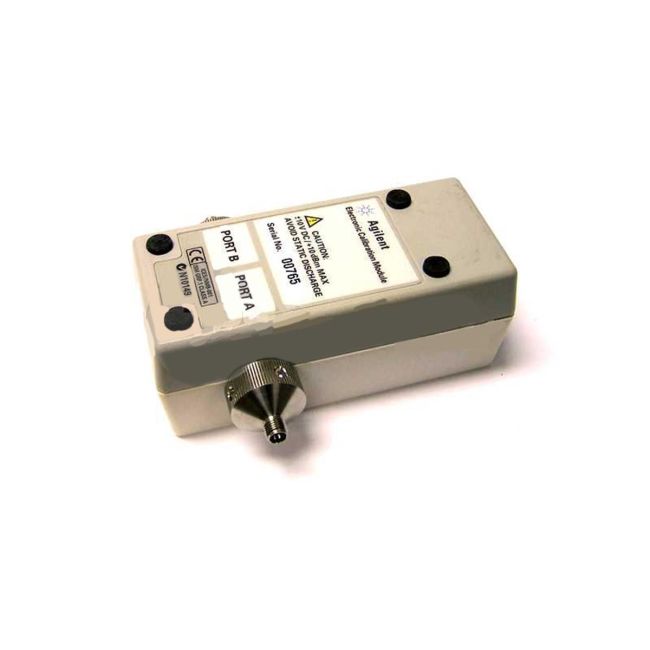

The Keysight (Agilent) N4692A MW ECal module streamlines network analyzer calibration with exceptional speed and precision. Covering 10 MHz to 40 GHz, it enables direct USB control for PNA and ENA series analyzers, delivering full two-port calibration through a single connection. Its solid-state switching ensures reliable, reduced-wear operation.
This ECal system minimizes manual intervention, enhances repeatability, and supports NIST-traceable calibrations, making it ideal for fast, accurate VNA setups.
Testwall can supply the used Keysight (Agilent) N4692A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N4692A.
