Keysight (Agilent)
Keysight (Agilent) N5162A
6GHz Signal Generator
0.01 Hz Frequency Resolution
step sweep, list mode Sweep Modes
Type-N female RF Output Connector
GPIB, LAN (LXI), USB Interfaces
100 kHz to 3 or 6 GHz; spec. from 250 kHz Frequency Range
| Attribute | Value |
|---|---|
| Frequency Resolution | 0.01 Hz |
| Sweep Modes | step sweep, list mode |
| RF Output Connector | Type-N female |
| Interfaces | GPIB, LAN (LXI), USB |
| Frequency Range | 100 kHz to 3 or 6 GHz; spec. from 250 kHz |
| Output Power | -110 to +13 dBm to 2.5 GHz, +7 dBm at 5.8 to 6 GHz |
| SSB Phase Noise | -121 dBc/Hz at 1 GHz, 20 kHz offset (typ.) |
| Modulation | AM, FM, ΦM, pulse, I/Q (depending on configuration) |
| Display | without (ATE version, no front panel display) |
Available configurations
| Model | Frequency range | Configuration |
| N5162A-503 | 100 kHz to 3 GHz | Vector signal generator |
Keysight Technologies N5162A Options:
- N5162A - 503 - Frequency range from 100 kHz to 3 GHz
- N5162A - 506 - Frequency range from 100 kHz to 6 GHz
- N5162A - UNZ - Fast switching
- N5162A - 1EA - High output power
- N5162A - 1EQ - Low power (< –110 dBm)
- N5162A - UNU - Pulse modulation
- N5162A - UNW - Narrow pulse modulation
- N5162A - UNT - AM, FM, phase modulation
- N5162A - 006 - Instrument security
- N5162A - 1ER - Flexible reference input (1-50 MHz)
- N5162A - UK6 - Commercial calibration certificate with test data
- N5162A - 099 - Expanded license key upgradeability
- N5162A - 012 - LO in/out for phase coherency
- N5162A - 651 - Internal baseband generator (30 MSa/s, 8 MSa)
- N5162A - 652 - Internal baseband generator (60 MSa/s, 8 MSa)
- N5162A - 654 - Internal baseband generator (125 MSa/s, 8 MSa)
- N5162A - 019 - Increase baseband generator memory to 64 MSa
- N5162A - 1EL - Differential I/Q outputs
- N5162A - 403 - Calibrated AWGN
- N5162A - UNV - Enhanced dynamic range
- N5162A - 430 - Multitone and two-tone
- N5162A - 431 - Custom digital modulation
- N5162A - 432 - Phase noise impairments
- N5162A - 320 - Pulse train generator
- N5162A - 221-229 - Waveform license 5-packs 1 to 9 (purchase up to 9 packs for 45 Signal Studio waveforms)
- N5162A - 250-259 - Waveform license 50-packs 1 to 10 (purchase up to 10 packs for 500 Signal Studio waveforms)
- N5162A - N7600B - Signal Studio for 3GPP W-CDMA with HSDPA/HSUPA
- N5162A - N7601B - Signal Studio for 3GPP2 CDMA
- N5162A - N7602B - Signal Studio for GSM/EDGE
- N5162A - N7606B - Signal Studio for Bluetooth
- N5162A - N7611B - Signal Studio for broadcast radio
- N5162A - N7612B - Signal Studio for TD-SCDMA
- N5162A - N7613A - Signal Studio for 802.16-2004 (WiMAX)
- N5162A - N7615B - Signal Studio for 802.16 WiMAX
- N5162A - N7616B - Signal Studio for T-DMB
- N5162A - N7617B - Signal Studio for 802.11 WLAN
- N5162A - N7621B - Signal Studio for multitone distortion test
- N5162A - N7622A - Signal Studio toolkit
- N5162A - N7623B - Signal Studio for digital video
- N5162A - N7624B - Signal Studio for 3GPP LTE
- N5162A - N7625B - Signal Studio for 3GPP LTE TDD
- N5162A - 1CM - Rackmount kit
- N5162A - 1CN - Front handle kit
- N5162A - 1CP - Rackmount and front handle kit
- N5162A - 1CR - Rack slide kit
- N5162A - AXT - Transit case
- N5162A - 800 - Customer service kit front panel RF connector configuration
- N5162A - 801 - Customer service kit rear panel (1EM) RF connector configuration

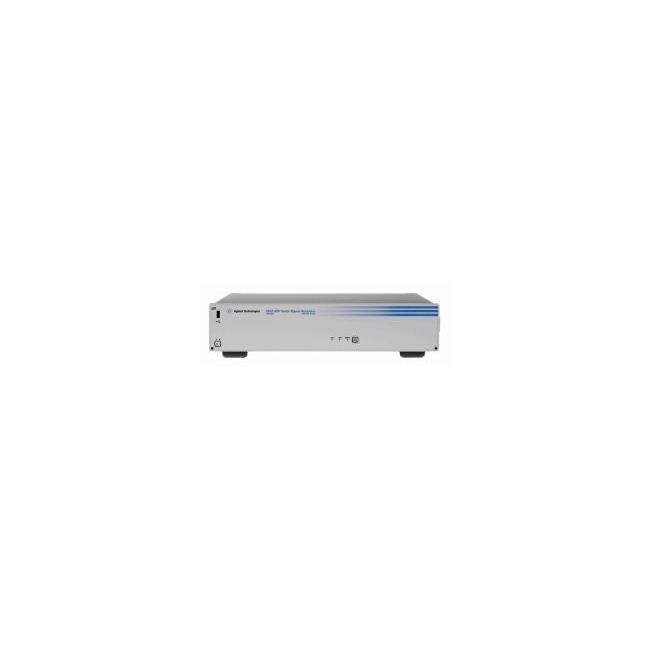

The Keysight (Agilent) N5162A MXG ATE RF Signal Generator is optimized for high-demand ATE environments, offering 100 kHz to 6 GHz range, fast switching times (≤900 µs), +23 dBm output, and full rear-panel I/O. It supports AM, FM, PM, pulse modulation, and complex digital formats such as QAM, PSK, and more, all in a compact 2RU form factor.
With simplified maintenance and support for list mode, digital sweeps, and advanced I/Q baseband generation, it is ideal for automated test systems needing reliable, repeatable signals.
Testwall can supply the used Keysight (Agilent) N5162A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5162A.
Options and configurations
- Modulation Bandwidth: 100 MHz internal with Opt. 654
- Frequency Range: 100 kHz to 3 or 6 GHz (Opt. 503/506); spec. from 250 kHz
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNU), I/Q
