Keysight (Agilent) N5173B
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 13 GHz |
| Level Accuracy | ±0.7 dB at 20 GHz |
| Frequency Resolution | 0.001 Hz |
| Harmonics | ≤ -55 dBc at 10 GHz |
| Non-Harmonics | -72 dBc at 1 GHz |
| Output Power | -135 to +20 dBm at 20 GHz |
| SSB Phase Noise | -101 dBc/Hz at 10 GHz, 10 kHz offset |
| Modulation | AM, FM, ΦM, pulse (depending on configuration) |
| Switching Speed | 600 µs (list mode) |
| Sweep Modes | step sweep, list mode |
| RF Output Connector | 3.5 mm male (depending on configuration) |
| Interfaces | GPIB, LAN (LXI), USB |
Available configurations
| Model | Frequency range | Configuration |
| N5173B-513 | 9 kHz to 13 GHz | Analog signal generator |
| N5173B-520 | 9 kHz to 20 GHz | Analog signal generator |
| N5173B-532 | 9 kHz to 31.8 GHz | Analog signal generator |
| N5173B-540 | 9 kHz to 40 GHz | Analog signal generator |
Keysight Technologies N5173B-513 Options:
- N5173B-513 - 513 - Frequency range 9 kHz to 13 GHz
- N5173B-513 - 1E1 - Step attenuator (0 to 115 dB in 10 dB steps mechanical type)
- N5173B-513 - 1EA - High output power
- N5173B-513 - 1ED - Adds Type-N connector to a 513 or 520
- N5173B-513 - 1EM - Rear panel RF output
- N5173B-513 - 1ER - External reference input frequency 1 to 50 MHz (in multiples of 0.1 Hz)
- N5173B-513 - UNT - AM, FM, and phase modulation
- N5173B-513 - UNW - Narrow pulse modulation
- N5173B-513 - UW2 - Narrow pulse modulation (export control version)
- N5173B-513 - UNZ - Faster frequency switching speed (CW mode ≤ 1.15 ms, List/step sweep ≤ 900 µs)
- N5173B-513 - UZ2 - Frequency switching speed option (CW mode < 1.65 ms, List/step sweep < 1.4 ms)
- N5173B-513 - 006 - Removable memory card and instrument security (8 GB SD card)
- N5173B-513 - 303 - Multifunction generator (7 waveform generators)
- N5173B-513 - 320 - Pulse train generator (requires Option UNW or UW2)

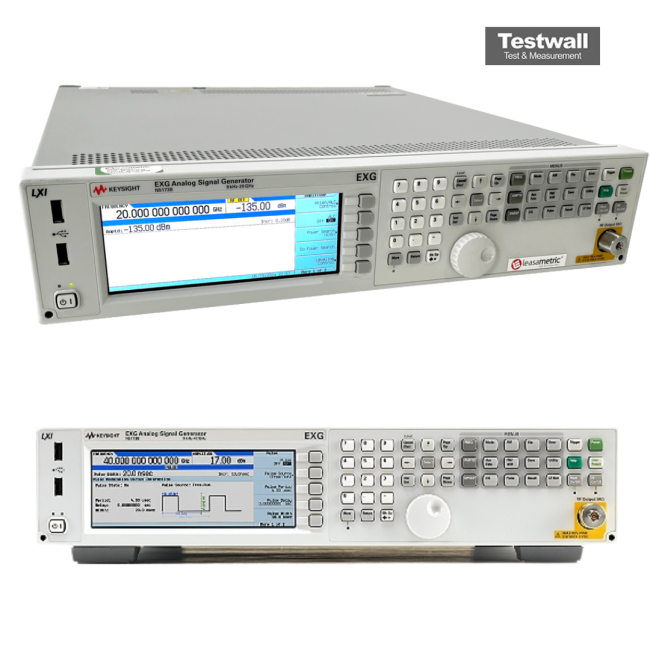

The Keysight (Agilent) N5173B-513 EXG Vector Signal Generator offers a frequency range from 9 kHz to 13 GHz, designed for demanding microwave communications and radar applications. It features fast signal switching, low-distortion analog modulation, and high signal accuracy with excellent spectral characteristics. The modular design supports future upgrades, making it ideal for evolving test requirements.
Perfect for high-speed digital and aerospace sectors, it enhances testing efficiency with robust performance and flexibility in complex signal generation.
Testwall can supply the used Keysight (Agilent) N5173B-513, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5173B-513.
Options and configurations
- Frequency Range: 9 kHz to 13 GHz (Opt. 513)
- Output Power: -135 to +20 dBm at 20 GHz (with Opt. 1EA, 1E1)
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNW)
- RF Output Connector: 3.5 mm male (Opt. 513/520), 2.4 mm male (Opt. 532/540); Type-N female with Opt. 1ED
