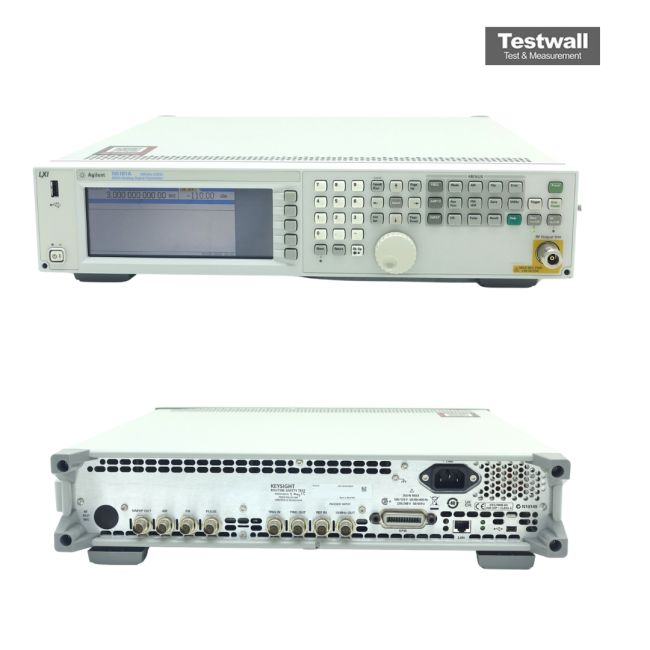

Keysight (Agilent) N5181AEP-503
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz (Opt. 503) |
| Frequency Resolution | 0.01 Hz |
| Sweep Modes | step sweep, list mode |
| Timebase Aging | ±1 × 10⁻⁶ per year |
| RF Output Connector | Type-N female |
| Output Power | -127 to +13 dBm to 4.5 GHz, +7 dBm to 6 GHz |
| Modulation | AM, FM, ΦM (Opt. UNT), pulse (Opt. UNU/UNW) |
| Harmonics | ≤ -30 dBc to 3 GHz; ≤ -44 dBc at 3 to 6 GHz |
| Interfaces | GPIB, LAN (LXI), USB |
| Dimensions | 426 × 103 × 432 mm |
| Weight | 12.5 kg |
Keysight (Agilent) N5181AEP-503 Options:
Options available for the Keysight (Agilent) MXG analog signal generator (N5181A). Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- N5181AEP - UNT - AM, FM and phase modulation
- N5181AEP - UNU - Pulse modulation
- N5181AEP - UNW - Narrow pulse modulation
- N5181AEP - 1EA - High output power
- N5181AEP - 1EQ - Low output power (step attenuator)
- N5181AEP - UNZ - Fast switching
- N5181AEP - 1ER - Flexible reference input
- N5181AEP - 1EM - RF output moved to rear panel
- N5181AEP - 006 - Instrument security
- N5181AEP - 1CM - Rack mount kit
- N5181AEP - 1CN - Front handle kit
- N5181AEP - 1CP - Rack mount kit with handles
The Keysight (Agilent) N5181AEP-503 is a ruggedized signal generator covering a frequency range of 100 kHz to 3 GHz
Designed as the Enhanced Power “EP” version, it meets demanding environmental requirements with superior EMI shielding and a durable chassis
Ideal for RF testing in harsh environments, this model replicates the 503 spec range and includes enhanced structural integrity for reliable operation
Testwall can supply the used Keysight (Agilent) N5181AEP-503, fully tested
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality
Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5181AEP-503
