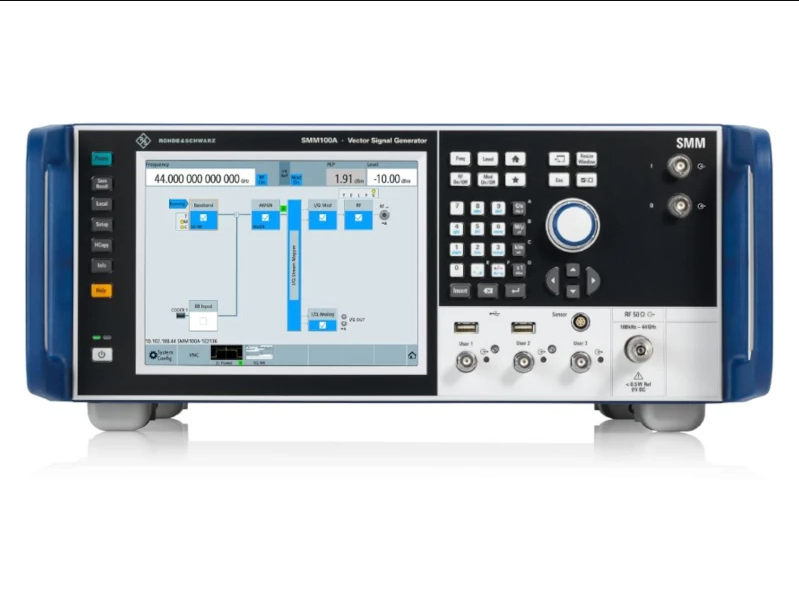

Rohde & Schwarz SMM100A
Vector Signal Generator, 100 kHz to 44 GHz
100 kHz to 6, 7.5, 12.75, 20, 31.8 or 44 GHz Frequency Range
0.001 Hz Frequency Resolution
< 1.2 ms (up to 6 GHz), < 1.5 ms (up to 44 GHz); list mode < 0.8 ms Switching Speed
up to +18 dBm (PEP, 3 MHz to 20 GHz), +11 dBm at 44 GHz; setting range -145 to +30 dBm Output Power
< -129 dBc/Hz (-134 dBc/Hz typ.) at 1 GHz, < -109 dBc/Hz at 10 GHz, 20 kHz offset SSB Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6, 7.5, 12.75, 20, 31.8 or 44 GHz |
| Frequency Resolution | 0.001 Hz |
| Switching Speed | < 1.2 ms (up to 6 GHz), < 1.5 ms (up to 44 GHz); list mode < 0.8 ms |
| Output Power | up to +18 dBm (PEP, 3 MHz to 20 GHz), +11 dBm at 44 GHz; setting range -145 to +30 dBm |
| SSB Phase Noise | < -129 dBc/Hz (-134 dBc/Hz typ.) at 1 GHz, < -109 dBc/Hz at 10 GHz, 20 kHz offset |
| Level Accuracy | < 0.5 dB (up to 3 GHz), < 0.7 dB (3 to 6 GHz), < 0.9 dB (6 to 20 GHz), < 1.2 dB (20 to 44 GHz) |
| Harmonics | < -30 dBc (up to 3.5 GHz), < -55 dBc (> 3.5 GHz) |
| Non-Harmonics | < -80 dBc (up to 1.5 GHz), < -73 dBc (3 to 6 GHz), < -55 dBc (24 to 44 GHz) |
| Modulation | AM, FM, ΦM, pulse, I/Q |
| Modulation Bandwidth | 120 MHz to 1 GHz (depending on configuration) |
| Timebase Aging | ≤ 1 × 10⁻⁷ per year |
| Display | 7 in color touchscreen |
Available configurations
| Model | Frequency range | Configuration |
| SMM100A-B1006 | 100 kHz to 6 GHz | Vector signal generator |
| SMM100A-B1007 | 100 kHz to 7.5 GHz | Vector signal generator |
| SMM100A-B1012 | 100 kHz to 12.75 GHz | Vector signal generator |
| SMM100A-B1020 | 100 kHz to 20 GHz | Vector signal generator |
| SMM100A-B1031 | 100 kHz to 31.8 GHz | Vector signal generator |
| SMM100A-B1044 | 100 kHz to 44 GHz | Vector signal generator |
Rohde & Schwarz SMM100A Options:
- SMM100A - SMM-B1006 - 100 kHz to 6 GHz Frequency Option
- SMM100A - SMM-B1007 - 100 kHz to 7.5 GHz Frequency Option
- SMM100A - SMM-B1012 - 100 kHz to 12.75 GHz Frequency Option
- SMM100A - SMM-B1020 - 100 kHz to 20 GHz Frequency Option
- SMM100A - SMM-B1031 - 100 kHz to 31.8 GHz Frequency Option
- SMM100A - SMM-B1044 - 100 kHz to 44 GHz Frequency Option
- SMM100A - SMM-B1044N - 100 kHz to 44 GHz Frequency Option (limited I/Q bandwidth)
- SMM100A - SMM-B1044O - 100 kHz to 44 GHz Frequency Option (limited I/Q bandwidth and pulse)
- SMM100A - SMM-B9 - Wideband Baseband Generator, 120 MHz
- SMM100A - SMM-K523 - Baseband Extension to 240 MHz RF Bandwidth
- SMM100A - SMM-K524 - Baseband Extension to 500 MHz RF Bandwidth
- SMM100A - SMM-K525 - Baseband Extension to 1 GHz RF Bandwidth
- SMM100A - SMM-K720 - AM/FM/φM
- SMM100A - SMM-K22 - Pulse Modulator
- SMM100A - SMM-K23 - High-Performance Pulse Generator
- SMM100A - SMM-K703 - 1 GHz/100 MHz Low-Noise Reference Input/Output
- SMM100A - SMM-K704 - Flexible Reference Input, 1 MHz to 100 MHz
- SMM100A - SMM-B709 - Low Phase Noise
The Rohde & Schwarz SMM100A is a vector signal generator covering 100 kHz to 6, 7.5, 12.75, 20, 31.8 or 44 GHz, with up to 1 GHz internal I/Q modulation bandwidth. It is built for 5G NR FR1 and FR2, Wi-Fi 6E/7 and other wideband standards, and combines excellent EVM and ACLR with low phase noise in a compact instrument with a 7-inch touchscreen.
Testwall can supply the used Rohde & Schwarz SMM100A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMM100A.
