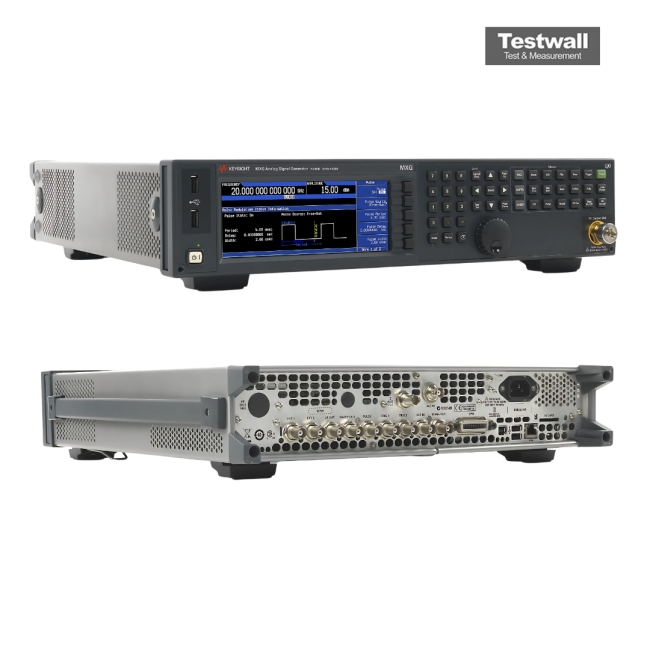

Keysight (Agilent) N5183B
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 40 GHz |
| Frequency Resolution | 0.001 Hz |
| Sweep Modes | step sweep, list mode |
| Timebase Aging | < ±1 × 10⁻⁷ per year |
| Interfaces | GPIB, LAN (LXI), USB |
| Output Power | -130 to +18 dBm at 3.2 to 13 GHz (depending on configuration) |
| SSB Phase Noise | -113 dBc/Hz at 10 GHz, 20 kHz offset (spec.) |
| Modulation | AM, FM, ΦM, pulse (depending on configuration) |
| Level Accuracy | ±0.6 dB (spec.) to 2 GHz; ±0.9 dB (spec.) at 2 to 40 GHz |
| Harmonics | < -55 dBc (spec.) at 2 to 20 GHz, +10 dBm |
| Non-Harmonics | -57 to -75 dBc (spec.) standard |
| Switching Speed | ≤ 5 ms (spec.) |
| RF Output Connector | 3.5 mm male (depending on configuration) |
| Dimensions | 426 × 88 × 489 mm |
| Weight | 14.5 kg (depending on configuration) |
Available configurations
| Model | Frequency range | Configuration |
| N5183B-513 | 9 kHz to 13 GHz | Analog signal generator |
| N5183B-520 | 9 kHz to 20 GHz | Analog signal generator |
| N5183B-532 | 9 kHz to 31.8 GHz | Analog signal generator |
| N5183B-540 | 9 kHz to 40 GHz | Analog signal generator |
Keysight (Agilent) N5183B-540 Options:
Options available for the Keysight (Agilent) MXG X-Series microwave analog signal generator (N5183B). Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- N5183B - UNT - AM, FM and phase modulation
- N5183B - UNW - Narrow pulse modulation
- N5183B - UNY - Enhanced low phase noise
- N5183B - 1E1 - Step attenuator
- N5183B - 1EA - High output power
- N5183B - 1EM - RF output moved to rear panel
- N5183B - 006 - Instrument security
- N5183B - 1CM - Rack mount kit
- N5183B - 1CN - Front handle kit
- N5183B - 1CP - Rack mount kit with handles
The Keysight (Agilent) N5183B-540 delivers high-performance analog signal generation across 100 kHz to 40 GHz with excellent phase stability and low-noise output up to +18 dBm.
Equipped with AM/FM/PM modulations, fast 5 ms frequency switching, and versatile connectivity via LAN, USB, GPIB; LXI certified.
Testwall can supply the used Keysight (Agilent) N5183B-540, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5183B-540.
Options and configurations
- Frequency Range: 9 kHz to 40 GHz (Opt. 540)
- Output Power: -130 to +18 dBm at 3.2 to 13 GHz (Opt. 513/520, with Opt. 1E1); +20 dBm with Opt. 1EA
- SSB Phase Noise: -113 dBc/Hz at 10 GHz, 20 kHz offset (spec.); -119 dBc/Hz at 10 GHz, 10 kHz offset (spec.) with Opt. UNY
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNW)
- Non-Harmonics: -57 to -75 dBc (spec.) standard; up to -96 dBc with Opt. UNY
- Switching Speed: ≤ 5 ms (spec.); ≤ 1.15 ms (spec.) with Opt. UNZ
- RF Output Connector: 3.5 mm male (Opt. 513/520), 2.4 mm male (Opt. 532/540); Type-N with Opt. 1ED
- Weight: 14.5 kg (Opt. 513/520), 15.0 kg (Opt. 532/540)
