Keysight (Agilent)

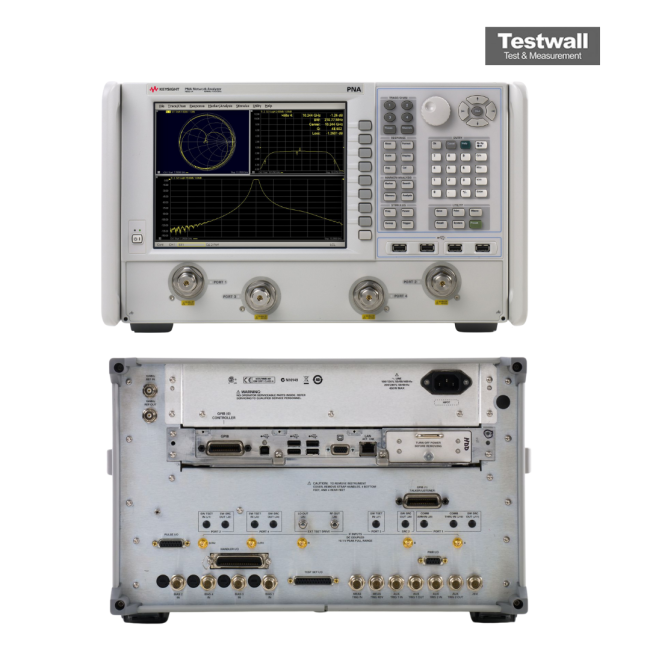

Keysight (Agilent) N5221A
PNA Network Analyser
10 MHz to 13.5 GHz Frequency Range
2 Number of Ports
Up to 122 dB Dynamic Range
-85 dBm to +13 dBm Output Power Range
Up to 9.5 μs per point (fast sweep mode) Measurement Speed
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 13.5 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 122 dB |
| Output Power Range | -85 dBm to +13 dBm |
| Measurement Speed | Up to 9.5 μs per point (fast sweep mode) |
| Trace Noise | 0.004 dB RMS typical at 1 kHz IF bandwidth |
| Connector Type | 3.5 mm (f) test port connectors |
| IF Bandwidth | 1 Hz to 15 MHz |
| Number of Data Points | 1 to 100,001 points per sweep |
| Power Supply | 100–240 VAC, 50/60 Hz, 350 W maximum |
Keysight Technologies N5221A Options:
- N5221A - 200 - 2-port base model with standard test set
- N5221A - 201 - To base model, adds front-panel jumpers and R1 receiver switch
- N5221A - 217 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range)
- N5221A - 219 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
- N5221A - 400 - 4-port base model with standard test set
- N5221A - 401 - To base model, adds front-panel jumpers and R1 receiver switch
- N5221A - 417 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range)
- N5221A - 419 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
| Model | N5221A |
|---|
The Keysight (Agilent) N5221A PNA Network Analyzer covers a frequency range from 10 MHz to 13.5 GHz and is available with 2 or 4 ports, offering high-performance vector network analysis for advanced RF applications.
Ideal for S-parameter measurements, the N5221A supports a wide dynamic range, high measurement speed, and precise calibration capabilities for demanding testing environments.
Testwall can supply the used Keysight (Agilent) N5221A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5221A.
