Keysight (Agilent) N5221B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 13.5 GHz |
| Number of Ports | 2-Port |
| Dynamic Range | Up to 132 dB |
| Output Power Range | -85 dBm to +13 dBm |
| Trace Noise (Magnitude) | 0.001 dB RMS at 10 Hz IF bandwidth |
| System Directivity | Up to 46 dB (typical) |
| Test Port Connector Type | Type-N (50 Ohm) |
| IF Bandwidth Range | 1 Hz to 15 MHz |
| Number of Data Points per Sweep | 1 to 100,001 points |
| Power Supply Input | 100–240 VAC, 50/60 Hz |
Keysight (Agilent) N5221B Options:
- N5221B - 200 - 2-port base model with standard test set
- N5221B - 201 - To base model, adds front-panel jumpers and R1 receiver switch
- N5221B - 217 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range)
- N5221B - 219 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
- N5221B - 400 - 4-port base model with standard test set
- N5221B - 401 - To base model, adds front-panel jumpers and R1 receiver switch
- N5221B - 417 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range)
- N5221B - 419 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
| Model | N5221B |
|---|

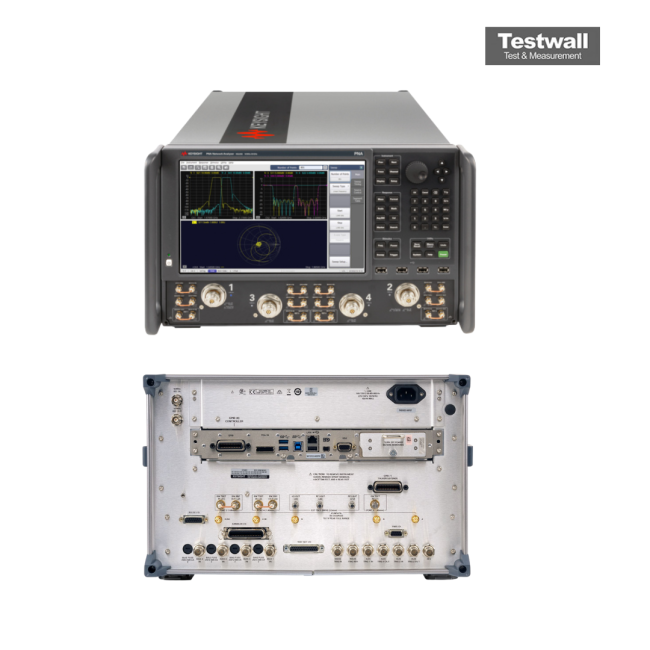

The Keysight (Agilent) N5221B is a premium microwave network analyzer delivering industry-leading performance for demanding measurement tasks. It offers precise S-parameter measurements with minimal uncertainty and unmatched stability. The analyzer features advanced applications for streamlined characterization of active components and a multitouch display for enhanced usability. Customizable performance options allow users to balance capability with budget.
Ideal for engineers and technicians, the N5221B includes essential accessories such as ferrite core inductors, cable tie, optical mouse, and setup guides. It ensures rapid and accurate RF/microwave testing across varied applications.
Testwall can supply the used Keysight (Agilent) N5221B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5221B.
