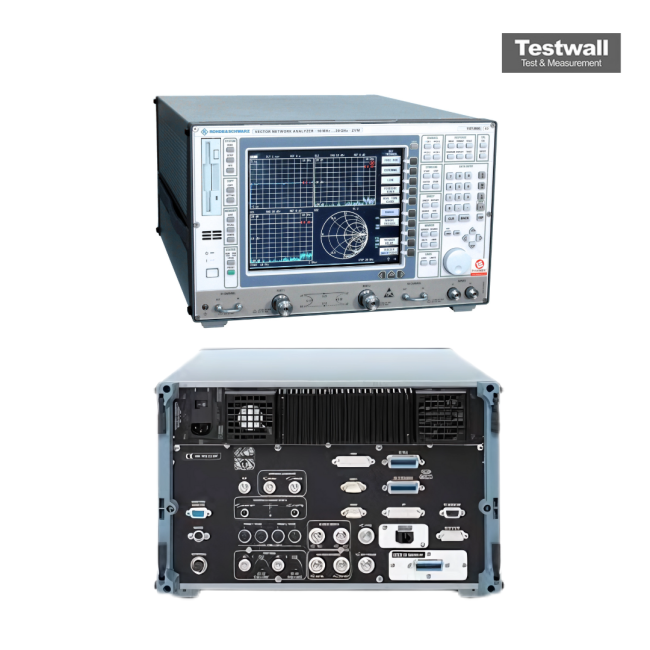

Rohde & Schwarz ZVM
| Attribute | Value |
|---|---|
| Frequency Range | 20 kHz to 20 GHz |
| Number of Test Ports | 2 |
| Dynamic Range | Up to 130 dB |
| Output Power Range | -60 dBm to +10 dBm |
| Measurement Parameters | S-parameters, impedance, admittance, group delay, phase, and more |
| IF Bandwidth | 1 Hz to 100 kHz |
| Trace Noise | Less than 0.004 dB RMS at 10 Hz IF bandwidth |
| Connector Type | 3.5 mm (f) test port connectors |
| Display | 10.4-inch color TFT LCD touchscreen |
| Interface / Connectivity | GPIB, USB, LAN (Ethernet), RS-232 |
Rohde & Schwarz ZVM Options:
- ZVM - ZVR-B2 - Time Domain: Display and gating of measured values in the time domain and transformation back to the frequency domain
- ZVM - ZVR-B4 - Mixer Measurements: Independent configuration and control of external generators, internal generator and receiver (harmonics and arbitrary frequency conversion measurement included)
- ZVM - ZVR-B5 - Nonlinear Measurements: Measurement of n dB compression point and 2nd- or 3rd-order intercept points (SOI/TOI)
- ZVM - ZVR-B7 - Power Calibration: Power calibration to improve absolute amplitude accuracy of generator and receiver (power meter and sensor required)
- ZVM - ZVR-K9 - Virtual Embedding Networks: Adding virtual or correcting real existing networks by mathematical algorithms
- ZVM - FSE-B16 - Ethernet AUI Interface for internal PC
- ZVM - FSE-B16 - Ethernet BNC Interface for internal PC
- ZVM - FSE-B16 - Ethernet RJ45 Interface for internal PC
- ZVM - FSE-B17 - IEC/IEEE-Bus Interface for internal PC (in addition to two IEC/IEEE-bus interfaces provided as standard)
- ZVM - ZVM-B21 - Generator Step Attenuator PORT 1: Mechanical attenuator for generator path to PORT 1, attenuation 0 dB to 70 dB in 10 dB steps
- ZVM - ZVM-B22 - Generator Step Attenuator PORT 2: Mechanical attenuator for generator path to PORT 2, attenuation 0 dB to 70 dB in 10 dB steps
- ZVM - ZVM-B23 - Receiver Step Attenuator PORT 1: Mechanical attenuator for receiver path from PORT 1 and Input b1, attenuation 0 dB to 70 dB in 10 dB steps, includes additional test port Input b1
- ZVM - ZVM-B24 - Receiver Step Attenuator PORT 2: Mechanical attenuator for receiver path from PORT 2 and Input b2, attenuation 0 dB to 70 dB in 10 dB steps, includes additional test port Input b2
| Model | ZVM |
|---|
The Rohde & Schwarz ZVM Vector Network Analyzer offers comprehensive measurement capabilities for S-parameters and other RF characteristics across a wide frequency range. It includes advanced troubleshooting tools, remote-control functionality, and precise optimization support. Maintenance features and error management are also integrated.
Ideal for professionals needing high-accuracy network analysis, the ZVM supports complex setups and remote operations with detailed command structures and thorough measurement procedures.
Testwall can supply the used Rohde & Schwarz ZVM, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVM.
