Keysight (Agilent)
Keysight (Agilent) N5222A-217

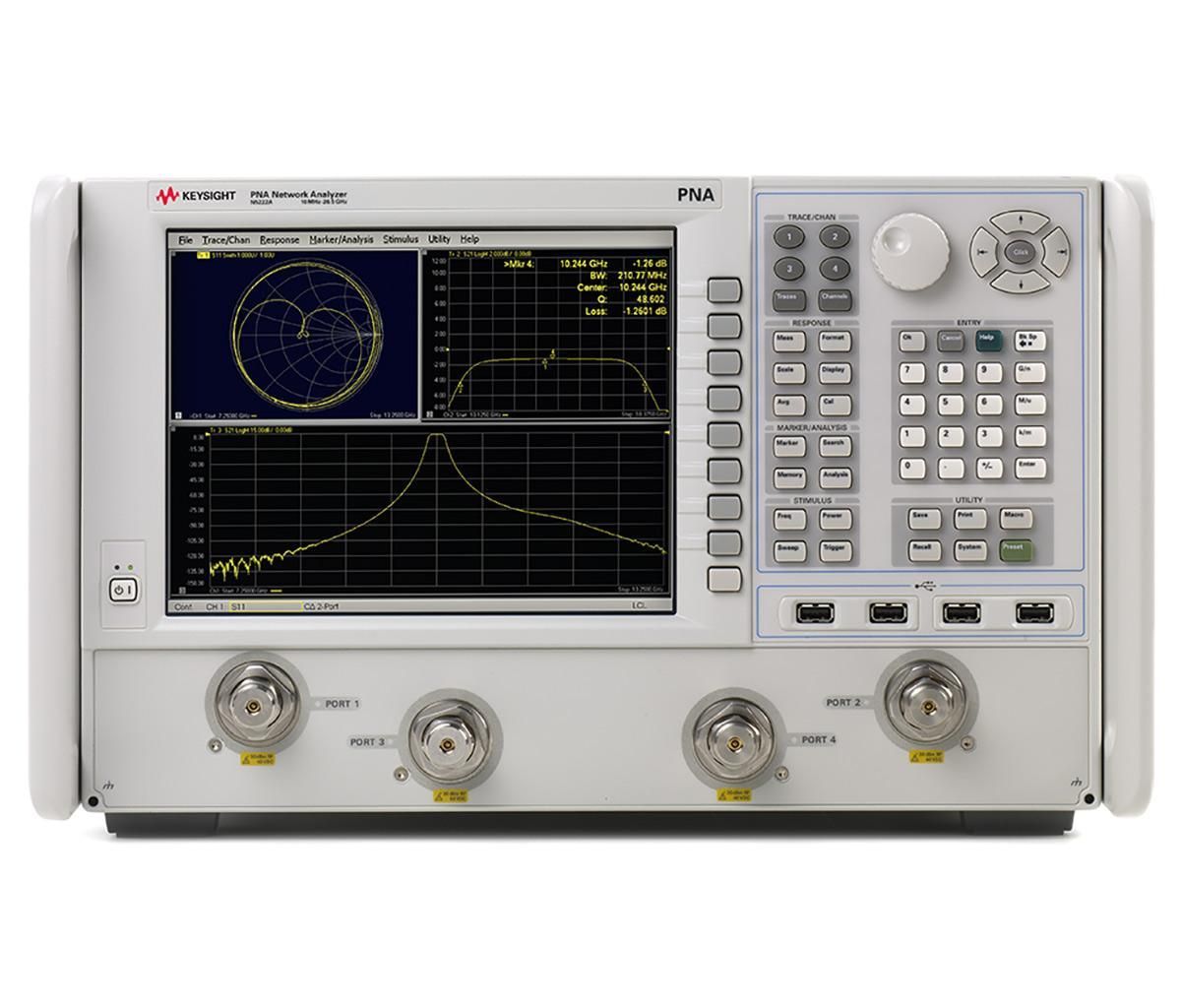

2-port, 10 MHz to 26.5 GHz PNA Network Analyzer, Option 217 (representative image)
10 MHz to 26.5 GHz Frequency Range
2 Number of Ports
111 dB (spec.) Dynamic Range
-95 dBm … +13 dBm Output Power Range
Option 217: configurable test set (front-panel access loops), source step attenuators (extended power range), receiver step attenuators Configuration
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 26.5 GHz |
| Number of Ports | 2 |
| Dynamic Range | 111 dB (spec.) |
| Output Power Range | -95 dBm … +13 dBm |
| Configuration | Option 217: configurable test set (front-panel access loops), source step attenuators (extended power range), receiver step attenuators |
| Internal Sources | 1 |
| Impedance | 50 Ω |
| Connector Type | 3.5 mm (m) |
| IF Bandwidth | 1 Hz … 15 MHz |
| Trace Noise | 0.002 dB rms |
| Measurement Parameters | S-parameters, group delay |
| Display | 10.4" LCD, 1024×768 |
| Interfaces | LAN, 2× GPIB, USB, VGA |
| Series | PNA |
Keysight (Agilent) N5222A-217 Options:
- N5222A - 200 - 2-port base model with standard test set
- N5222A - 201 - To base model, adds front-panel jumpers and R1 receiver switch
- N5222A - 217 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range)
- N5222A - 219 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
- N5222A - 400 - 4-port base model with standard test set
- N5222A - 401 - To base model, adds front-panel jumpers and R1 receiver switch
- N5222A - 417 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range)
- N5222A - 419 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
The Keysight (Agilent) N5222A-217 is a 2-port PNA vector network analyzer covering 10 MHz to 26.5 GHz. Option 217 configuration: configurable test set (front-panel access loops), source step attenuators (extended power range), receiver step attenuators.
Testwall can supply the used Keysight (Agilent) N5222A-217, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5222A-217.
