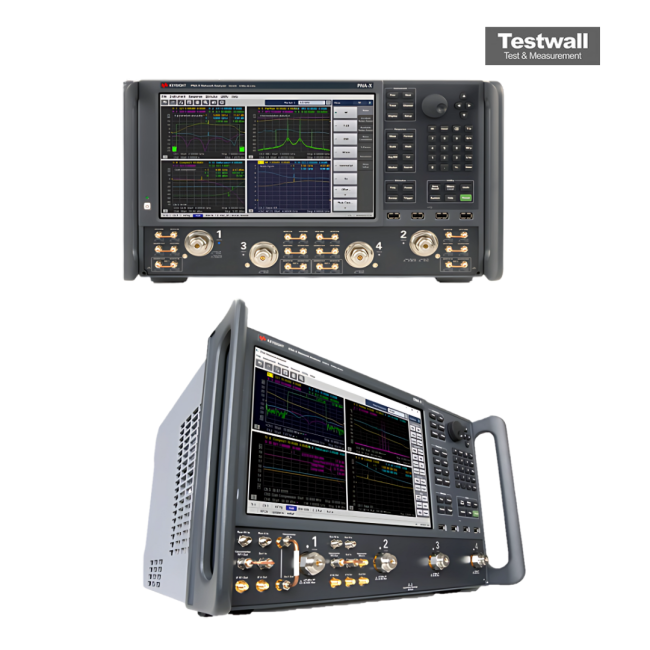

Keysight (Agilent) N5222A-419
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 26.5 GHz |
| Number of Ports | 2-Port |
| Option Type | Configurable Test Set - Adds a second source output and reference receivers on ports 1 and 2 |
| Dynamic Range | Up to 132 dB |
| Output Power Range | -90 dBm to +13 dBm |
| Trace Noise | 0.004 dB RMS at 10 Hz IF bandwidth |
| Connector Type | 2.4 mm (male) test port connectors |
| Measurement Speed | Up to 42 µs per point |
| Compatible Platform | Keysight N5222A PNA Series Network Analyzer |
| Application | Mixer/converter measurements, amplifier gain compression, and multiport device testing |
Keysight Technologies N5222A-419 Options:
- N5222A-419 - 200 - 2-port base model with standard test set
- N5222A-419 - 201 - To base model, adds front-panel jumpers and R1 receiver switch
- N5222A-419 - 217 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range)
- N5222A-419 - 219 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
- N5222A-419 - 400 - 4-port base model with standard test set
- N5222A-419 - 401 - To base model, adds front-panel jumpers and R1 receiver switch
- N5222A-419 - 417 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range)
- N5222A-419 - 419 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
| Model | N5222A-419 |
|---|
The Keysight (Agilent) N5222A-419 offers a 10 MHz–26.5 GHz frequency range in a 2- or 4-port configuration, ideal for high-frequency and multiport DUTs. Equipped with dual-synthesized sources, it enables advanced testing for balanced devices, with ruggedized 3.5 mm connectors and enhanced metrology options. Its modern interface and connectivity streamline precision measurement workflows.
This unit excels in testing RF components, modules, and systems with dual-source capability and PNA/L architecture, ensuring reliable and scalable performance.
Testwall can supply the used Keysight (Agilent) N5222A-419, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5222A-419.
