Keysight (Agilent) N5224B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 43.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 122 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise (Typical) | 0.004 dB rms at 10 Hz IF bandwidth |
| Measurement Speed | Up to 42 µs per point (fast sweep mode) |
| Connector Type | 2.92 mm (K) female, 50 Ohm |
| IF Bandwidth | 1 Hz to 15 MHz |
| System Directivity | Up to 50 dB (with calibration) |
| Power Supply | 100–240 VAC, 50/60 Hz, 350 W maximum |
Keysight (Agilent) N5224B Options:
- N5224B - 210 - 2-port, single source, with metrology configuration
- N5224B - 410 - 4-port, dual source, with metrology configuration
| Model | N5224B |
|---|

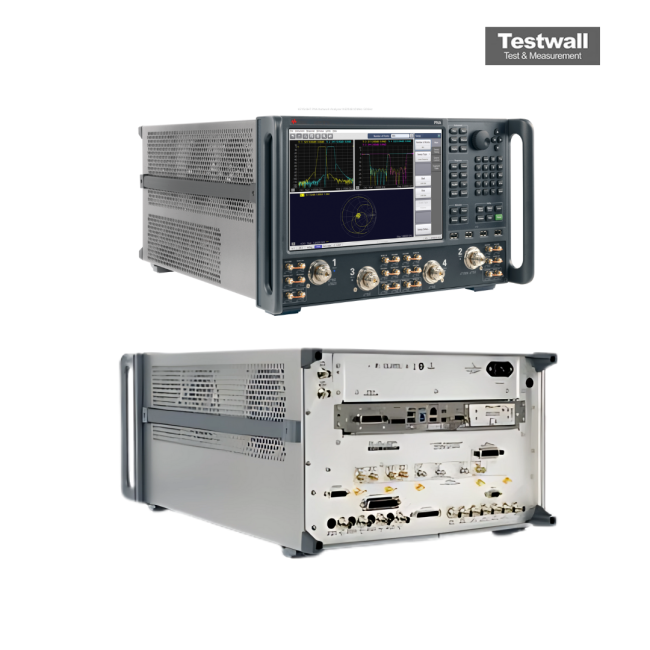

The Keysight (Agilent) N5224B PNA Microwave Network Analyzer spans 900 Hz to 43.5 GHz and excels in testing active devices including amplifiers, mixers, and frequency converters. It combines robust hardware with high-end applications, ensuring rapid and precise measurements across a broad spectrum.
Supporting two-port and four-port configurations with built-in pulse modulators and generators, it streamlines S-parameter analysis, gain compression, and distortion tests. Ideal for characterizing I/Q and differential components.
Testwall can supply the used Keysight (Agilent) N5224B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5224B
