Keysight (Agilent)

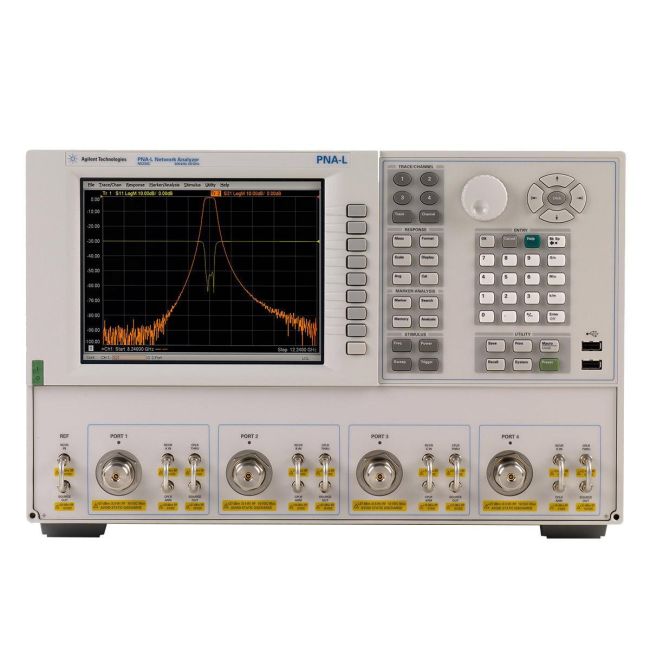

Keysight (Agilent) N5230C-420
2-port, 40 GHz PNA-L Network Analyzer, 2.4 mm (m)
300 kHz to 20 GHz Frequency Range
4 Number of Ports
122 dB Dynamic Range
-85 dBm to +10 dBm Output Power Range
0.004 dB RMS Trace Noise (at 10 Hz IF Bandwidth)
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 20 GHz |
| Number of Ports | 4 |
| Dynamic Range | 122 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise (at 10 Hz IF Bandwidth) | 0.004 dB RMS |
| Test Port Connector Type | 3.5 mm (f) |
| IF Bandwidth Range | 1 Hz to 1 MHz |
| Number of Points per Sweep | 1 to 32,001 |
| Power Level Accuracy | ±1.0 dB |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
Keysight Technologies N5230C-420 Options:
- N5230C-420 - 020 - Standard test set and standard power range, 10 MHz to 40 GHz
- N5230C-420 - 025 - Configurable test set and extended power range, 10 MHz to 40 GHz
- N5230C-420 - 120 - Standard test set and standard power range, 300 kHz to 13.5 GHz
- N5230C-420 - 125 - Configurable test set and extended power range, 300 kHz to 13.5 GHz
- N5230C-420 - 220 - Standard test set and standard power range, 10 MHz to 20 GHz
- N5230C-420 - 225 - Configurable test set and extended power range, 10 MHz to 20 GHz
- N5230C-420 - 420 - Standard test set and standard power range, 10 MHz to 40 GHz
- N5230C-420 - 425 - Configurable test set and extended power range, 10 MHz to 40 GHz
- N5230C-420 - 520 - Standard test set and standard power range, 10 MHz to 50 GHz
- N5230C-420 - 525 - Configurable test set and extended power range, 10 MHz to 50 GHz
- N5230C-420 - 080 - Fast sweep/measurement mode (Option 080 enabled cycle time)
| Model | N5230C-420 |
|---|
The Keysight (Agilent) N5230C-420 is a compact 4-port PNA‑L analyzer designed for passive multi-port component testing up to 50 GHz. It excludes bias and low-frequency options for streamlined network analysis.
Its modular and field-upgradable design ensures versatility for RF assemblies and S-parameter analysis across 4 ports.
Testwall can supply the used Keysight (Agilent) N5230C-420, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5230C-420.
