Keysight (Agilent) N5235A-216

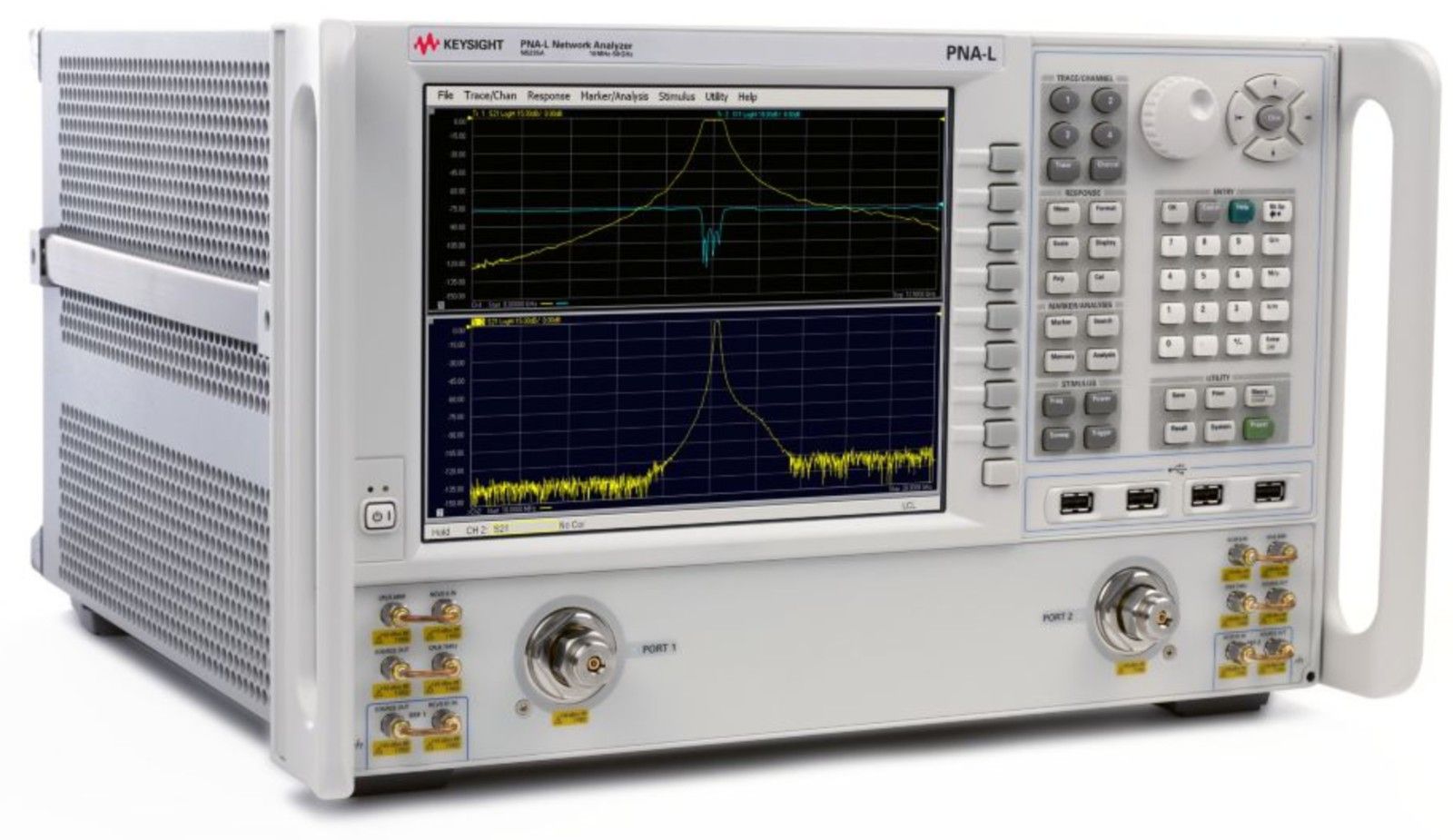

2-port, 10 MHz to 50 GHz PNA-L Network Analyzer, Option 216 (representative image)
10 MHz to 50 GHz Frequency Range
2 Number of Ports
80 dB (spec.) Dynamic Range
-90 dBm … +6 dBm Output Power Range
Option 216: configurable test set (front-panel access loops), source step attenuators (extended power range) Configuration
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 50 GHz |
| Number of Ports | 2 |
| Dynamic Range | 80 dB (spec.) |
| Output Power Range | -90 dBm … +6 dBm |
| Configuration | Option 216: configurable test set (front-panel access loops), source step attenuators (extended power range) |
| Internal Sources | 1 |
| Impedance | 50 Ω |
| Connector Type | 2.4 mm (m) |
| IF Bandwidth | 1 Hz … 15 MHz |
| Trace Noise | 0.003 dB rms |
| Measurement Parameters | S-parameters, group delay |
| Display | 10.4" LCD, 1024×768 |
| Interfaces | LAN, 2× GPIB, USB |
| Series | PNA-L |
Keysight (Agilent) N5235A-216 Options:
- N5235A - 200 - 2-port base model with standard test set
- N5235A - 216 - To base model, adds front-panel jumpers and source attenuators (extended power range)
The Keysight (Agilent) N5235A-216 is a 2-port PNA-L vector network analyzer covering 10 MHz to 50 GHz. Option 216 configuration: configurable test set (front-panel access loops), source step attenuators (extended power range).
Testwall can supply the used Keysight (Agilent) N5235A-216, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5235A-216.
