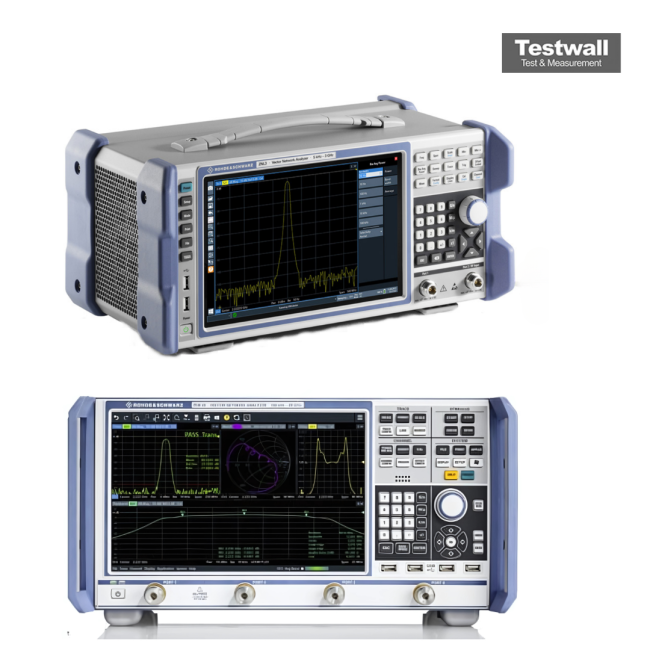

Rohde & Schwarz ZNL14
| Attribute | Value |
|---|---|
| Frequency Range | 5 kHz to 14 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 130 dB |
| Output Power | -40 dBm to +3 dBm |
| Measurement Speed | 4.5 ms per point (typical) |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Trace Noise | <0.005 dB RMS |
| Connector Type | N-type female, 50 Ω |
| Integrated Spectrum Analyzer | Yes, with 14 GHz frequency range |
| Operating Temperature Range | 0 °C to +50 °C |
Rohde & Schwarz ZNL14 14GHz 2 Port Vector Network Analyzer Options:
- ZNL14 - B1 - Spectrum Analyzer Function
- ZNL14 - B19 - Additional Removable Pc Board With Ssd
- ZNL14 - B22 - Extended Power Range
- ZNL14 - B31 - Receiver Step Attenuator Port 1
- ZNL14 - B32 - Receiver Step Attenuator Port 2
- ZNL14 - FPL1-B10 - Gpib Interface
- ZNL14 - FPL1-B30 - Dc Power Supply (12 V/24 V)
- ZNL14 - FPL1-B31 - Lithium-Ion Battery Pack
- ZNL14 - FPL1-B4 - Ocxo Accurate Reference Frequency
- ZNL14 - FPL1-B40 - 40 MHZ Analysis Bandwidth
- ZNL14 - FPL1-B5 - Additional Interfaces
- ZNL14 - FPL1-K30 - Noise Figure Measurements
- ZNL14 - FPL1-K7 - Am/Fm/Fm Analog Modulation Analysis
- ZNL14 - FPL1-K9 - Measurements With R&S庐NRP Power Sensors
- ZNL14 - K14 - Independent Cw Source
- ZNL14 - K2 - Time Domain Analysis
- ZNL14 - K3 - Distance-To-Fault Measurements
| Model | ZNL14 |
|---|
The Rohde & Schwarz ZNL14 is a high-performance 14GHz 2-port vector network analyzer designed for accurate and efficient network testing. Featuring a wide frequency range of up to 14 GHz, it ensures precise measurements for a variety of RF and microwave components. With advanced features like S-parameter testing, time domain analysis, and high measurement accuracy, the ZNL14 is perfect for professionals needing reliable and fast testing results.
The ZNL14 is ideal for testing components such as antennas, filters, and amplifiers. Its portability and user-friendly interface make it suitable for both lab and field testing. It comes with comprehensive software for easy integration into your workflow.
Testwall can supply the used Rohde & Schwarz ZNL14, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZNL14.
