Keysight (Agilent)

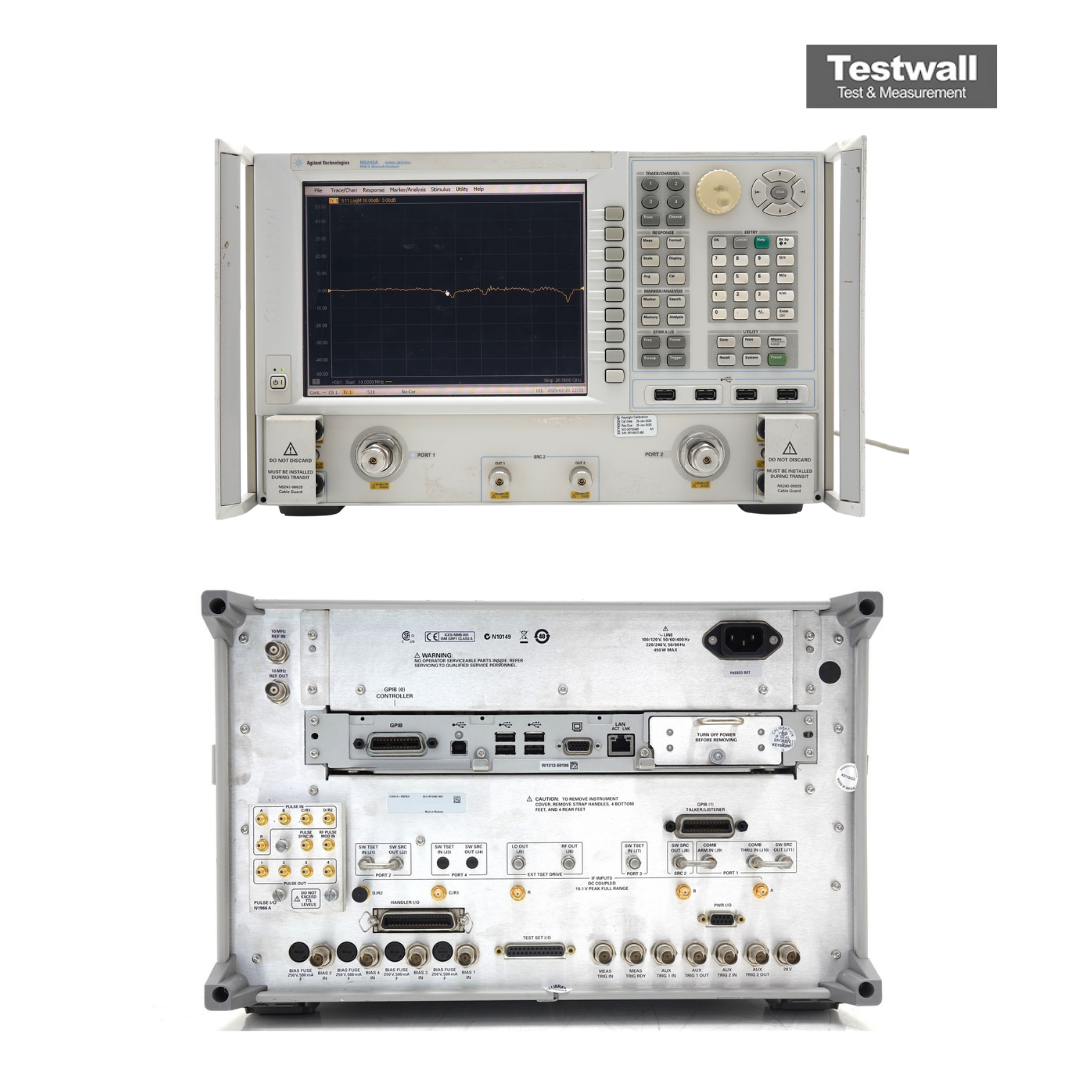

Keysight (Agilent) N5241A-200
2-port, 13.5 GHz PNA-X Network Analyzer, 3.5 mm (m)
10 MHz to 13.5 GHz Frequency Range
2 Number of Ports
Up to 123 dB Dynamic Range
-85 dBm to +10 dBm Output Power Range
0.004 dB RMS Trace Noise
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 13.5 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 123 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise | 0.004 dB RMS |
| Test Port Connector Type | 2.92 mm (K) connectors |
| Number of Receivers | 4 |
| IF Bandwidth Range | 1 Hz to 15 MHz |
| Power Accuracy | ±0.9 dB |
| Option Description | Option 200: Extended Power Range and Bias Tees |
| Measurement Parameters | S-parameters, noise figure (opt.), gain compression, IMD, pulsed RF |
| Display | 10.4" LCD, 1024×768 |
| Interfaces | LAN, USB, GPIB |
Available configurations
| Model | Ports | Frequency range | Configuration |
| N5241A-200 | 2 | 10 MHz to 13.5 GHz | |
| N5241A-219 | 2 | 10 MHz to 13.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5241A-224 | 2 | 10 MHz to 13.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees, second internal source, internal combiner and switches |
| N5241A-400 | 4 | 10 MHz to 13.5 GHz | configurable test set |
| N5241A-419 | 4 | 10 MHz to 13.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5241A-423 | 4 | 10 MHz to 13.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees, internal combiner and switches |
Keysight (Agilent) N5241A-200 Options:
- N5241A-200 - 1CP - Rack Mounting For Instruments Equipped With Handles
- N5241A-200 - 1CM - Rack Mounting For Instruments Not Equipped With Handles
The Keysight (Agilent) N5241A-200 is a 2-port PNA‑X network analyzer spanning 10 MHz to 13.5 GHz. Features include a single internal RF source with source/receiver attenuation, bias‑tee options, and a system dynamic range of ~132 dB.
Delivers +18 dBm output power, 15 MHz IF bandwidth, low harmonics (<−60 dBc), and fast sweep speeds, ideal for RF component and amplifier testing.
Testwall can supply the used Keysight (Agilent) N5241A-200, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5241A-200.
