Keysight (Agilent)

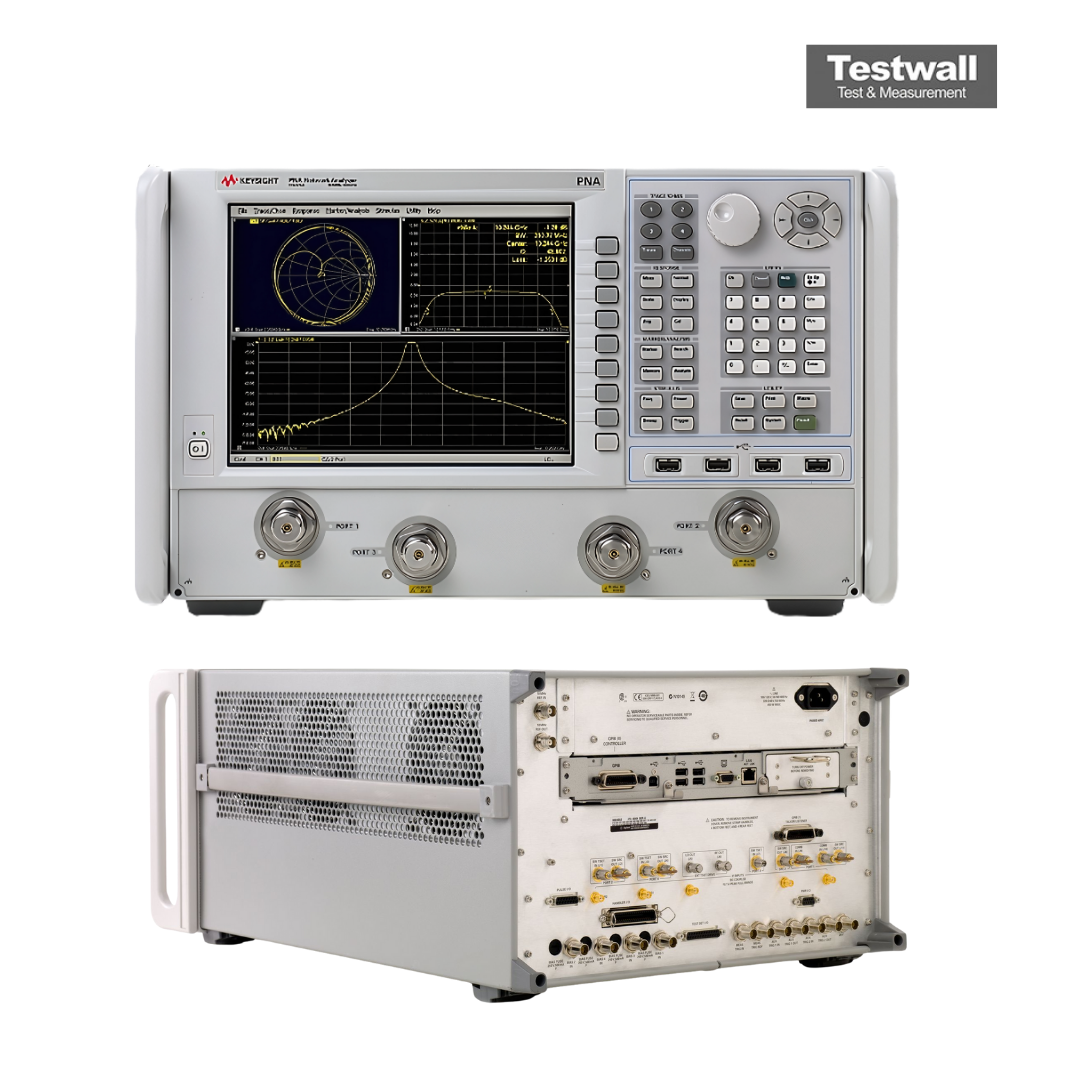

Keysight (Agilent) N5242AS-285
2-port, 26.5 GHz PNA-X Network Analyzer
10 MHz to 26.5 GHz Frequency Range
4 Number of Ports
Up to 132 dB Dynamic Range
-85 dBm to +10 dBm Output Power Range
0.004 dB RMS Trace Noise
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 26.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 132 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise | 0.004 dB RMS |
| Measurement Speed | Up to 40,000 points/second |
| System Connector Type | 3.5 mm (f) |
| Network Analyzer Series | PNA-X Series |
| Power Accuracy | ±0.9 dB |
| Operating Temperature Range | 0°C to 55°C |
Keysight (Agilent) N5242AS-285 Options:
- N5242A - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires one of option 219, 224, 419, or 423)
- N5242A - 200 - 2-port standard test set (includes six front-panel access loops) and power range
- N5242A - 219 - Adds 2-port extended power range, source and receiver attenuators, and bias-tees (requires Option 200)
- N5242A - 224 - Adds an internal second source, a combiner, and mechanical switches to the 2-port analyzer (requires Option 200, 219, and 080)
- N5242A - 400 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source (Option 080 recommended)
- N5242A - 419 - Adds 4-port extended power range, source and receiver attenuators, and bias-tees (requires Option 400)
- N5242A - 423 - Adds an internal combiner, and mechanical switches to the 4-port analyzer (requires Option 400, 419, and 080)

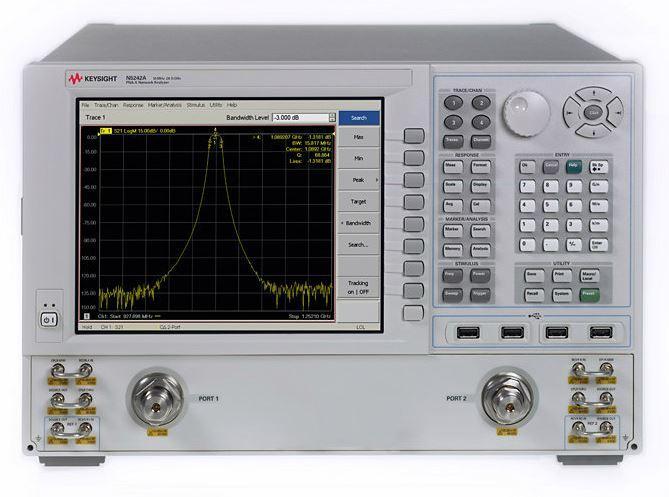

The Keysight (Agilent) N5242AS-285 is a 2-port microwave vector network analyzer offering enhanced high-power testing up to +43 dBm with excellent dynamic range and output capability.
It supports frequency coverage from 10 MHz to 26.5 GHz, making it ideal for amplifier and pulsed RF device characterization.
Testwall can supply the used Keysight (Agilent) N5242AS-285, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5242AS-285.
