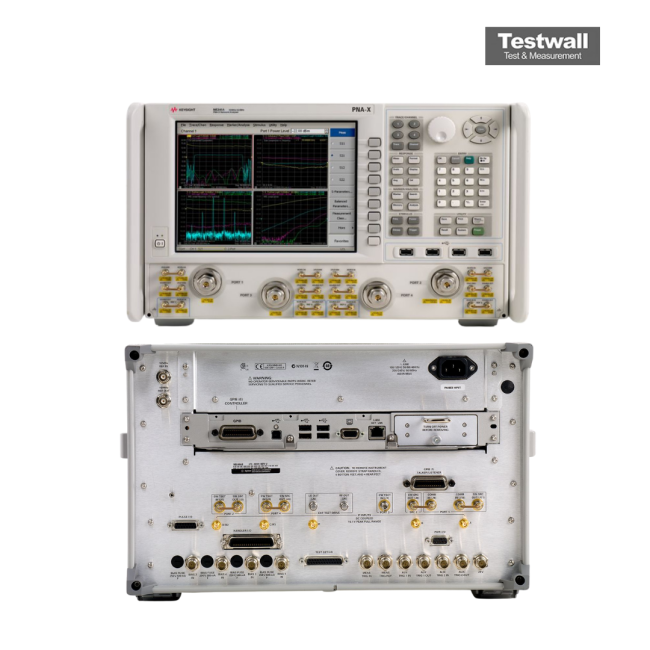

Keysight (Agilent) N5249A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 8.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 122 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise (Magnitude) | 0.001 dB RMS at 10 Hz IF bandwidth |
| Connector Type | 3.5 mm (f) or Type-N (f) |
| IF Bandwidth | 1 Hz to 15 MHz |
| Measurement Parameters | S-parameters, impedance, admittance, group delay, phase, and mixed-mode parameters |
| Test Port Power Accuracy | ±0.5 dB |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Display | 10.4" LCD, 1024×768 |
| Interfaces | LAN, USB, GPIB |
Available configurations
| Model | Ports | Frequency range | Configuration |
| N5249A-200 | 2 | 10 MHz to 8.5 GHz | configurable test set |
| N5249A-219 | 2 | 10 MHz to 8.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5249A-224 | 2 | 10 MHz to 8.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees, second internal source, internal combiner and switches |
| N5249A-400 | 4 | 10 MHz to 8.5 GHz | configurable test set |
| N5249A-419 | 4 | 10 MHz to 8.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5249A-423 | 4 | 10 MHz to 8.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees, internal combiner and switches |
Keysight (Agilent) N5249A Options:
- N5227A - 210 - 2-port, single source, with metrology configuration
- N5227A - 410 - 4-port, dual source, with metrology configuration
The Keysight (Agilent) N5249A PNA-X Microwave Network Analyzer offers 10 MHz to 8.5 GHz frequency range, 2 to 4 ports, and 3.5 mm male connectors. It supports S-parameters, noise figure, and non-linear analysis, all within one integrated device with dual signal sources and receivers.
Perfect for testing amplifiers, mixers, and converters, it simplifies setups, reduces costs, and ensures quick, accurate linear and nonlinear measurements with minimal power use.
Testwall can supply the used Keysight (Agilent) N5249A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5249A.
