Keysight (Agilent)

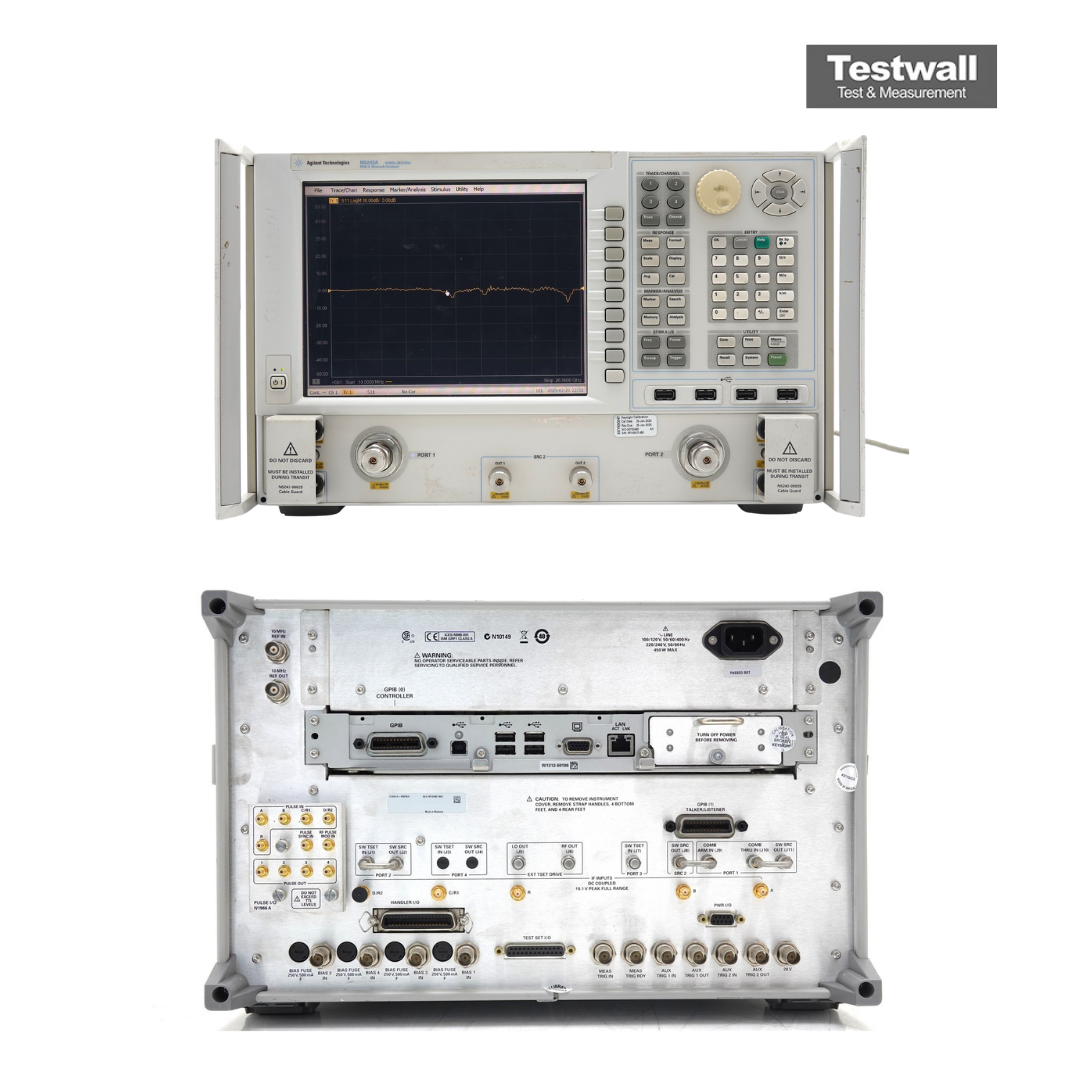

Keysight (Agilent) N5244A-200
2-Port, 43.5 GHz PNA-X Network Analyzer
10 MHz to 43.5 GHz Frequency Range
4 Number of Ports
Up to 123 dB Dynamic Range
-85 dBm to +10 dBm Output Power Range
0.004 dB RMS Trace Noise
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 43.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 123 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise | 0.004 dB RMS |
| Connector Type | 2.4 mm (male) |
| IF Bandwidth | 1 Hz to 15 MHz |
| Option Description | Option 200: Configurable Test Set with Direct Receiver Access |
| Measurement Speed | Up to 42 µs per point |
| Operating Temperature | 0°C to 55°C |
Keysight Technologies N5244A-200 Options:
- N5244A-200 - 200 - 2-port standard test set (includes six front-panel access loops) and power range
- N5244A-200 - 219 - Adds 2-port extended power range, source and receiver attenuators, and bias-tees (requires Option 200)
- N5244A-200 - 224 - Adds an internal second source, a combiner, and mechanical switches to the 2-port analyzer (requires Option 200, 219, and 080)
- N5244A-200 - 400 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source (Option 080 recommended)
- N5244A-200 - 419 - Adds 4-port extended power range, source and receiver attenuators, and bias-tees (requires Option 400)
- N5244A-200 - 423 - Adds an internal combiner, and mechanical switches to the 4-port analyzer (requires Option 400, 419, and 080)
- N5244A-200 - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires one of Option 224 or 423)
- N5244A-200 - 021 - Adds pulse modulators
- N5244A-200 - 022 - Adds pulse modulators
- N5244A-200 - 025 - Adds 4 pulse generators
- N5244A-200 - 080 - Internal second source (recommended with Option 400)
| Model | N5244A-200 |
|---|
The Keysight (Agilent) N5244A-200 is a 2-port PNA-X analyzer optimized for operations up to 43.5 GHz, with rugged 2.4 mm ports and a single internal source (Option 200).
It provides a system dynamic range of ~126 dB and up to +18 dBm output with 32,001 points and IF bandwidth to 15 MHz.
Testwall can supply the used Keysight (Agilent) N5244A-200, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5244A-200.
