Keysight (Agilent) N5439A
| Attribute | Value |
|---|---|
| Product Function | De-embedding and Embedding Software for Infiniium Oscilloscopes |
| Compatible Instruments | Keysight Infiniium Series Oscilloscopes |
| Software Type | License-based software option / application |
| Primary Capability | Removes fixture and probe effects from measurements; embeds virtual components into signal path |
| S-Parameter Support | Supports S-parameter files (Touchstone .s2p format) for de-embedding networks |
| Filter Types Supported | Low-pass, high-pass, band-pass, and notch filters for embedding/de-embedding |
| Cascade Blocks | Supports cascading multiple de-embedding and embedding blocks in series |
| Application | Signal integrity analysis, PCB and connector characterization, compliance testing |
| License Type | Node-locked or floating license (installed on oscilloscope) |
| Operating System Compatibility | Compatible with Windows-based Infiniium oscilloscope operating environment |
| Model | N5439A |
|---|

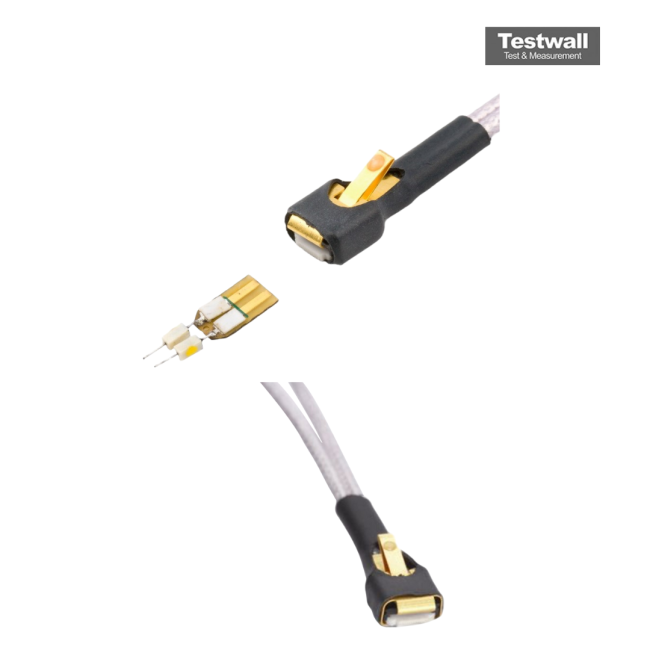

The Keysight (Agilent) N5439A ZIF probe head delivers 28 GHz bandwidth with minimal signal loading, featuring variable spacing from 0.127 mm to 2 mm. It supports hands-free probing with the N2787A positioner and works with all InfiniiMax III probe amplifiers. The probe head alone has a Tr of 20.9 psec and supports input voltages up to 2.5 Vpp depending on the tip configuration.
Used with compatible ZIF tips such as N5440A, N5447A, or N2838A, it enables stable high-frequency probing on ceramic and PC board materials, maintaining signal integrity across multiple probing points.
Testwall can supply the used Keysight (Agilent) N5439A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5439A.
