Tektronix P7240
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Rise Time | 87.5 ps |
| Input Voltage Range | ±10 V (with 1x attenuation) |
| Attenuation Ratio | 1x, 2x, 4x, 5x, 10x, 20x, 25x, 50x (software selectable) |
| Input Impedance | 50 Ω (at probe tip, matched to oscilloscope input) |
| Dynamic Range | ±10 V at 1x attenuation |
| Connector Type | SMA connector (ProBus interface compatible) |
| Compatible Oscilloscopes | Tektronix TDS6000, TDS7000, and CSA7000 series oscilloscopes |
| Cable Length | 1.2 m (approximately 4 ft) |
| Probe Type | Active Single-Ended Voltage Probe |
Tektronix P7240 Options:
- P7240 - C3 - Calibration Service 3 Years
- P7240 - C5 - Calibration Service 5 Years
- P7240 - D1 - Calibration Data Report
- P7240 - D3 - Calibration Data Report 3 Years (with Option C3)
- P7240 - D5 - Calibration Data Report 5 Years (with Option C5)
- P7240 - R3 - Repair Service 3 Years
- P7240 - R5 - Repair Service 5 Years
| Model | P7240 |
|---|

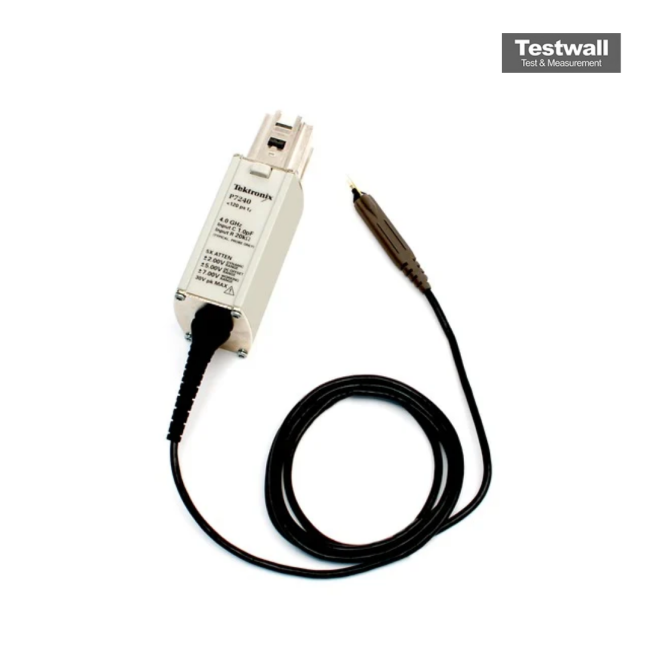

The Tektronix P7240 is a 4 GHz, 5X active FET probe featuring <120 ps rise time and <1 pF input capacitance, ensuring superior signal fidelity and low circuit loading. With a small form factor probe head and high input resistance, it offers seamless access to SMDs and compatibility with MSO/DPO/DSA70000 series oscilloscopes via the TekConnect™ Interface.
Designed for high-frequency measurements, the P7240 guarantees accurate signal reproduction across a wide bandwidth, making it ideal for advanced electronic diagnostics and testing scenarios.
Testwall can supply the used Tektronix P7240, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P7240.
