Keysight (Agilent) N6700C
| Attribute | Value |
|---|---|
| Number of Output Slots | 4 |
| Maximum Output Power | 400 W |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Form Factor | 2U Half-Rack (Modular Mainframe) |
| Interface/Connectivity | LAN (LXI), USB, GPIB (optional) |
| Display | Built-in front panel display with keypad control |
| Output Isolation | Outputs are isolated from chassis ground |
| Programming Language | SCPI (Standard Commands for Programmable Instruments) |
| Compatible Power Modules | N6720A–N6784A series plug-in modules |
| Operating Temperature | 0°C to 55°C |
Keysight (Agilent) N6700C Options:
- N6700C - N6709C - Rack mount kit (required for rack mounting; standard rack mount hardware will not work)
- N6700C - N6708A - Filler panel kit (required when less than 4 modules installed; each kit contains 3 filler panels)
- N6700C - OL1 - Full documentation on CD-ROM and printed users guide
- N6700C - 900 - Power cord, United Kingdom, P/N 8120-1351
- N6700C - 901 - Power cord, Australia, New Zealand, P/N 8120-1369
- N6700C - 902 - Power cord, Europe, Korea, P/N 8120-1689
- N6700C - 903 - Power cord, USA, Canada, 120 V, P/N 8120-4383
- N6700C - 904 - Power cord, USA, Canada, 240 V, P/N 8120-0698
- N6700C - 906 - Power cord, Switzerland, P/N 8120-2104
- N6700C - 912 - Power cord, Denmark, P/N 8120-2956
- N6700C - 917 - Power cord, South Africa, India, P/N 8120-4211
- N6700C - 918 - Power cord, Japan, 100 V, P/N 8120-5342
- N6700C - 919 - Power cord, Israel, P/N 8120-6800
- N6700C - 920 - Power cord, Argentina, P/N 8120-6869
- N6700C - 921 - Power cord, Chile, P/N 8120-6980
- N6700C - 922 - Power cord, China, P/N 8120-8376
- N6700C - 927 - Power cord, Thailand, Brazil, P/N 8120-8871
| Model | N6700C |
|---|

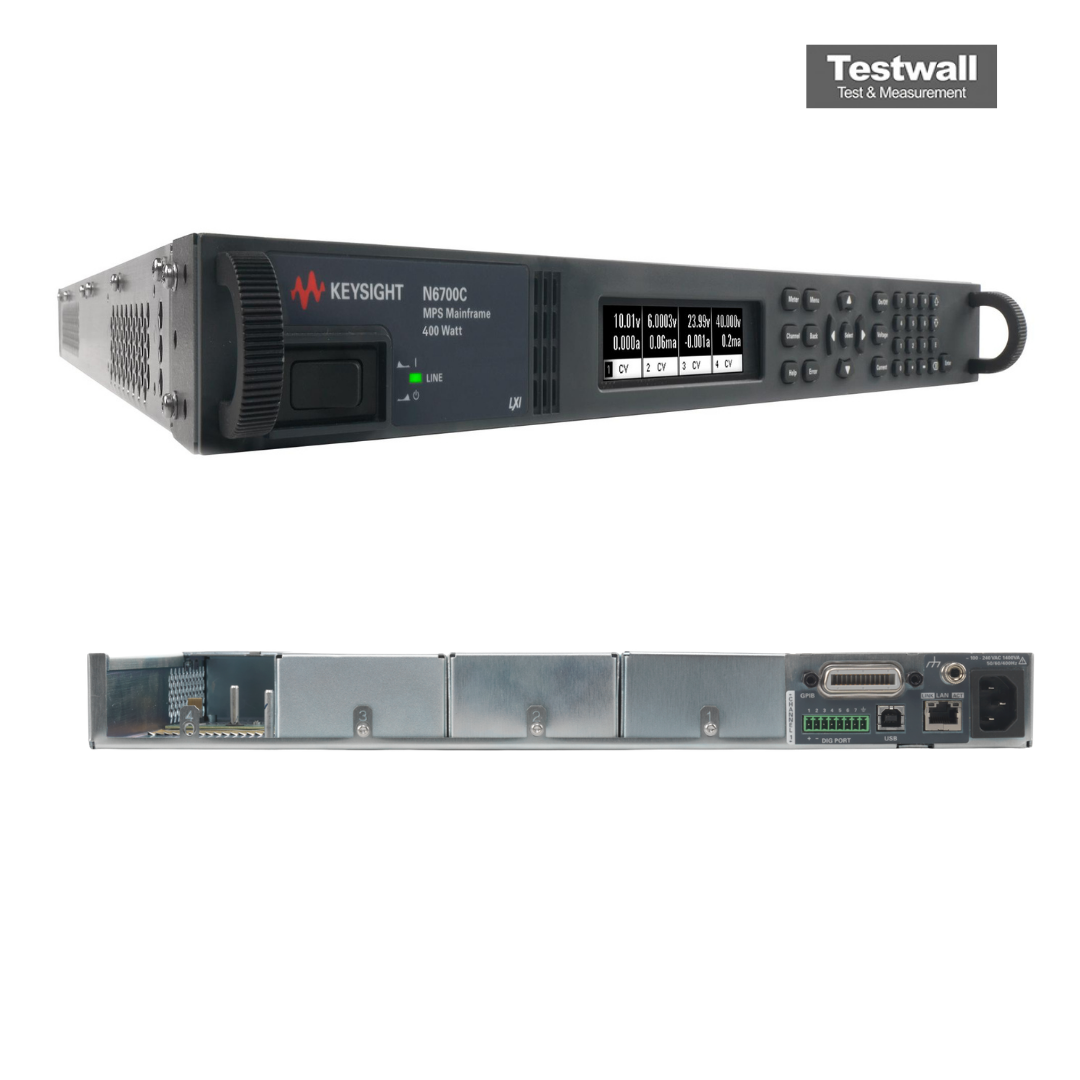

The Keysight (Agilent) N6700C Power Supply Mainframe is a 1U high, multi-output programmable DC system enabling flexible configurations of 1 to 4 channels with over 30 power module options. It includes integrated GPIB, USB 2.0, and LAN interfaces, and supports voltage/current measurement, delayed startup, and system-wide output sequencing with synchronization across multiple units.
Ideal for test systems requiring tailored performance—basic or high-end—this unit supports universal AC input (100–240 Vac, 50/60/400 Hz) with power factor correction and zero manual switching.
Testwall can supply the used Keysight (Agilent) N6700C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6700C.
