Keysight (Agilent) N6701C
| Attribute | Value |
|---|---|
| Number of Output Channels | Up to 4 channels (modular, accepts up to 4 single-width or 2 double-width power modules) |
| Maximum Output Power | Up to 600W total system output power |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Interface / Connectivity | GPIB, LAN (LXI Core 2011), USB; supports SCPI programming |
| Form Factor | 2U half-rack mainframe (can be rack-mounted) |
| Compatible Power Modules | Accepts N673xB, N674xB, N675xA, N676xA, and N677xA series plug-in modules |
| Output Voltage Range | Dependent on installed modules; ranges from 0–8V up to 0–60V depending on module selection |
| Output Current Range | Dependent on installed modules; up to 50A per channel depending on module selection |
| Measurement Capabilities | Built-in voltage and current measurement with data logging and sequencing functionality |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Model | N6701C |
|---|

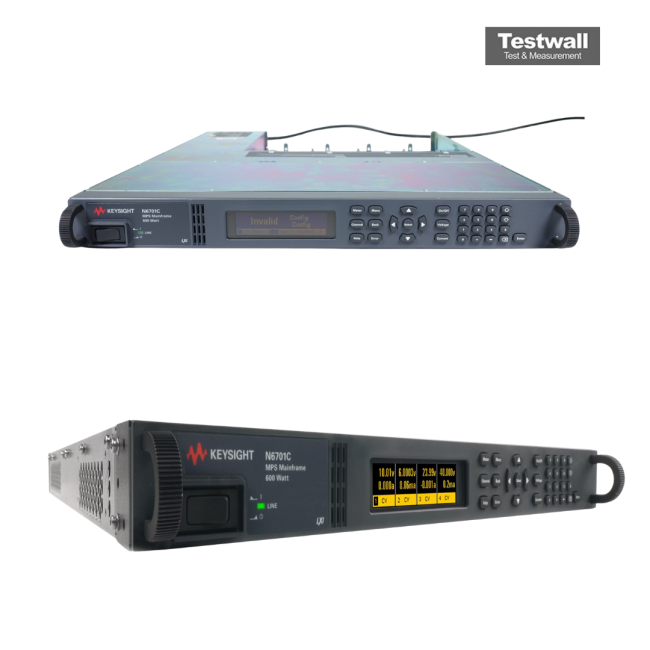

The Keysight (Agilent) N6701C is a compact 600 W, 1U high, 4-slot modular power system mainframe compatible with over 30 N6700 series DC modules, supporting power ranges from 20 to 500 W. It features GPIB, LAN, USB interfaces and is LXI compliant. It accepts 1 to 4 modules with a total combined output power up to 600 W from 100–240 VAC input.
Ideal for test system integration, the N6701C provides swift shutdown response—5 µs for inhibit signal and under 10 µs for output faults. Modules are ordered separately.
Testwall can supply the used Keysight (Agilent) N6701C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6701C.
