Keysight (Agilent) N6705C
| Attribute | Value |
|---|---|
| Number of Output Slots | 4 |
| Maximum Output Power | 600 W total (up to 500 W per slot) |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Display | 4.3-inch color LCD touchscreen |
| Interfaces | GPIB, USB, LAN (LXI Core 2011) |
| Measurement Logging | Up to 512K data points per channel with built-in data logger |
| Voltage Measurement Resolution | Up to 18-bit resolution (module dependent) |
| Current Measurement Resolution | Up to 18-bit resolution (module dependent) |
| Operating Temperature | 0°C to 55°C |
| Form Factor / Dimensions | 2U half-rack (88.5 mm H × 212.6 mm W × 497.8 mm D) |
Keysight (Agilent) N6705C Options:
- N6705C - 1CM113A - Rack mount kit
- N6705C - AKY - Delete front/rear USB (removes all USB capability from the DC power analyzer)
- N6705C - 055 - Delete data logger (disables data logger functionality in firmware)
- N6705C - 056 - Software license (provides a license to control one N6705 mainframe using the 14585A Control & Analysis software)
- N6705C - ABA - Full documentation on CD-ROM and printed users guide
- N6705C - RBP - Recessed binding post
- N6705C - 900 - Power cord, United Kingdom, P/N 8120-1351
- N6705C - 901 - Power cord, Australia, New Zealand, P/N 8120-1369
- N6705C - 902 - Power cord, Europe, Korea, P/N 8120-1689
- N6705C - 903 - Power cord, USA, Canada, 120 V, P/N 8120-4383
- N6705C - 904 - Power cord, USA, Canada, 240 V, P/N 8120-0698
- N6705C - 906 - Power cord, Switzerland, P/N 8120-2104
- N6705C - 912 - Power cord, Denmark, P/N 8120-2956
- N6705C - 917 - Power cord, South Africa, India, P/N 8120-4211
- N6705C - 918 - Power cord, Japan, 100 V, P/N 8120-5342
- N6705C - 919 - Power cord, Israel, P/N 8120-6800
- N6705C - 920 - Power cord, Argentina, P/N 8120-6869
- N6705C - 921 - Power cord, Chile, P/N 8120-6980
- N6705C - 922 - Power cord, China, P/N 8120-8376
- N6705C - 927 - Power cord, Thailand, Brazil, P/N 8120-8871
- N6705C - N6705U-001 - Upgrade: Add data logger (activates data logger functionality in firmware)
- N6705C - N6705U-056 - Upgrade: Software license to control one N6705 mainframe using the 14585A Control & Analysis Software
| Model | N6705C |
|---|

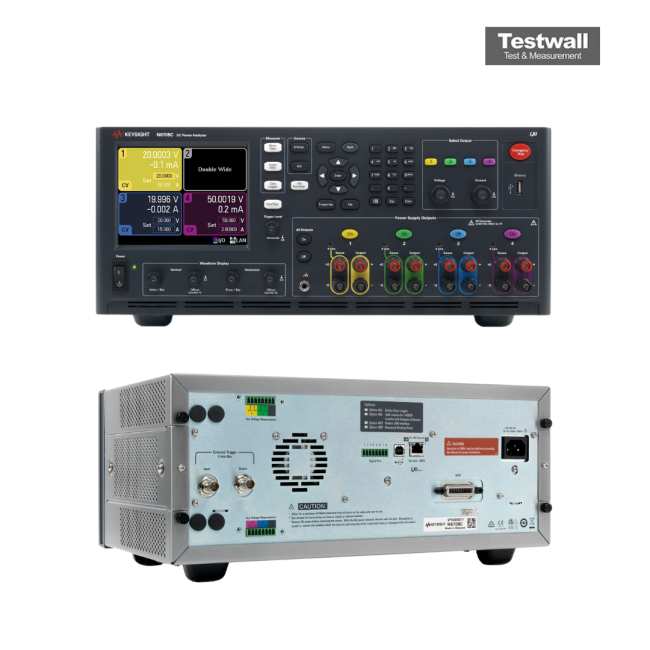

The Keysight (Agilent) N6705C DC Power Analyzer integrates up to four advanced power supply functions, including a DMM, scope, arbitrary waveform generator, and data logger. With up to 0.025% ammeter and voltmeter accuracy, 18-bit resolution, and measurement intervals from 20 µs to 60 seconds, it ensures high-precision analysis. The device supports digitization up to 200 kHz and 512 kpts, and outputs up to 500 W with bandwidth up to 100 kHz.
It features intuitive front-panel control, a large color display, and connectivity via GPIB, USB, LAN, and LXI. The analyzer supports PathWave BenchVue and 14585A software for enhanced automation and data analysis.
Testwall can supply the used Keysight (Agilent) N6705C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6705C.
