Keysight (Agilent)
Keysight (Agilent) N6710A
Base Model Custom Figure MPS
4 Number of Output Slots
400 W Maximum Output Power
100–240 VAC, 50/60 Hz Input Voltage
2U Half-Rack Mainframe Form Factor
GPIB, LAN (LXI Core), USB Interface
| Attribute | Value |
|---|---|
| Number of Output Slots | 4 |
| Maximum Output Power | 400 W |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Form Factor | 2U Half-Rack Mainframe |
| Interface | GPIB, LAN (LXI Core), USB |
| Compatible Module Series | N6700 Series Power Modules |
| Output Isolation | Outputs are isolated from chassis ground |
| Measurement Capabilities | Voltage and Current Measurement on all outputs |
| Operating Temperature | 0°C to 55°C |
| Regulatory Compliance | CE, CSA, UL, IEC 61010-1 |
Keysight Technologies N6710A Options:
- N6710A - 908 - Rack Mount Kit (Required for rack mounting; standard rack mount hardware will not work)
- N6710A - 0L1 - Full documentation on CD-ROM and printed Users Guide
- N6710A - 0B0 - Full documentation on CD-ROM only; no printed documentation package
- N6710A - 900 - Power Cord, United Kingdom, P/N 8120-1351
- N6710A - 901 - Power Cord, Australia, P/N 8120-1369
- N6710A - 902 - Power Cord, Europe, P/N 8120-1689
- N6710A - 903 - Power Cord, USA, Canada, 120 V, P/N 8120-4383
- N6710A - 904 - Power Cord, USA, Canada, 240 V, P/N 8120-0698
- N6710A - 906 - Power Cord, Switzerland, P/N 8120-2104
- N6710A - 912 - Power Cord, Denmark, P/N 8120-2956
- N6710A - 917 - Power Cord, South Africa, India, P/N 8120-4211
- N6710A - 918 - Power Cord, Japan, P/N 8120-4753
- N6710A - 919 - Power Cord, Israel, P/N 8120-6800
- N6710A - 920 - Power Cord, Argentina, P/N 8120-6869
- N6710A - 921 - Power Cord, Chile, P/N 8120-6980
- N6710A - 922 - Power Cord, China, P/N 8120-8376
- N6710A - 927 - Power Cord, Thailand, P/N 8120-8871
- N6710A - N6731B-ATO - 5 V, 10 A, 50 W DC Power Module
- N6710A - N6732B-ATO - 8 V, 6.25 A, 50 W DC Power Module
- N6710A - N6733B-ATO - 20 V, 2.5 A, 50 W DC Power Module
- N6710A - N6734B-ATO - 35 V, 1.5 A, 50 W DC Power Module
- N6710A - N6735B-ATO - 60 V, 0.8 A, 50 W DC Power Module
- N6710A - N6736B-ATO - 100 V, 0.5 A, 50 W DC Power Module
- N6710A - N6741B-ATO - 5 V, 20 A, 100 W DC Power Module
- N6710A - N6742B-ATO - 8 V, 12.5 A, 100 W DC Power Module
- N6710A - N6743B-ATO - 20 V, 5 A, 100 W DC Power Module
- N6710A - N6744B-ATO - 35 V, 3 A, 100 W DC Power Module
- N6710A - N6745B-ATO - 60 V, 1.6 A, 100 W DC Power Module
- N6710A - N6746B-ATO - 100 V, 1 A, 100 W DC Power Module
- N6710A - N6751A-ATO - 50 V, 5 A, 50 W High-Performance Autoranging DC Power Module
- N6710A - N6752A-ATO - 50 V, 10 A, 100 W High-Performance Autoranging DC Power Module
- N6710A - N6761B-ATO - 50 V, 1.5 A, 50 W Precision DC Power Module
- N6710A - N6762B-ATO - 50 V, 3 A, 100 W Precision DC Power Module
- N6710A - N6773A-ATO - 20 V, 15 A, 300 W DC Power Module
- N6710A - N6774A-ATO - 35 V, 8.5 A, 300 W DC Power Module
- N6710A - N6775A-ATO - 60 V, 5 A, 300 W DC Power Module
- N6710A - N6776A-ATO - 100 V, 3 A, 300 W DC Power Module
- N6710A - 761 - Output Disconnect Relays (available on all module types)
- N6710A - 760 - Output Disconnect and Polarity Reversal Relays (available on select modules)
- N6710A - 054 - High Speed Test Extensions (HSTE) (available on N6751A-ATO/N6752A-ATO; standard on N6761A-ATO/N6762A-ATO)
- N6710A - UK6 - Commercial calibration with test results data
- N6710A - 1A7 - ISO 17025 Calibration Certificate
| Model | N6710A |
|---|

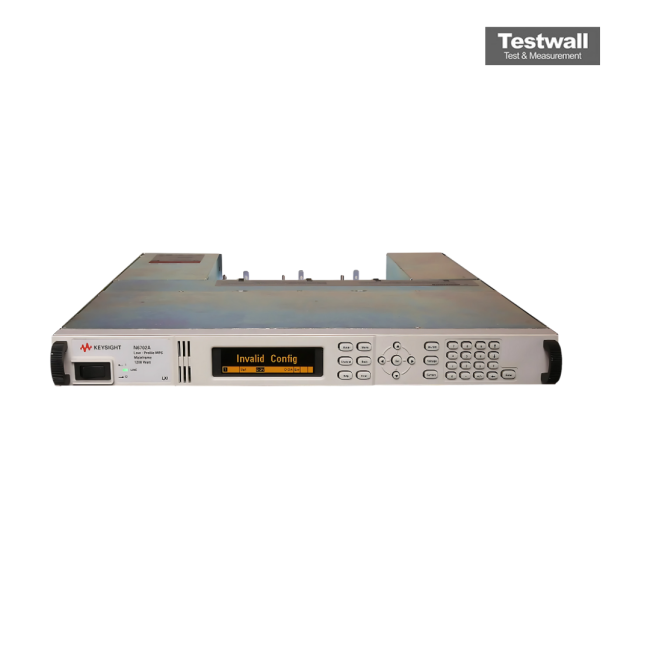

The Keysight (Agilent) N6710A is a modular power system base model, forming the foundation of a custom multiple-output power supply setup. It includes a N6700A mainframe without standard modules, allowing users to configure from 1 to 4 modules based on application requirements.
This build-to-order system is ideal for engineers needing tailored power configurations for R&D and test environments, offering flexibility and performance in one platform.
Testwall can supply the used Keysight (Agilent) N6710A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6710A.
