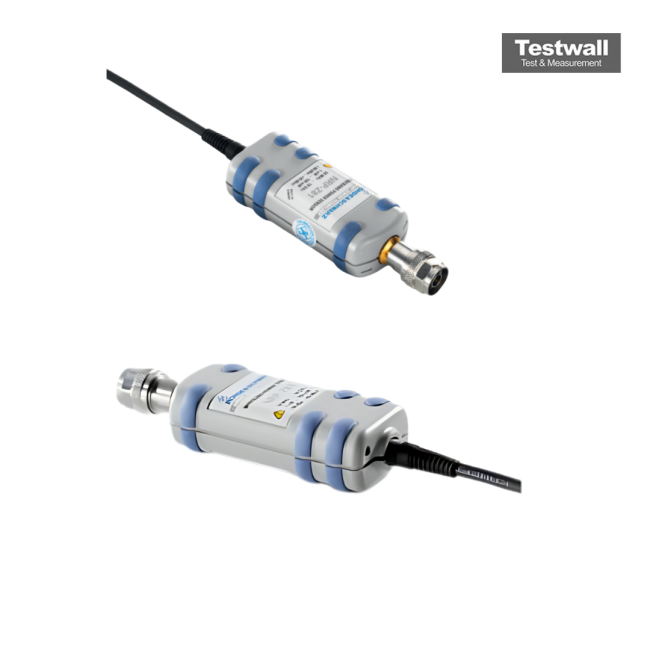

Rohde & Schwarz NRP-Z81
| Attribute | Value |
|---|---|
| Frequency Range | 50 MHz to 67 GHz |
| Power Measurement Range | -30 dBm to +20 dBm |
| Connector Type | 1.85 mm (V connector) |
| Measurement Uncertainty | ±0.9 dB (typical) |
| Interface | USB (compatible with R&S NRP2 and NRP-Z5 base units) |
| Sensor Type | Thermal (three-path diode power sensor) |
| Impedance | 50 Ohm |
| VSWR | ≤ 1.6 (typical, frequency dependent) |
| Operating Temperature Range | 0 °C to +55 °C |
| Video Bandwidth | 30 MHz (typical) |
| Model | NRP-Z81 |
|---|
The Rohde & Schwarz NRP-Z81 is a wideband power sensor with a frequency range from 50 MHz to 18 GHz and a dynamic measurement range of -60 dBm to +20 dBm. It features an N-type male connector and achieves measurement speeds above 9500 readings/s in buffered mode. With operation via the NRP2 base unit or USB interface, it is designed for high-speed, precise time-domain power measurements, especially in radar applications.
Its high 30 MHz video bandwidth, <13 ns rise/fall time, and integrated pulse analysis functions make it ideal for testing radar pulses, microwave link modules, and CDMA/OFDM signal components.
Testwall can supply the used Rohde & Schwarz NRP-Z81, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP-Z81.
