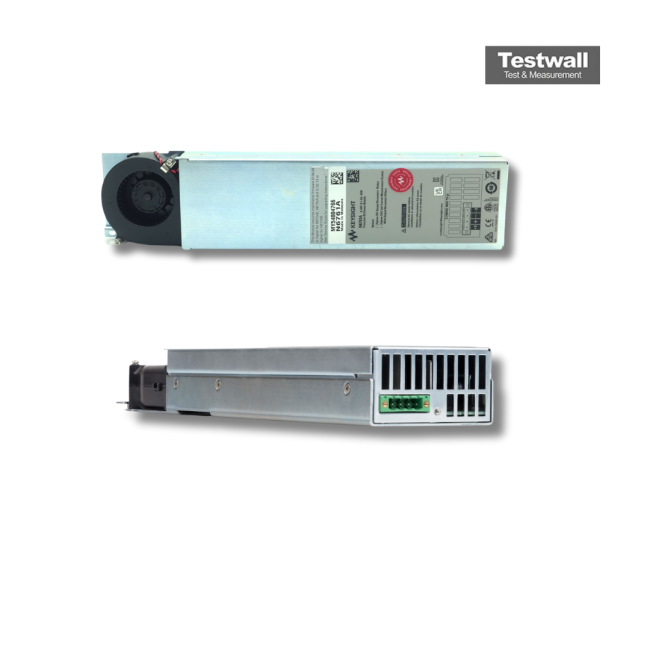

Keysight (Agilent) N6761A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 50 V |
| Output Current Range | 0 to 1.5 A |
| Maximum Output Power | 50 W |
| Voltage Programming Accuracy | 0.04% + 10 mV |
| Current Programming Accuracy | 0.04% + 1.5 mA |
| Output Ripple and Noise (Voltage, RMS) | 3 mV |
| Number of Output Channels | 1 |
| Form Factor | Single-slot module for Keysight N6700 Series Modular Power System |
| Interface/Connectivity | GPIB, LAN, USB (via N6700 mainframe) |
| Operating Temperature Range | 0°C to 55°C |
Keysight (Agilent) N6761A Options:
- N6761A - 760 - Output disconnect/polarity reversal relays
- N6761A - 761 - Output and sense disconnect relays
- N6761A - 2UA - 200 microampere measurement range (includes Option 761 relay capability)
| Model | N6761A |
|---|
The Keysight (Agilent) N6761A is a 50 W precision DC power module designed for low noise operation and high accuracy in current and voltage measurements. It supports digitization of voltage and current simultaneously and includes an oscilloscope-like data buffer for capturing measurement data. With option 2UA, it can measure down to 1 µA, ideal for leakage and sleep-mode current applications.
Compatible with both the compact N6700 system and the versatile N6705 DC Power Analyzer, the N6761A supports GPIB, LAN, USB, and LXI Class C standards, and integrates seamlessly into ATE or bench setups.
Testwall can supply the used Keysight (Agilent) N6761A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6761A.
