Keysight (Agilent) N6762A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20 V |
| Output Current Range | 0 to 10 A |
| Maximum Output Power | 100 W |
| Voltage Programming Accuracy | 0.05% + 10 mV |
| Current Programming Accuracy | 0.1% + 10 mA |
| Output Voltage Ripple and Noise (20 Hz to 20 MHz) | 3 mV rms / 15 mV peak-to-peak |
| Form Factor | Half-slot module for Keysight N6700 Series mainframe |
| Number of Channels | 1 |
| Programming Interface | GPIB, LAN, USB (via N6700 mainframe) |
| Operating Temperature Range | 0°C to 55°C |
Keysight (Agilent) N6762A Options:
- N6762A - 760 - Output disconnect/polarity reversal relays
- N6762A - 761 - Output disconnect relays
- N6762A - 2UA - 200 microampere measurement range (includes Option 761)
| Model | N6762A |
|---|

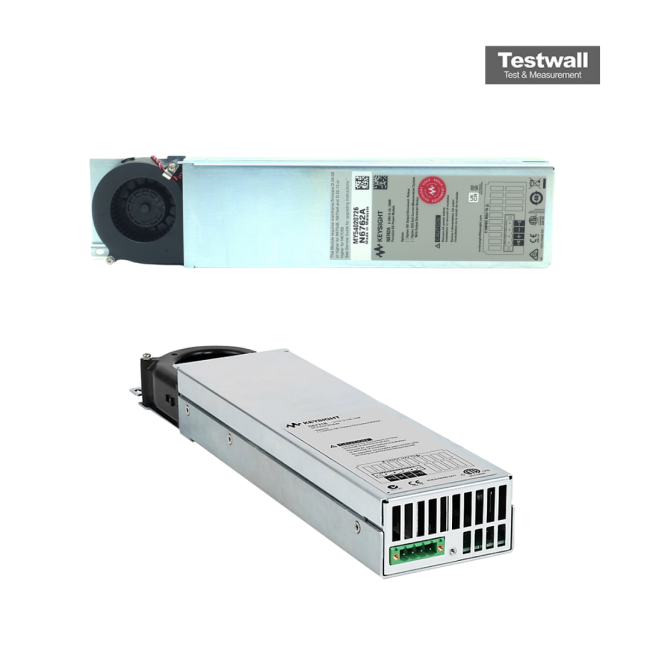

The Keysight (Agilent) N6762A is a 100 W precision DC power module with ultra-low noise and high accuracy, enabling voltage and current digitization in microampere regions. It offers simultaneous measurement capturing with oscilloscope-like buffer memory. This module supports 50 V, 3 A output with high programming accuracy and minimal ripple and noise.
Ideal for ATE systems and bench testing, the N6762A integrates with N6700 and N6705 systems. It includes GPIB, LAN, USB, and LXI Class C interfaces and supports options for ultra-low current measurements down to 1 µA.
Testwall can supply the used Keysight (Agilent) N6762A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6762A.
