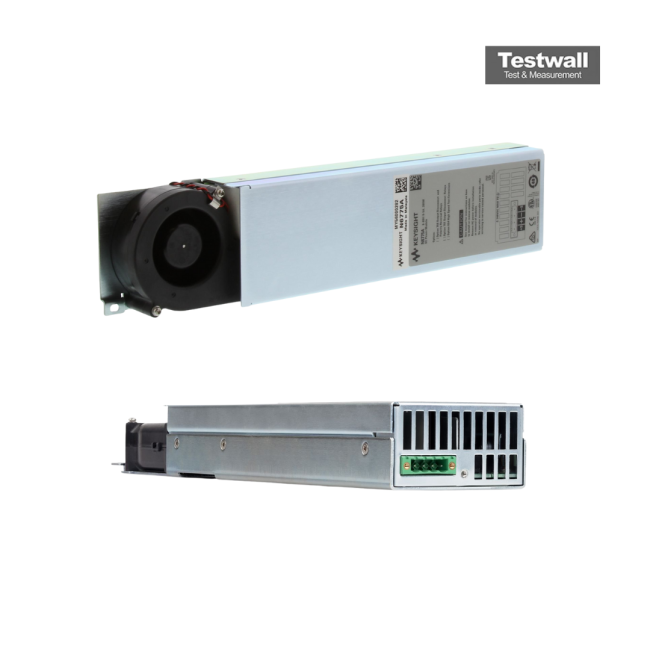

Keysight (Agilent) N6775A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20 V |
| Output Current Range | 0 to 12.5 A |
| Output Power | 250 W |
| Programming Voltage Accuracy | 0.04% + 10 mV |
| Programming Current Accuracy | 0.04% + 12.5 mA |
| Readback Voltage Accuracy | 0.04% + 10 mV |
| Readback Current Accuracy | 0.04% + 12.5 mA |
| Form Factor | Single-wide module for use in Keysight N6700 series mainframes |
| Output Isolation (from chassis ground) | ±60 V |
| Operating Temperature Range | 0°C to 55°C |
| Model | N6775A |
|---|
The Keysight (Agilent) N6775A is a 300 W DC power module offering 60 V and 5 A output with superior accuracy: 0.1% + 60 mV for voltage and 0.15% + 60 mA for current. Designed for integration into the N6700 and N6705 systems, it supports GPIB, LAN, USB, and complies with LXI Class C standards. With low ripple and noise (35 mV p-p, 9 mV rms voltage, 6 mA rms current), it is ideal for both ATE and bench environments.
This module is optimal for providing reliable power to DUTs or as a supply for ATE system elements such as fixture controls. It’s a budget-conscious solution without compromising on programmability or measurement features.
Testwall can supply the used Keysight (Agilent) N6775A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6775A.
