Keysight (Agilent)
Keysight (Agilent) N8731A
DC Power Supply, 8V, 400A, 3200W
20 V Output Voltage
50 A Output Current
1000 W Output Power
1 Number of Outputs
208 VAC / 400 VAC Input Voltage
| Attribute | Value |
|---|---|
| Output Voltage | 20 V |
| Output Current | 50 A |
| Output Power | 1000 W |
| Number of Outputs | 1 |
| Input Voltage | 208 VAC / 400 VAC |
| Input Frequency | 47 Hz to 63 Hz |
| Programming Interface | GPIB, LAN (LXI), USB |
| Form Factor | Rack Mount, 1U |
| Voltage Programming Accuracy | 0.05% + 10 mV |
| Current Programming Accuracy | 0.1% + 50 mA |
Keysight (Agilent) N8731A Options:
- N8731A - Opt 208 - 190-240 V, 3-phase AC, 50/60 Hz input (use with line cord Opt 861)
- N8731A - Opt 400 - 380-415 V, 3-phase AC, 50/60 Hz input (use with line cord Opt 862)
- N8731A - Opt 230 - 190-240 V, single-phase AC, 50/60 Hz input (use with line cord Opt 831 or 832)
- N8731A - Opt 861 - Unterminated line cord for 208 V 3-phase AC input voltage (Option 208)
- N8731A - Opt 862 - Unterminated line cord for 400 V 3-phase AC input voltage (Option 400)
- N8731A - Opt 831 - Unterminated line cord for 230 V single-phase AC input voltage (Option 230)
- N8731A - Opt 832 - Unterminated, harmonized line cord for Europe for 230 V single-phase AC input voltage (Option 230)
| Model | N8731A |
|---|

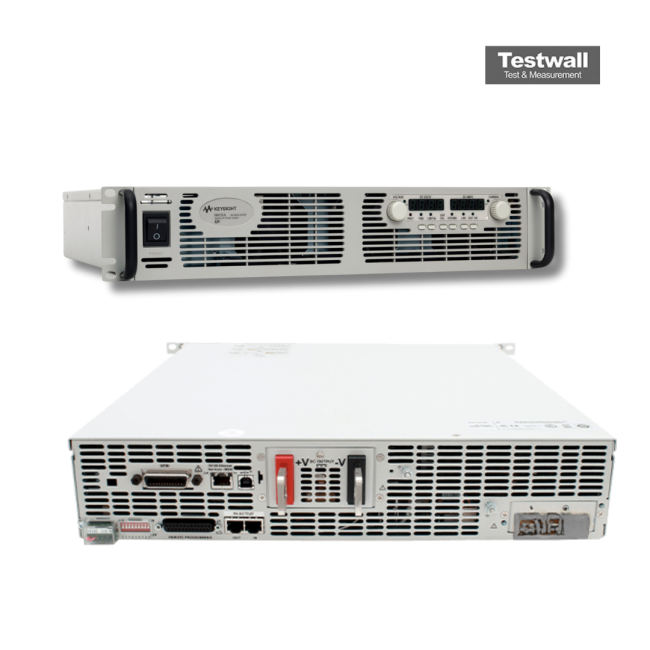

The Keysight (Agilent) N8731A is a compact DC power supply delivering 8 V, 400 A, and 3200 W in a 2U form factor. It offers analog/resistance control, flexible AC input options, and supports parallel/series configurations for increased output.
This unit is ideal for high-current applications with precise programming accuracy (0.05% + 4 mV voltage, 0.1% + 800 mA current) and low ripple noise (60 mV p-p, 8 mV rms).
Testwall can supply the used Keysight (Agilent) N8731A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N8731A.
