Tektronix CSA7404
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Sample Rate | 20 GS/s |
| Number of Channels | 4 |
| Record Length | Up to 32 MB per channel |
| Rise Time | 95 ps |
| Vertical Resolution | 8-bit (up to 11-bit with Hi Res mode) |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 10.4-inch color TFT LCD |
| Operating System | Windows 2000 |
| Connectivity | GPIB, RS-232, Ethernet, USB |
Tektronix CSA7404 Options:
- CSA7404 - Opt. 2M - Acquisition Record Length 8 Msamples
- CSA7404 - Opt. 3M - Acquisition Record Length 16 Msamples
- CSA7404 - Opt. 4M - Acquisition Record Length 32 Msamples
- CSA7404 - Opt. JT3 - Advanced Jitter Analysis
- CSA7404 - Opt. J1 - Jitter Analysis
- CSA7404 - Opt. J2 - Hard Disk Drive Measurement/Analysis
- CSA7404 - Opt. CP2 - ANSI/ITU Telecom Pulse Compliance
- CSA7404 - Opt. USB - USB2.0 Compliance, Used with USB Test Fixture
- CSA7404 - Opt. ET2 - Ethernet Compliance
- CSA7404 - Opt. PW2 - Power Measurement/Analysis
- CSA7404 - Opt. DVD - Optical Storage Analysis
- CSA7404 - Opt. UBF - USB2.0 Test Fixture, Used with Software
- CSA7404 - Opt. 51 - Add (1) P7240 4 GHz Active Probe
- CSA7404 - Opt. 52 - Add (1) P7330 3.5 GHz Differential Probe
- CSA7404 - Opt. 1K - K4000 Scope Cart (Mounting)
- CSA7404 - Opt. 1R - Rackmount Kit
- CSA7404 - Opt. C3 - Calibration Service 3 Years
- CSA7404 - Opt. C5 - Calibration Service 5 Years
- CSA7404 - Opt. D1 - Calibration Data Report
- CSA7404 - Opt. D3 - Calibration Data Report 3 Years (with Option C3)
- CSA7404 - Opt. D5 - Calibration Data Report 5 Years (with Option C5)
- CSA7404 - Opt. R3 - Repair Service 3 Years
- CSA7404 - Opt. R5 - Repair Service 5 Years
- CSA7404 - Opt. A0 - US Plug, 115 V, 60 Hz
- CSA7404 - Opt. A1 - Euro Plug, 220 V, 50 Hz
- CSA7404 - Opt. A2 - UK Plug, 240 V, 50 Hz
- CSA7404 - Opt. A3 - Australian Plug, 240 V, 50 Hz
- CSA7404 - Opt. A5 - Swiss Plug, 220 V, 50 Hz
- CSA7404 - Opt. A99 - No Power Cord
- CSA7404 - Opt. AC - China Plug, 50 Hz
| Model | CSA7404 |
|---|

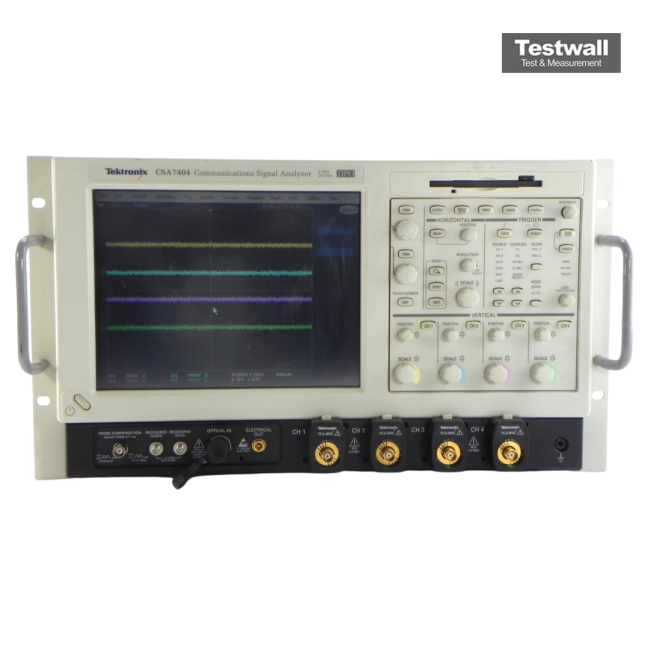

The Tektronix CSA7404 Communications Signal Analyzer offers 4 analog channels with a 4 GHz bandwidth, 100 ps typical rise time, and 8-bit vertical resolution, expandable to over 11 bits with averaging. It supports input sensitivity from 2 mV/div to 1 V/div and an input impedance of 50 Ohm.
This analyzer handles a max input voltage of <1 VRMS for <100 mV/div and <5 VRMS for ≥100 mV/div, with optical channel bandwidth of 2.4 GHz and input range of 10 uW/div to 500 uW/div.
Testwall can supply the used Tektronix CSA7404, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix CSA7404.
