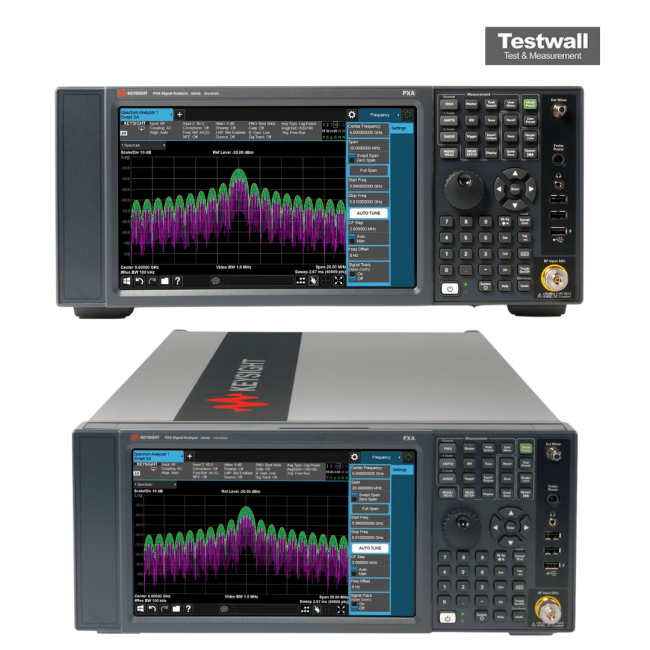

Keysight (Agilent) N9030B-503
| Attribute | Value |
|---|---|
| Frequency Range | 3 Hz to 3.6 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (with preamplifier enabled) |
| Phase Noise | -108 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.19 dB total amplitude accuracy |
| Dynamic Range | Up to 78 dB third-order intermodulation dynamic range |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz (in 10% steps), plus 4, 5, 6, 8 MHz |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Sweep Time | 1 ms to 4000 s (span > 0 Hz) |
| Preamplifier Frequency Coverage | 100 kHz to 3.6 GHz (internal preamplifier included) |
Keysight Technologies N9030B-503 Options:
- N9030B-503 - P03 - Preamplifier, 100 kHz to 3.6 GHz
- N9030B-503 - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9030B-503 - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9030B-503 - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9030B-503 - P44 - Preamplifier, 100 kHz to 44 GHz
- N9030B-503 - P50 - Preamplifier, 100 kHz to 50 GHz
- N9030B-503 - EA3 - Electronic attenuator up to 3.6 GHz; 1 dB steps, 0 to 24 dB
- N9030B-503 - B40 - 40 MHz analysis bandwidth
- N9030B-503 - B85 - 85 MHz analysis bandwidth
- N9030B-503 - B1X - 160 MHz analysis bandwidth
- N9030B-503 - B2X - 255 MHz analysis bandwidth (requires Options EP0 and MPB)
- N9030B-503 - B5X - 510 MHz analysis bandwidth (requires Options EP0 and MPB)
- N9030B-503 - MPB - Microwave preselector bypass
- N9030B-503 - EP0 - Enhanced phase noise, DDS LO
- N9030B-503 - LNP - Low noise path
- N9030B-503 - EXM - External mixing
- N9030B-503 - FP2 - Fast power; accelerates power measurements such as ACPR
- N9030B-503 - BBA - I/Q baseband inputs, analog; single-ended/differential, 50 Ω/1 MΩ impedance
- N9030B-503 - RT1 - Real-time analysis up to maximum available BW, basic detection
- N9030B-503 - RT2 - Real-time analysis up to maximum available BW, optimum detection
- N9030B-503 - RTR - Real-time spectrum recorder and analyzer application
- N9030B-503 - RTS - Real-time I/Q data streaming
- N9030B-503 - FT1 - Frequency mask trigger, basic detection
- N9030B-503 - FT2 - Frequency mask trigger, optimum detection
- N9030B-503 - EMC - Basic EMI precompliance
- N9030B-503 - EDP - Enhanced display package; includes spectrogram, trace zoom, and zone span
- N9030B-503 - ESC - External source control for Keysight EXG, MXG, and PSG signal generators
- N9030B-503 - SSD - Additional removable solid-state drive
- N9030B-503 - SF1 - Exclude launch program; prevents launching of Windows programs from instrument application
- N9030B-503 - SF2 - Prohibit saving results; prevents saving/recall of measurement results or user configurations
- N9030B-503 - CR3 - Second IF output; wideband IF out
- N9030B-503 - CRP - Arbitrary IF out; 10 to 75 MHz in 500 kHz steps
- N9030B-503 - YAV - Y-axis video out; screen video (0-1 volt open circuit)
- N9030B-503 - ALV - Aux log video out; fast rise time video out
- N9030B-503 - UK6 - Commercial calibration certificate with test data
- N9030B-503 - AMG - Keysight Calibration + Uncertainties + Guardbanding (accredited cal)
- N9030B-503 - A6J - ANSI Z540-1-1994 Calibration
| Model | N9030B-503 |
|---|
The Keysight (Agilent) N9030B-503 delivers advanced signal analysis with a 3.6 GHz frequency range and 160 MHz standard analysis bandwidth, expandable to 1 GHz. Designed with a high-performance front end and real-time analysis features, it enables precise signal capture. The 14.1″ intuitive touchscreen interface enhances usability while offering seamless integration with 89600 VSA software and upgrade flexibility via license keys or hardware.
Perfect for labs requiring cutting-edge performance, this model offers intuitive control, exceptional linearity, and scalable apps, making it a versatile solution for evolving RF environments.
Testwall can supply the used Keysight (Agilent) N9030B-503, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9030B-503.
