Keysight (Agilent)

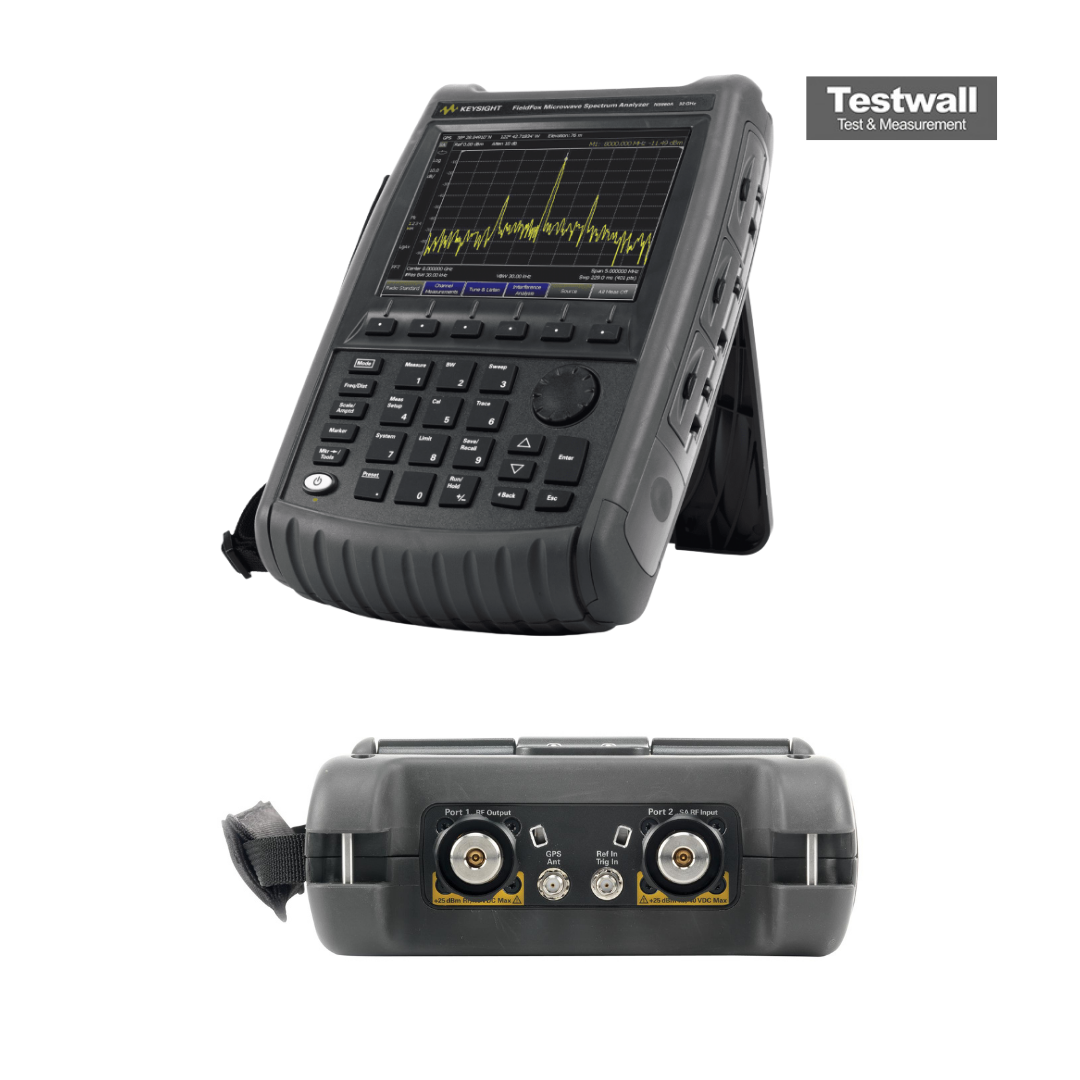

Keysight (Agilent) N9960A
FieldFox Handheld Microwave Spectrum Analyser, 5 kHz - 32 GHz
100 kHz to 32 GHz Frequency Range
Handheld Spectrum Analyzer / Field Analyzer Instrument Type
Up to 108 dB Dynamic Range
800 x 480 pixels, 6.5-inch color LCD touchscreen Display Resolution
-100 dBc/Hz at 10 kHz offset (typical) Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 32 GHz |
| Instrument Type | Handheld Spectrum Analyzer / Field Analyzer |
| Dynamic Range | Up to 108 dB |
| Display Resolution | 800 x 480 pixels, 6.5-inch color LCD touchscreen |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical) |
| DANL (Displayed Average Noise Level) | -163 dBm/Hz (typical, with preamp on) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Battery Life | Up to 4 hours of continuous operation with internal battery |
| Operating Temperature | -10°C to +55°C |
| Weight | Approximately 4.1 kg (9 lbs) |
Keysight (Agilent) N9960A Options:
- N9960A - 010 - VNA Time Domain
- N9960A - 030 - Remote Control Capability (iOS device control via FieldFox app)
- N9960A - 100 - Fast CPU Upgrade (N9910HU-100)
- N9960A - 200 - Fast CPU Upgrade (N9910HU-200)
- N9960A - 300 - Fast CPU Upgrade (N9910HU-300)
- N9960A - 208 - USB Power Sensor Measurements versus Frequency
- N9960A - 209 - Extended Range Transmission Analysis (ERTA)
- N9960A - 212 - Mixed-Mode S-Parameters
- N9960A - 233 - Spectrum Analyzer
- N9960A - 235 - Preamplifier
- N9960A - 236 - Interference Analyzer and Spectrogram
- N9960A - 238 - Spectrum Analyzer Time Gating
- N9960A - 302 - External USB Power Sensor Support
- N9960A - 307 - Built-In GPS Receiver
- N9960A - 308 - Vector Voltmeter (VVM)
- N9960A - 309 - DC Bias Variable-Voltage Source
- N9960A - 310 - Built-in Power Meter
- N9960A - 312 - Channel Scanner
- N9960A - 320 - Reflection Measurements (RL, VSWR)
- N9960A - 330 - Pulse Measurements
- N9960A - 350 - Real-Time Spectrum Analyzer (RTSA)
- N9960A - 351 - I/Q Analyzer (IQA)
- N9960A - 355 - AM/FM Analog Demodulation, Tune and Listen
- N9960A - 356 - Noise Figure (NF)
- N9960A - 370 - Over-the-Air (OTA) LTE FDD
- N9960A - 377 - Over-the-Air (OTA) 5GTF
| Model | N9960A |
|---|
The Keysight (Agilent) N9960A FieldFox Analyzer is a 3.2 kg portable unit delivering accurate spectrum analysis (± 0.5 dB), 10 MHz gap-free real-time bandwidth, and radar pulse characterization. Includes GPS/GNSS support and I/Q data capture.
Ideal for 5G TF, LTE, and RF monitoring tasks, it also comes with an AC/DC adapter, Li-ion battery, LAN cable, and a rugged carrying case.
Testwall can supply the used Keysight (Agilent) N9960A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9960A.
