Keysight (Agilent) N9030B-550
50 GHz PXA Signal Analyzer, 2.4 mm (m)
3 Hz to 50 GHz Frequency Range
-163 dBm/Hz (typical, preamp on, 1 GHz) Displayed Average Noise Level (DANL)
-136 dBc/Hz at 1 GHz carrier, 10 kHz offset (typical) Phase Noise
±0.19 dB total amplitude accuracy (typical) Amplitude Accuracy
Up to 78 dB third-order intermodulation dynamic range Dynamic Range
| Attribute | Value |
|---|---|
| Frequency Range | 3 Hz to 50 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical, preamp on, 1 GHz) |
| Phase Noise | -136 dBc/Hz at 1 GHz carrier, 10 kHz offset (typical) |
| Amplitude Accuracy | ±0.19 dB total amplitude accuracy (typical) |
| Dynamic Range | Up to 78 dB third-order intermodulation dynamic range |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| RF Input Connector | 2.4 mm (f) connector |
| Spurious Free Dynamic Range (SFDR) | Up to 100 dB spurious-free dynamic range |
Keysight Technologies N9030B-550 Options:
- N9030B-550 - P03 - Preamplifier, 100 kHz to 3.6 GHz
- N9030B-550 - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9030B-550 - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9030B-550 - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9030B-550 - P50 - Preamplifier, 100 kHz to 50 GHz
- N9030B-550 - EA3 - Electronic attenuator up to 3.6 GHz; add in addition to the mechanical attenuator; 1 dB steps, 0 to 24 dB
- N9030B-550 - B40 - 40 MHz analysis bandwidth; extends the analysis bandwidth from 25 to 40 MHz (Option MPB required for measurements > 3.6 GHz)
- N9030B-550 - B85 - 85 MHz analysis bandwidth; extends the analysis bandwidth from 25 to 85 MHz (Option MPB required for measurements > 3.6 GHz)
- N9030B-550 - B1X - 160 MHz analysis bandwidth; extends analysis bandwidth from 25 to 160 MHz (Option MPB required for measurements > 3.6 GHz)
- N9030B-550 - MPB - Microwave preselector bypass; bypass the microwave preselector for wider bandwidth IF
- N9030B-550 - LNP - Low noise path; improves sensitivity (DANL) in frequency bands above 3.6 GHz
- N9030B-550 - EXM - External mixing; provides external mixing with Keysight and third party mixers; single port for LO out and IF in (SMA female)
- N9030B-550 - FP2 - Fast power; accelerates power measurements such as ACPR; requires Option B40, B85, B1X, B2X, or B5X
- N9030B-550 - RT1 - Real-time analysis up to maximum available BW, basic detection; includes frequency mask trigger; minimum 17.3 µs signal duration for 100% POI; requires bandwidth Option B85, B1X, B2X, or B5X
- N9030B-550 - RT2 - Real-time analysis up to maximum available BW, optimum detection; includes frequency mask trigger; minimum 3.57 µs signal duration for 100% POI; requires bandwidth Option B85, B1X, B2X, or B5X
- N9030B-550 - RTR - Real-time spectrum recorder and analyzer application; enables recording, analyzing and playback of spectrum density data; requires Option RT1 or RT2
- N9030B-550 - RTS - Real-time I/Q data streaming; stream gap-free 16 bit I/Q data up to 255 MHz bandwidth for offline analysis; requires N9030B-RT1 or N9030B-RT2
- N9030B-550 - FT1 - Frequency mask trigger, basic detection; enables frequency mask triggering with N9067C pulse application and 89600 VSA software to detect signals as short as 15 µs duration
- N9030B-550 - FT2 - Frequency mask trigger, optimum detection; enables frequency mask triggering with N9067C pulse application and 89600 VSA software to detect signals as short as 3.6 µs duration
- N9030B-550 - EMC - Basic EMI precompliance; perform EMI precompliance measurements with CISPR 16-1-1 detectors and bandwidths
- N9030B-550 - EDP - Enhanced display package; includes spectrogram, trace zoom, and zone span
- N9030B-550 - ESC - External source control for Keysight EXG, MXG, and PSG signal generators; supports external mixing; includes 3 BNC cables and 1 crossover LAN cable
- N9030B-550 - SSD - Additional removable solid-state drive (SSD); provides a fully-imaged, removable SSD in addition to the one installed in instruments
- N9030B-550 - SF1 - Exclude launch program; prevents the launching of Windows programs from the instrument application
- N9030B-550 - SF2 - Prohibit saving results; prevents instrument application from saving/recall of measurement results or user configurations to/from instrument's data storage
- N9030B-550 - CR3 - Second IF output; wideband IF out; center frequency depends on IF path; output on Aux IF connector at rear panel
- N9030B-550 - CRP - Arbitrary IF out; IF out 10 to 75 MHz (in 500 kHz steps); output on Aux IF connector at rear panel
- N9030B-550 - YAV - Y-axis video out; screen video (0-1 volt open circuit); log video and linear video
- N9030B-550 - ALV - Aux log video out; fast rise time video out; output on Aux IF connector
- N9030B-550 - UK6 - Commercial calibration certificate with test data
- N9030B-550 - AMG - Keysight Calibration + Uncertainties + Guardbanding (accredited cal); provides ISO 17025A accredited calibration from factory
- N9030B-550 - A6J - ANSI Z540-1-1994 Calibration; provides ANSI Z540 compliant calibration from factory
| Model | N9030B-550 |
|---|

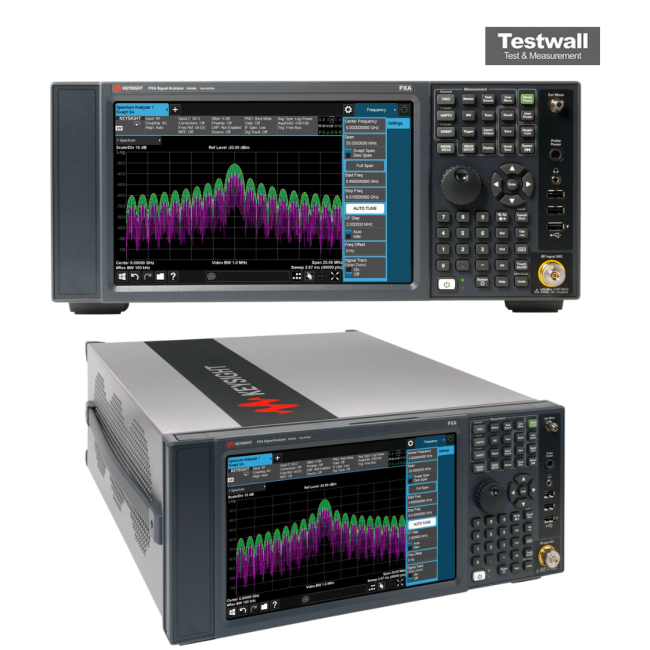

The Keysight (Agilent) N9030B-550 is engineered for mmWave and 5G R&D, offering a frequency range from 3 Hz to 50 GHz and up to 1 GHz real-time bandwidth with option. It provides low DANL, excellent noise figure, high-speed digital modulation support, and features like internal/external preselector bypass, time gating, and digital demodulation tools.
This spectrum analyzer is ideal for advanced signal analysis and high-speed test automation in development environments.
Testwall can supply the used Keysight (Agilent) N9030B-550, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9030B-550.
