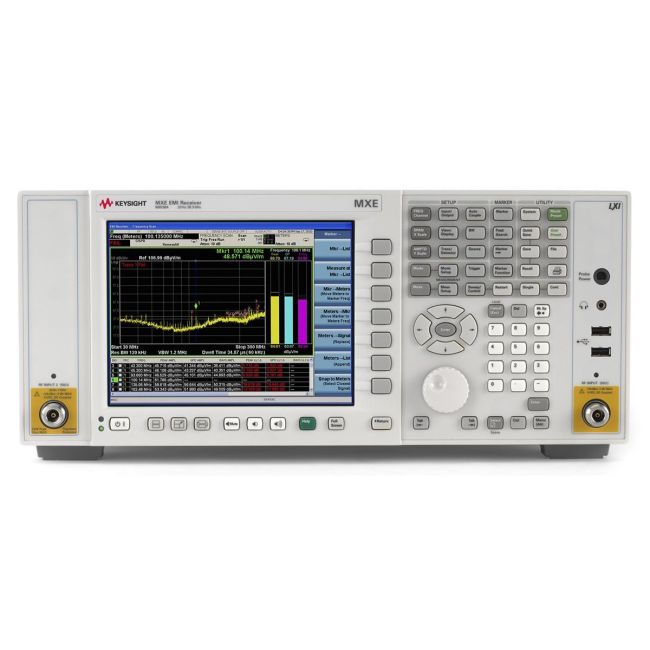

Keysight (Agilent) N9038A-526
| Attribute | Value |
|---|---|
| Frequency Range | 2 Hz to 26.5 GHz |
| Option | 526 (Frequency Extension to 26.5 GHz) |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (nominal, with preamp on) |
| Phase Noise | -130 dBc/Hz at 1 GHz carrier, 10 kHz offset (nominal) |
| Amplitude Accuracy | ±0.19 dB (nominal, at 50 MHz reference) |
| Dynamic Range | Up to 78 dB (TOI-based, third-order intermodulation) |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 Watt) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz (–3 dB bandwidths) |
| Instrument Type | MXE EMI Receiver |
Keysight Technologies N9038A-526 Options:
- N9038A-526 - 503 - Frequency range 3 Hz to 3.6 GHz (DC coupled)
- N9038A-526 - 508 - Frequency range 3 Hz to 8.4 GHz (DC coupled)
- N9038A-526 - 526 - Frequency range 3 Hz to 26.5 GHz (DC coupled)
- N9038A-526 - 544 - Frequency range 3 Hz to 44 GHz (DC coupled)
- N9038A-526 - B25 - 25 MHz analysis bandwidth
- N9038A-526 - B85 - 85 MHz analysis bandwidth
- N9038A-526 - C35 - RF Input 1 connector 3.5 mm male, 50 Ω
- N9038A-526 - RT1 - Real-Time Spectrum Analyzer (RTSA), up to 85 MHz real-time analysis bandwidth ≤ 3.6 GHz, up to 40 MHz > 3.6 GHz
- N9038A-526 - YAS - Analog out (BNC female rear panel connector)
| Model | N9038A-526 |
|---|
The Keysight (Agilent) N9038A-526 EMI Receiver offers a wide frequency range from 20 Hz to 26.5 GHz, enabling high-frequency electromagnetic interference testing with superior RF accuracy. It features full compliance with CISPR, MIL-STD, and DO-160 standards, and integrates a 160 MHz bandwidth for real-time debugging. The unit also includes advanced diagnostics, preselection filters, and optional preamplifiers.
Ideal for automotive, aerospace, and medical device industries, this EMI receiver accelerates testing through time-domain scanning and supports automatable test sequences for consistent, repeatable results.
Testwall can supply the used Keysight (Agilent) N9038A-526, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9038A-526.
