Keysight (Agilent)
Keysight (Agilent) N9040B-526
26.5 GHz UXA Signal Analyzer, Type N (f)
2 Hz to 26.5 GHz Frequency Range
-174 dBm/Hz (with preamplifier enabled) Displayed Average Noise Level (DANL)
-130 dBc/Hz at 1 GHz carrier, 10 kHz offset Phase Noise
±0.19 dB total uncertainty Amplitude Accuracy
Up to 510 MHz (with wideband option) Analysis Bandwidth
| Attribute | Value |
|---|---|
| Frequency Range | 2 Hz to 26.5 GHz |
| Displayed Average Noise Level (DANL) | -174 dBm/Hz (with preamplifier enabled) |
| Phase Noise | -130 dBc/Hz at 1 GHz carrier, 10 kHz offset |
| Amplitude Accuracy | ±0.19 dB total uncertainty |
| Analysis Bandwidth | Up to 510 MHz (with wideband option) |
| Third-Order Intercept (TOI) | +20 dBm (nominal) |
| Dynamic Range | Greater than 78 dB |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (with mechanical attenuator) |
| Instrument Series | UXA Signal Analyzer (X-Series) |
Keysight Technologies N9040B-526 Options:
- N9040B-526 - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9040B-526 - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9040B-526 - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9040B-526 - EA3 - Electronic attenuator up to 3.6 GHz; 1 dB steps, 0 to 24 dB
- N9040B-526 - B40 - 40 MHz analysis bandwidth
- N9040B-526 - B2X - 255 MHz analysis bandwidth
- N9040B-526 - B5X - 510 MHz analysis bandwidth
- N9040B-526 - C35 - APC 3.5 mm RF input connector on 26.5 GHz UXA
- N9040B-526 - FP2 - Fast power; accelerates power measurements such as ACPR; requires Option B40 or wider BW
- N9040B-526 - RT1 - Real-time analysis up to maximum available BW, basic detection; includes FMT, TQT; minimum 17.3 μs signal duration for 100% POI; requires N9040B-B2X or N9040B-B5X
- N9040B-526 - RT2 - Real-time analysis up to maximum available BW, optimum detection; includes FMT, TQT; minimum 3.517 μs signal duration for 100% POI; requires N9040B-B2X or N9040B-B5X
- N9040B-526 - RTS - Real-time I/Q data streaming; stream gap-free 16 bit I/Q data up to 255 MHz bandwidth; requires N9040B-RT1 or N9040B-RT2
- N9040B-526 - FT1 - Frequency mask trigger, basic detection; requires N9040B-B2X or N9040B-B5X
- N9040B-526 - FT2 - Frequency mask trigger, optimum detection; requires N9040B-B2X or N9040B-B5X
- N9040B-526 - EMC - Basic EMI precompliance; CISPR 16-1-1 detectors and bandwidths
- N9040B-526 - SSD - Additional removable solid-state drive (SSD)
- N9040B-526 - SF1 - Security features, exclude launch programs
- N9040B-526 - SF2 - Security features, prohibit saving results
- N9040B-526 - CRP - Arbitrary IF out; 10 to 75 MHz (in 500 kHz steps)
- N9040B-526 - ALV - Aux log video out; fast rise time video out
- N9040B-526 - YAV - Y-axis video out; screen video (0-1 volt open circuit); log video and linear video
- N9040B-526 - MSE - Mouse, USB interface
- N9040B-526 - KB2 - Compact keyboard, USB interface; US 65 keys
- N9040B-526 - DVR - USB DVD-ROM/CD-R/RW drive
- N9040B-526 - 1CM - Rack mount kit (light gray)
- N9040B-526 - 2CM - Rack mount kit (dark gray)
- N9040B-526 - 1CP - Rack mount kit with handles (light gray)
- N9040B-526 - 2CP - Rack mount kit with handles (dark gray)
- N9040B-526 - MLP - Minimum loss pad, 50 to 75 Ω (type-N to BNC); frequency range: 9 MHz to 2 GHz
- N9040B-526 - UK6 - Commercial calibration certificate with test data
- N9040B-526 - AMG - Keysight Calibration + Uncertainties + Guardbanding (accredited cal)
- N9040B-526 - A6J - ANSI Z540-1-1994 Calibration
- N9040B-526 - N9063C-1FP - Analog demodulation, fixed perpetual license
- N9040B-526 - N9063C-1TP - Analog demodulation, transportable perpetual license
- N9040B-526 - N9069C-3FP - Noise figure, fixed perpetual license (requires preamplifier)
- N9040B-526 - N9069C-3TP - Noise figure, transportable perpetual license (requires preamplifier)
- N9040B-526 - N9068C-2FP - Phase noise, fixed perpetual license
- N9040B-526 - N9068C-2TP - Phase noise, transportable perpetual license
- N9040B-526 - N9067C-1FP - Pulse, fixed perpetual license
- N9040B-526 - N9067C-1TP - Pulse, transportable perpetual license
- N9040B-526 - N9080C-1FP - LTE/LTE-Advanced FDD, fixed perpetual license
- N9040B-526 - N9080C-1TP - LTE/LTE-Advanced FDD, transportable perpetual license
- N9040B-526 - N9080C-2FP - LTE-Advanced FDD, fixed perpetual license; requires N9080C-1FP
- N9040B-526 - N9080C-2TP - LTE-Advanced FDD, transportable perpetual license; requires N9080C-1TP
- N9040B-526 - N9082C-1FP - LTE/LTE-Advanced TDD, fixed perpetual license
- N9040B-526 - N9082C-1TP - LTE/LTE-Advanced TDD, transportable perpetual license
- N9040B-526 - N9082C-2FP - LTE-Advanced TDD, fixed perpetual license; requires N9082C-1FP
- N9040B-526 - N9082C-2TP - LTE-Advanced TDD, transportable perpetual license; requires N9082C-1TP
- N9040B-526 - N9073C-1FP - W-CDMA, fixed perpetual license
- N9040B-526 - N9073C-1TP - W-CDMA, transportable perpetual license
- N9040B-526 - N9073C-2FP - HSPA measurements, fixed perpetual license; requires N9073C-1FP
- N9040B-526 - N9073C-2TP - HSPA measurements, transportable perpetual license; requires N9073C-1TP
- N9040B-526 - N9073C-3FP - HSPA+ measurements, fixed perpetual license; requires N9073C-1FP and N9073C-2FP
- N9040B-526 - N9073C-3TP - HSPA+ measurements, transportable perpetual license; requires N9073C-1TP and N9073C-2TP
- N9040B-526 - 89601B - 89600 vector signal analysis (VSA) software, transportable license
| Model | N9040B-526 |
|---|

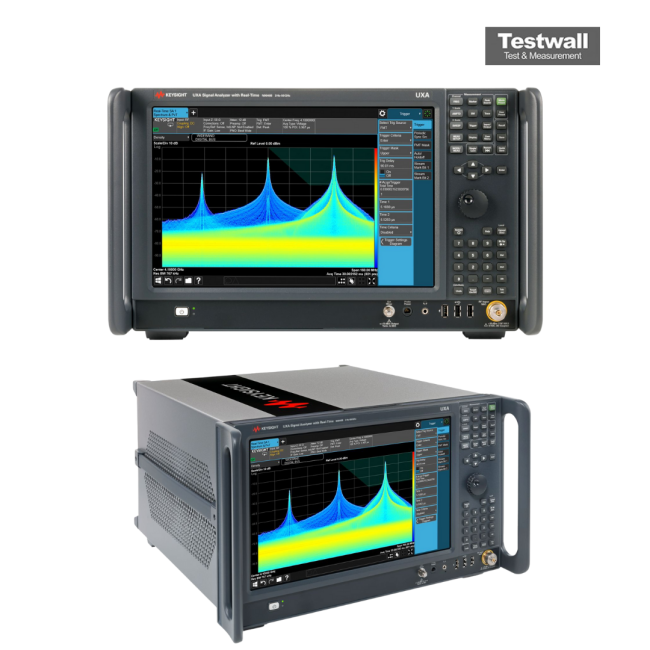

The Keysight (Agilent) N9040B-526 UXA Signal Analyzer operates from 2 Hz to 26.5 GHz, offering real-time bandwidth up to 1 GHz for advanced RF applications. It ensures precise signal analysis with low DANL and phase noise, and features a 14.1" multitouch display for intuitive control.
Ideal for 5G, satellite, radar, and EW testing, it supports external mixing for mmWave, and full 89600 VSA software integration.
Testwall can supply the used N9040B-526 UXA Signal Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the N9040B-526 UXA Signal Analyzer.
