Keysight (Agilent) N9340B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Display Resolution Bandwidth (RBW) | 100 Hz to 1 MHz (in 1-3-10 steps) |
| Displayed Average Noise Level (DANL) | -148 dBm (with preamplifier enabled) |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (at 1 GHz carrier) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Amplitude Accuracy | ±1.5 dB total amplitude accuracy |
| Display | 6.5-inch TFT color LCD, 640 x 480 resolution |
| Battery Life | Approximately 3 hours with internal lithium-ion battery |
| Weight | 3.1 kg (6.8 lb) with battery |
| Model | N9340B |
|---|

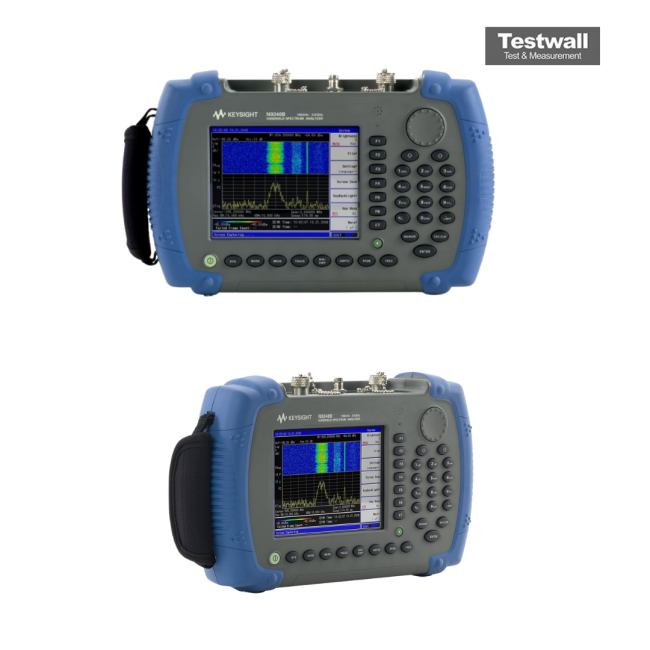

The Keysight (Agilent) N9340B Handheld Spectrum Analyzer offers frequency coverage from 100 kHz to 3 GHz, tunable to 9 kHz. It includes a built-in tracking generator, internal preamplifier option up to 3 GHz, and features such as -144 dBm DANL, ±0.5 dB amplitude accuracy, and a <0.1 s sweep time for full span. It also supports AM/FM and ASK/FSK modulation analysis and power measurements with U2000 Series USB sensors.
Engineered for precise field diagnostics, the N9340B enables fast spectrum monitoring, signal analysis, and interference detection with spectrogram playback and IBOC/xDSL assessments. Optional low-frequency performance enhancements are available.
Testwall can supply the used Keysight (Agilent) N9340B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9340B.
